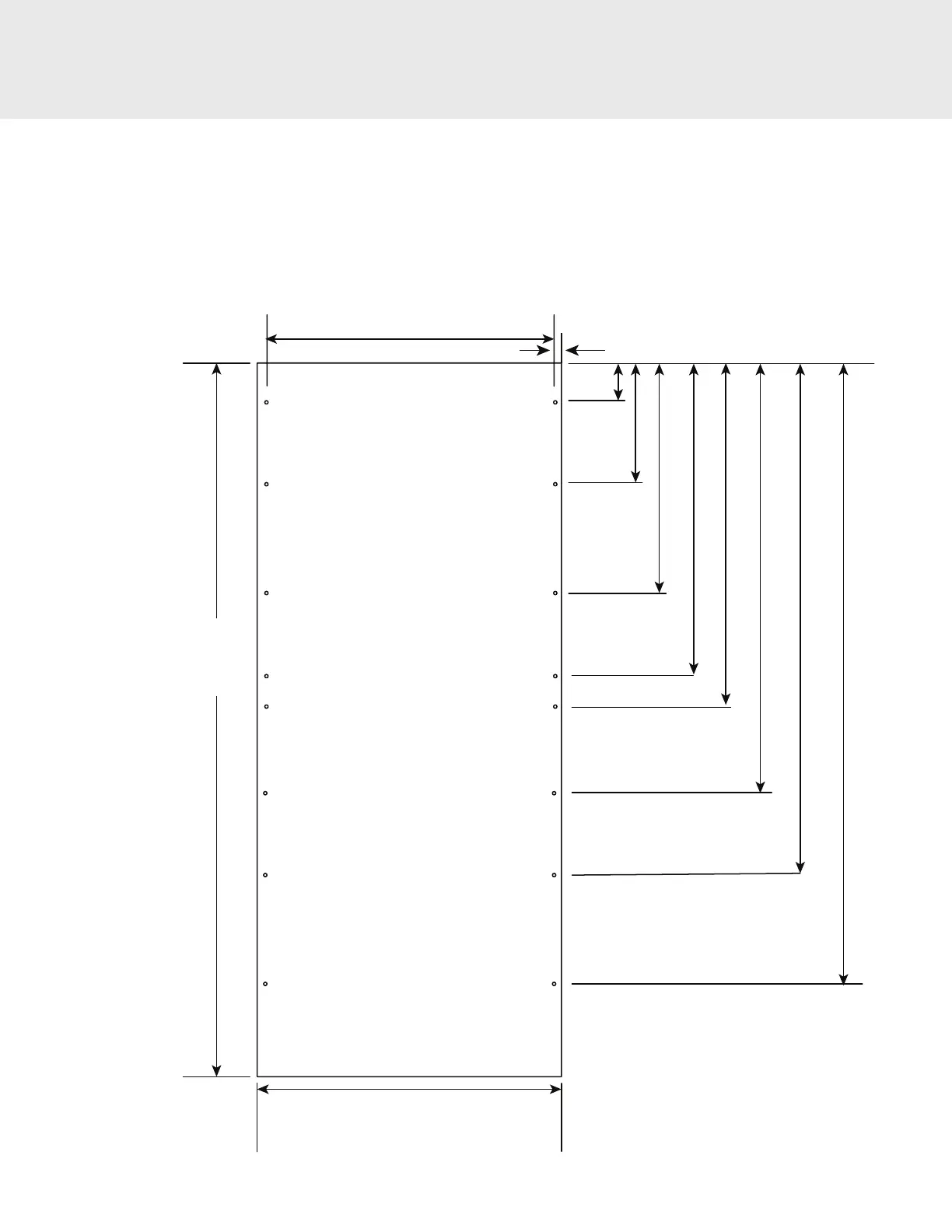

Optional Custom Front Panels - Dimensions
Note: Overlay panel must be dry, solid, straight one-piece panels. The use of multiple panel pieces to achieve the dimensions is not
recommended.
Maximum panel weight:
18" door panel - 28 lbs (12.6 kg)
24" door panel - 41 lbs (18.5 kg)
30" door panel - 54 lbs (24.5 kg)
36" door panel - 67 lbs (30.4 kg)
79-7/8”
(202.9 cm)
18” panel - 17-1/16” (43.3 cm)
24” panel - 23-1/16” (58.6 cm)
18” panel - 17-3/4” (45.1 cm)
24” panel - 23-3/4” (60.3 cm)
5-1/16”
(12.8 cm)
14-7/8”
(37.8 cm)
25-7/8”
(65.7 cm)
35-7/8”
(91.1 cm)
37-7/8”
(96.2 cm)
47-7/8”
(121.6 cm)
58-7/8”
(149.5 cm)
69-1/16”
(175.4 cm)
5-1/16”
(12.8 cm)
30” panel - 29-3/4” (75.5 cm)
36” panel - 35-3/4” (90.8 cm)
30” panel - 25-1/16” (73.8 cm)
36” panel - 35-1/16” (85.0 cm)
Custom Panel - hole locations
