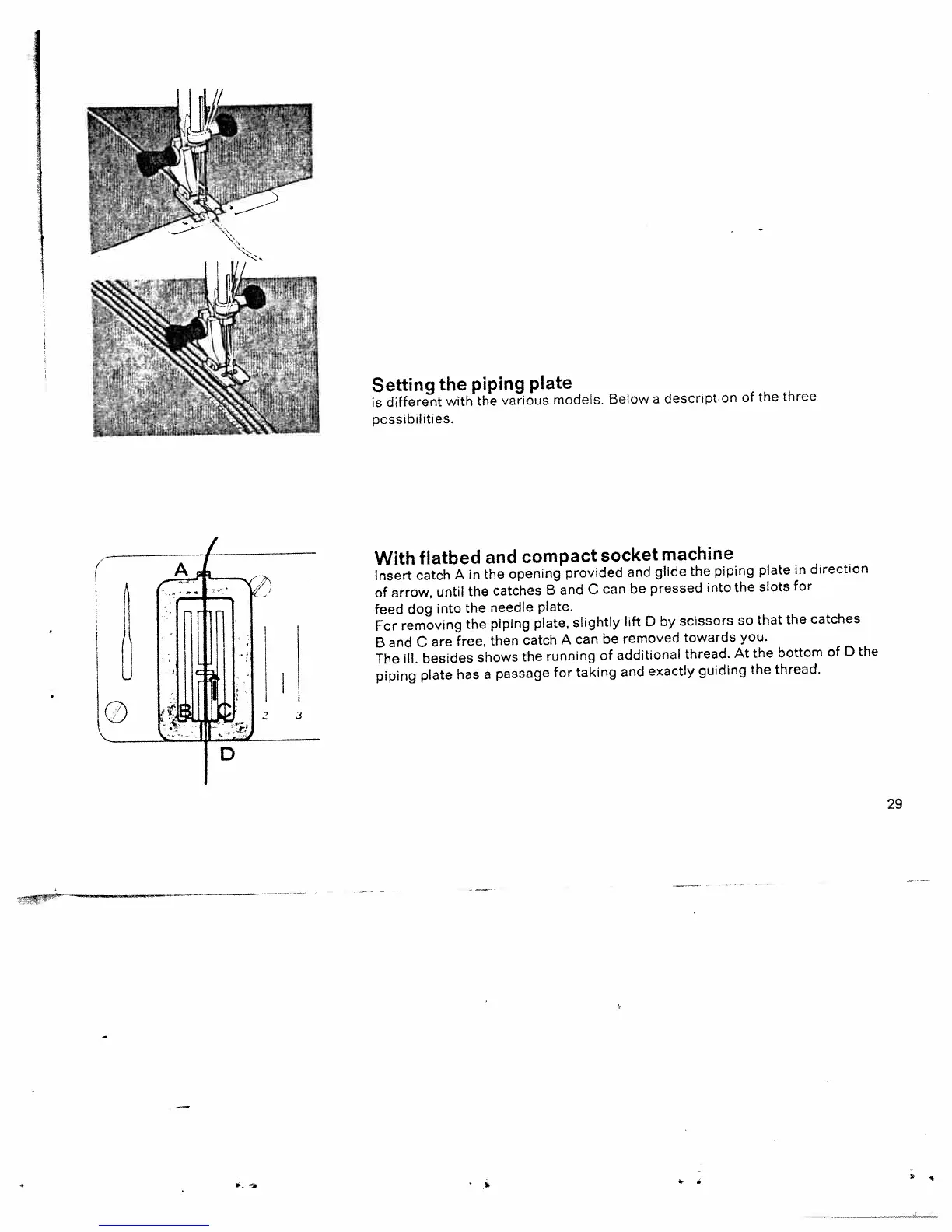

Settingthepipingplate
is
different
with
the
various
models.
Below a
description
of
the
three
possibilities.
With
flatbed
and
compact
socket
machine
Insert
catch
A
in
the
opening
provided
and
glide
the
piping
plate
in
direction
of
arrow,
until
the
catches
B
and C
can
be
pressed
into
the
slots
for
feed
dog
into
the
needle
plate.
For
removing
the
piping
plate,
slightly
lift D
by
scissors
so
that
the catches
B
and C
are
free,
then
catch
A
can
be
removed
towards
you.
The
ill, besides
shows
the
running
of
additional
thread.
At
the bottom
of D
the
piping
plate
has a
passage
for
taking
and
exactly
guiding
the
thread.
