Page 11For technical questions, please call 1-888-866-5797.59531
SAFETYOPERATIONMAINTENANCE SETUP

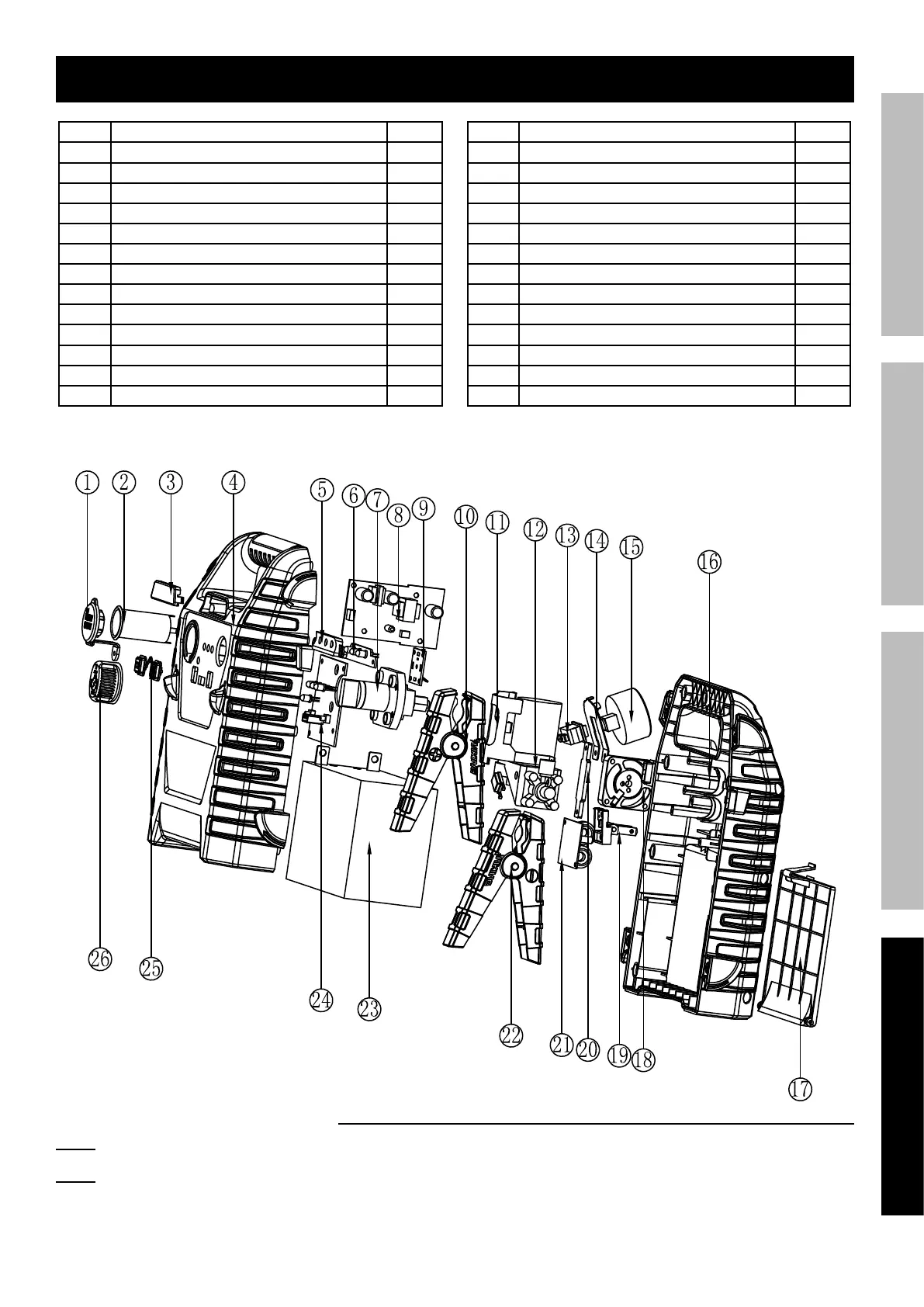

Parts List and Diagram
Part Description Qty
1 12V Auxiliary Socket Cover 1
2
12V Auxiliary Socket 1
3
Lighting Cover 1
4
Front Housing 1
5
Snoot 1
6
LED Light Plate 1
7
Knob Switch Set 1
8
Charger PCB 1
9
Auxiliary Socket PCB 1
10
Positive Clamp 1
11
Motor Fastener 1
12
Air Compressor 1
13
Switch 1
Part Description Qty
14 Pressure Gauge Fastener 1
15
Pressure Gauge 1
16 Back Housing 1
17 Back Cover 1
18 Fan 1
19 Plug 1
20 Fan Fastener 1
21 Air Compressor PCB 1
22 Negative Clamp 1
23 Battery 1
24 Main Control PCB 1
25 Button 1
26 Knob Switch Cover 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts. Internal parts are not user-serviceable
and are not available. Specify UPC 193175473479 when ordering parts.
