Viking C-1000B - Features Overview

Features Overview
EARTH
GND
C.O. LINE
INPUT
OUT TO
PHONES
KEYLESS
C.C. INPUT
DOOR
BOX 1
DOORBOX
13VAC PWR
DOOR
BOX 2
N.O. COM N.C.
DOOR STRIKE 1
SIG GND
VIDEO 1 IN
SIG GND
VIDEO 2 IN
SIG GND
VIDEO OUT
N.O. COM N.C.
DOOR STRIKE 2
TALK BATTERY
OFF ON
PWR
ON
1 2 3
COM N.O. N.C. - - - - AUX.
CONTACT
OUTPUT

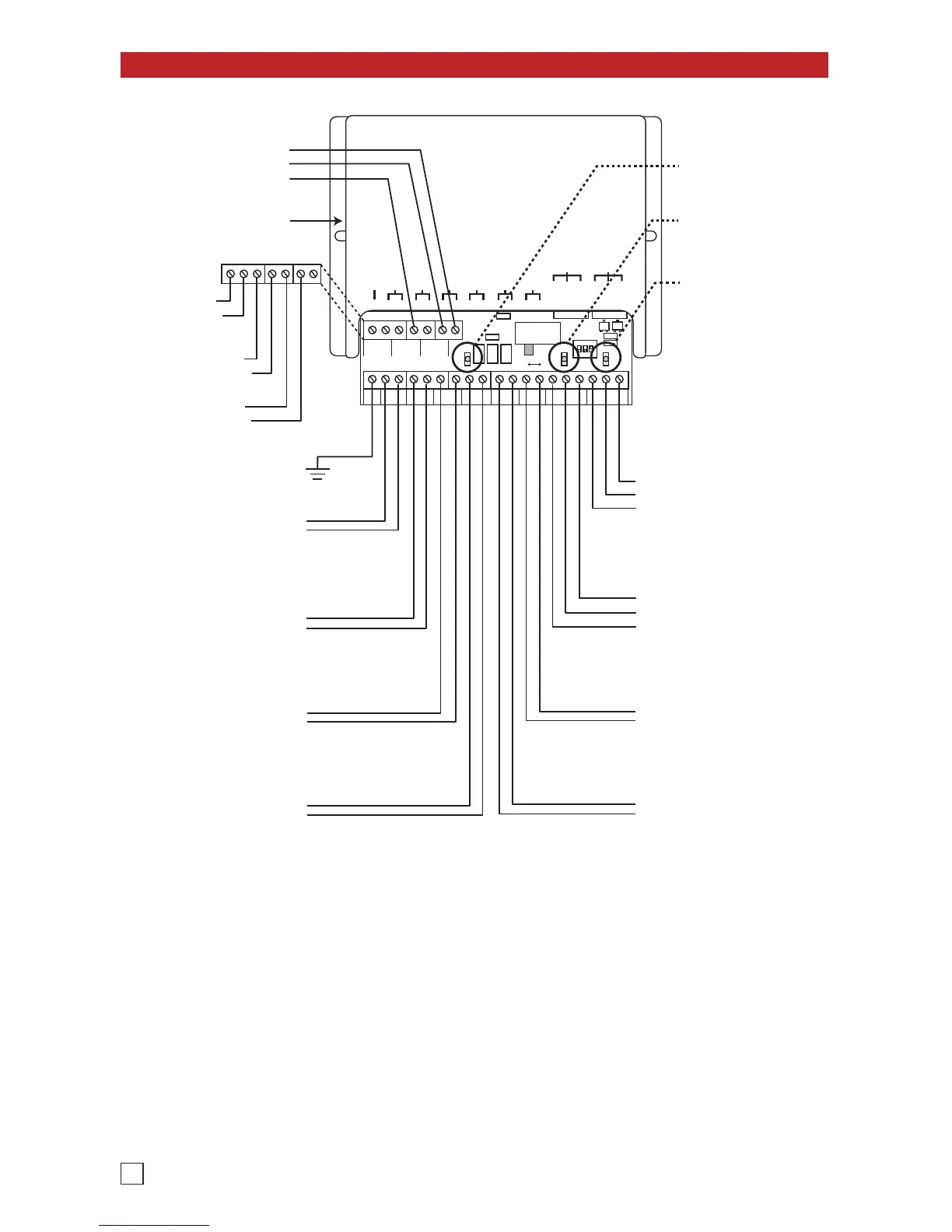

* Earth Ground
C.O./Phone Line Input
Out to Telephones
Keyless Entry/Postal Lock
Contact Closure Input
Door Box 1 Line Input
Door Strike 1
Contact Output
Door Box 2 Line Input
Doorbox 13V AC
Power Output
Door Strike 2
Contact Output
N.C.
COM
N.O.
N.C.
COM
N.O.
D.S.1
D.S.2
CCTV
Video
1 Input
CCTV Video
2 Input
CCTV Video
Output
Signal
Ground
Signal
Ground
Signal
Ground
N.C.
N.O.
COM
Auxiliary
Contact Output
Power LED: Lights
while unit is powered.
Door Strike 1 LED:
Lights while doorstrike
1 relay is activated.
Door Strike 2 LED:
Lights while doorstrike
2 relay is activated.
Power Input
(13.8VAC @ 1.25A
adapter included)
VIKING
©
VIKING
ELECTRONICS
HUDSON,
WI
54016
DOOR ENTRY / CCTV VIDEO
CONTROLLER
POWER 13.8V AC
MODEL C-1000B
PHONE LINE
INPUT
EARTH
GND
21 3 4 5 14 15 16
LINE OUT
TO PHONES
67
KEYLESS CONTACT
CLOSURE INPUT
DOORBOX 1
DOORBOX 2
891011
DOORBOX
PWR OUTPUT
12 13
DOOR STRIKE 1
N.O.
COM
N.C.
17 18 19
DOOR STRIKE 2
N.O.
COM
N.C.
2
* Note: To increase surge protection, fasten a wire from the screw terminal to Earth Ground (grounding rod, water
pipe, etc.)
