Viking Designer Series User Manual

608
VUD 141 DISHWASHER
The vent solenoid is adjustable by approximately 1/4 “. Don’t adjust beyond the 1/4".
Drying time is 12 minutes; however the heating element doesn’t stay n all the time. The T-stat sets
the temperature to 140 degrees or 165 degrees depending on the temperature control setting and will
cycle during the drying cycle.

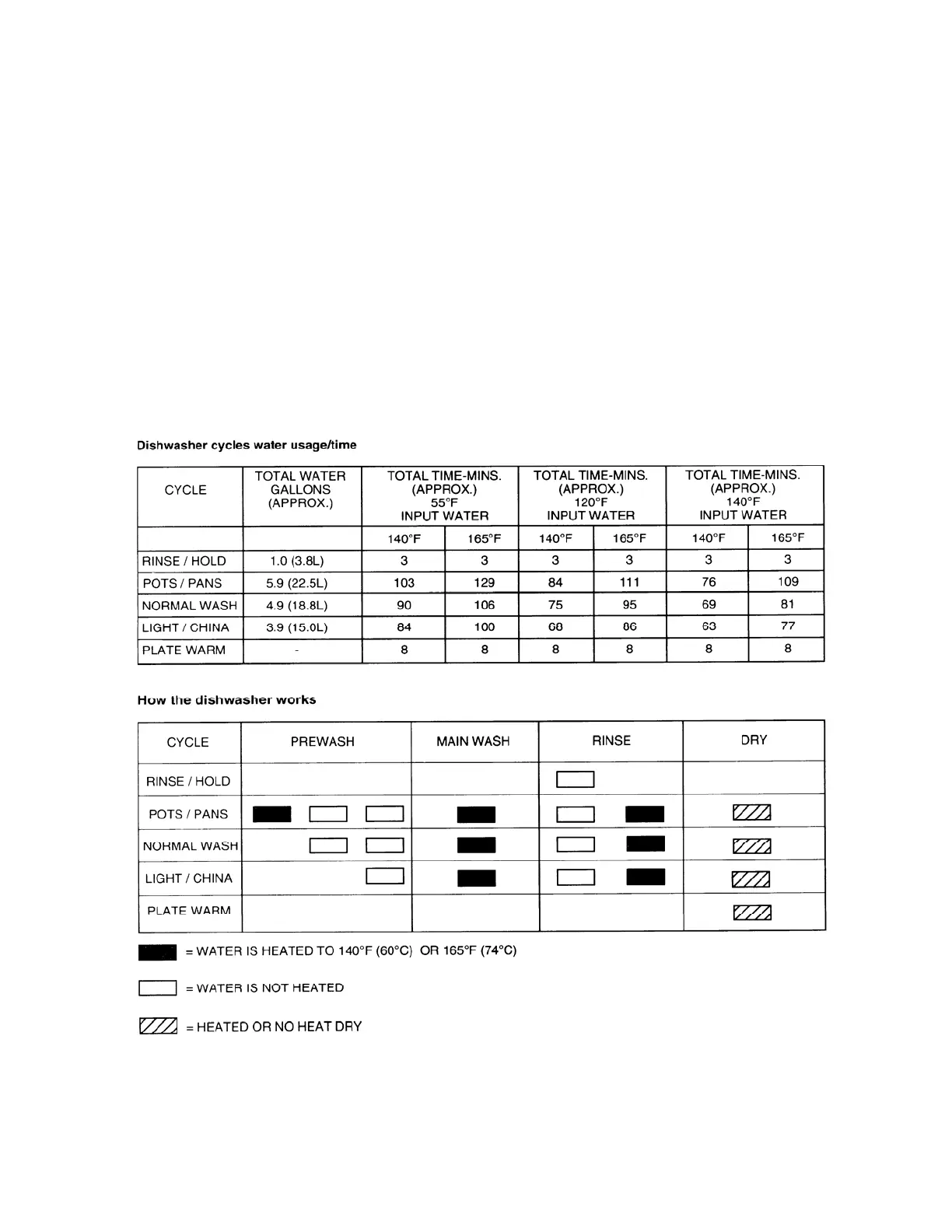

Normal wash cycle will be approximately 1.5 hours when the input water is less than 145 degrees.
Normal wash cycle will be approximately 3/4 hour when the input water is over 145 degrees.
The water is heated while recirculating.

Viking Designer Series Specifications

General

Type	Built-In
Capacity	14 place settings
Energy Star Certified	Yes
Tub Material	Stainless Steel
Stainless Steel Interior	Yes
Adjustable Upper Rack	Yes
Water Consumption	3.5 gallons
Dimensions	34-1/2" H x 23-7/8" W x 24" D
