This manual is to be used by qualified appliance technicians only.
Viking does not assume any responsibility for property damage
or personal injury for improper service procedures done by an
unqualified person.
Service
Manual

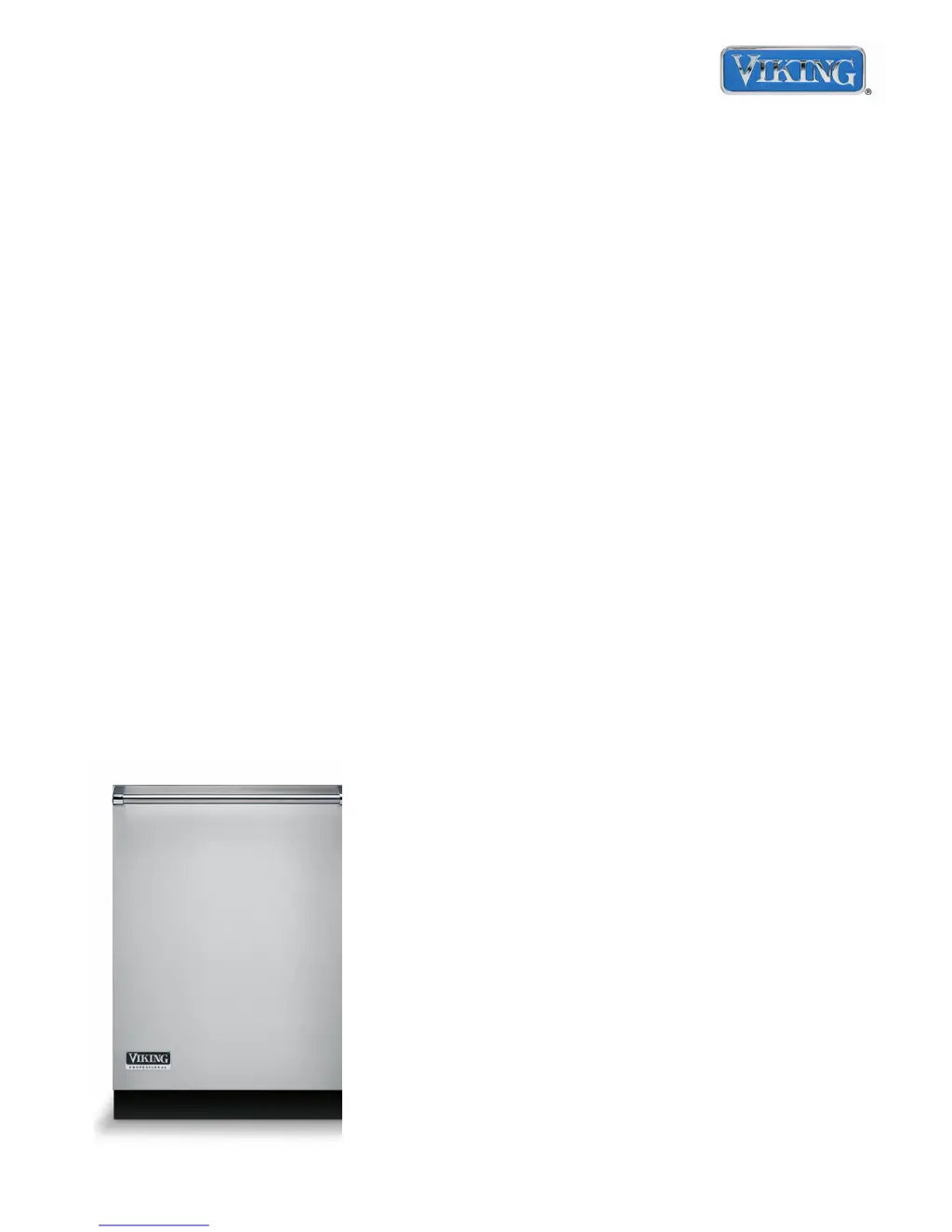

Built-In
Dishwasher
This Base Manual covers general and
specific information including, but not
limited to the following models:
VDB200
10VPS4_VDB200_dishwasher.indd 1 5/28/10 11:11:09 AM

Table of Contents

Questions and Answers

  • C
    Corey PetersonAug 17, 2025
    Why my Viking Dishwasher does not start?
    • M
      Mike BruceAug 17, 2025
      Your Viking dishwasher might not be starting due to several reasons. First, ensure that the door is completely closed and check the door switch. If the 'Delay Start' option is activated, turn it off. Also, verify that the water supply is properly connected and the water valve is functioning correctly. Check the power cord to ensure it's connected securely. Finally, inspect the breaker to see if a fuse has blown.
  • A
    Andrew PowellAug 19, 2025
    What to do if my Viking Dishwasher is not draining?
    • J
      James CoffeyAug 20, 2025
      If your Viking dishwasher isn't draining, check the drain hose for any obstructions or kinks. Additionally, verify that there are no obstructions in the drain pump.
  • J
    Jamie HarrisonAug 22, 2025
    How to fix spotting and filming on dishes in my Viking VDB200?
    • L
      Loretta WigginsAug 22, 2025
      Spotting and filming on dishes from your Viking dishwasher can be due to several factors. Check the water hardness. Inspect the filters for any obstructions. Ensure that you add rinse aid and check the dispenser. Also, verify the amount and quality of dishwasher detergent you're using, making sure it's not old or caked.
  • K
    Kyle MorrowAug 25, 2025
    Why are dishes not dry in my Viking VDB200 Dishwasher?
    • T
      Tracy ThomasAug 26, 2025
      If your dishes are not drying in your Viking dishwasher, ensure there is rinse aid in the dispenser. Verify that the dishwasher is loaded properly to allow for adequate water circulation. Also, check that the water temperature is correct and that the heater is functioning.
  • J
    Jennifer FergusonAug 27, 2025
    Why are there small particles deposited on items in my Viking Dishwasher?
    • B
      Bradley BradleyAug 27, 2025
      If you notice small particles on items after a wash cycle in your Viking dishwasher, try using fresh detergent. Ensure that the wash arm can turn freely without any obstruction due to improper loading. Also, verify that the filters are free of any obstructions.
  • S
    shane78Aug 30, 2025
    Why is detergent left in the detergent compartment of my Viking VDB200 Dishwasher?
    • M
      Miranda AndersonAug 31, 2025
      If detergent remains in the compartment of your Viking dishwasher, check for any obstructions blocking the compartment. Make sure you are using new detergent, as old detergent can clump and not dispense properly. Also, verify that the dispenser is opening correctly during the wash cycle.
  • L
    Logan WalkerSep 2, 2025
    What to do if my Viking VDB200 will not fill?
    • J
      Joseph ChavezSep 2, 2025
      If your Viking dishwasher isn't filling, make sure the door is completely closed and check the door switch. Remember to press start and shut the door within four seconds. Check the water valve for any obstructions and ensure the water supply line is properly connected.
  • T
    tarahansenSep 5, 2025
    Why are wash arms not rotating freely in my Viking VDB200?
    • J
      John NortonSep 5, 2025
      If the wash arms in your Viking dishwasher aren't rotating freely, first remove any obstructions that may be blocking their movement. Also, check the water pressure to ensure it's sufficient for proper rotation.
  • K
    Karen DuranSep 8, 2025
    Why is there excessive foam in my Viking VDB200?
    • C
      Courtney GriffinSep 8, 2025
      Excessive foam in your Viking dishwasher is likely due to using improper detergent. Make sure you are only using dishwasher detergent.
  • A
    Amanda MorganSep 10, 2025
    What to do if water backs up in sink when Viking VDB200 drains?
    • L
      laurenharrisSep 12, 2025
      If water backs up in your sink when your Viking dishwasher drains, check the food waste disposer for any obstructions in the trap at the sink.

Summary

Important Information

General Information

General Warnings

Details critical safety warnings regarding water supply, drain, and electrical connections.

Specific Hazard Warnings

Highlights specific hazards like electrical shock, excessive weight, and tip-over risks.

Operation

Service Diagnostics and Procedures

Entering Diagnostic Mode

Step-by-step guide to activate the diagnostic test mode for troubleshooting.

Fail Codes

Lists error codes displayed by the unit and their corresponding probable causes and corrections.

Control Board Test Points

Table detailing test points on the control board for diagnosing components.

Control Board Component Diagnosis

Diagnosing door switch, dispenser, circulation motor, and fill valve via control board test points.

Drain Motor and Wash Diverter Diagnosis

Diagnosing drain motor, wash diverter, and moisture sensor via control board.

Sensor and UI Port Diagnosis

Diagnosing water temperature sensor and user interface port via control board.

Water Heater Diagnosis

Diagnosing the water heater via the control board and diagnostic mode.

Control Board Disassembly

Detailed steps for safely removing the main control board from the unit.

Troubleshooting Guide

Provides common problems, their probable causes, and recommended corrective actions.

Wiring and Schematics

Viking VDB200 Specifications

General IconGeneral
TypeBuilt-In
Energy Star RatedYes
Half Load OptionYes
Control TypeElectronic
Delay StartYes
