Viking VDB200 - Base Unit Parts Location

© 2010 Viking Preferred Service
29
Service Diagnostics and Procedures

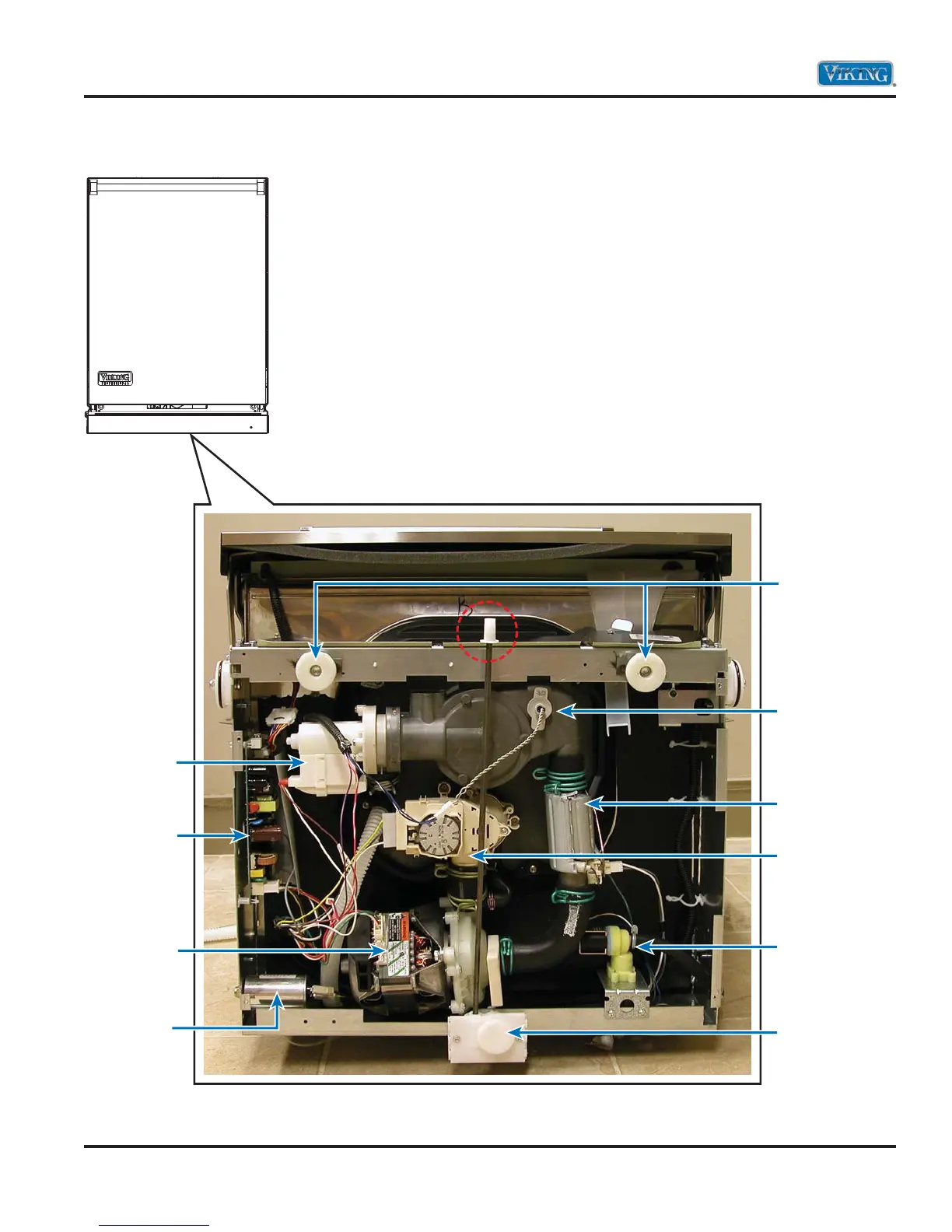

Parts Location–Base Unit
Wash Temp
Sensor
Front
Leveling Legs
Water
Heater
Wash
Diverter
Drain Motor
Control
Board
Circulation
Motor
Capacitor
Fill Valve
Rear
Leveling Leg
Adjusted
from the front
(Red dotted line)
Bottom View
