© 2010 Viking Preferred Service
21
Service Diagnostics and Procedures–Disassembly
Door Disassembly
In order to gain access to the internal components
of the door, which includes the detergent dispenser,
start switch, door interlock, and the user interface,
you will need to remove the front door panel and
the control panel.
Outer Door Removal
In order to gain access to the inner door assembly
and detergent dispenser, you must first remove
the outer stainless steel or wood door panel. Open
the door to a complete 90° angle to expose the
securing screws. Using a T15 TORX® screwdriver,
remove the ten screws.

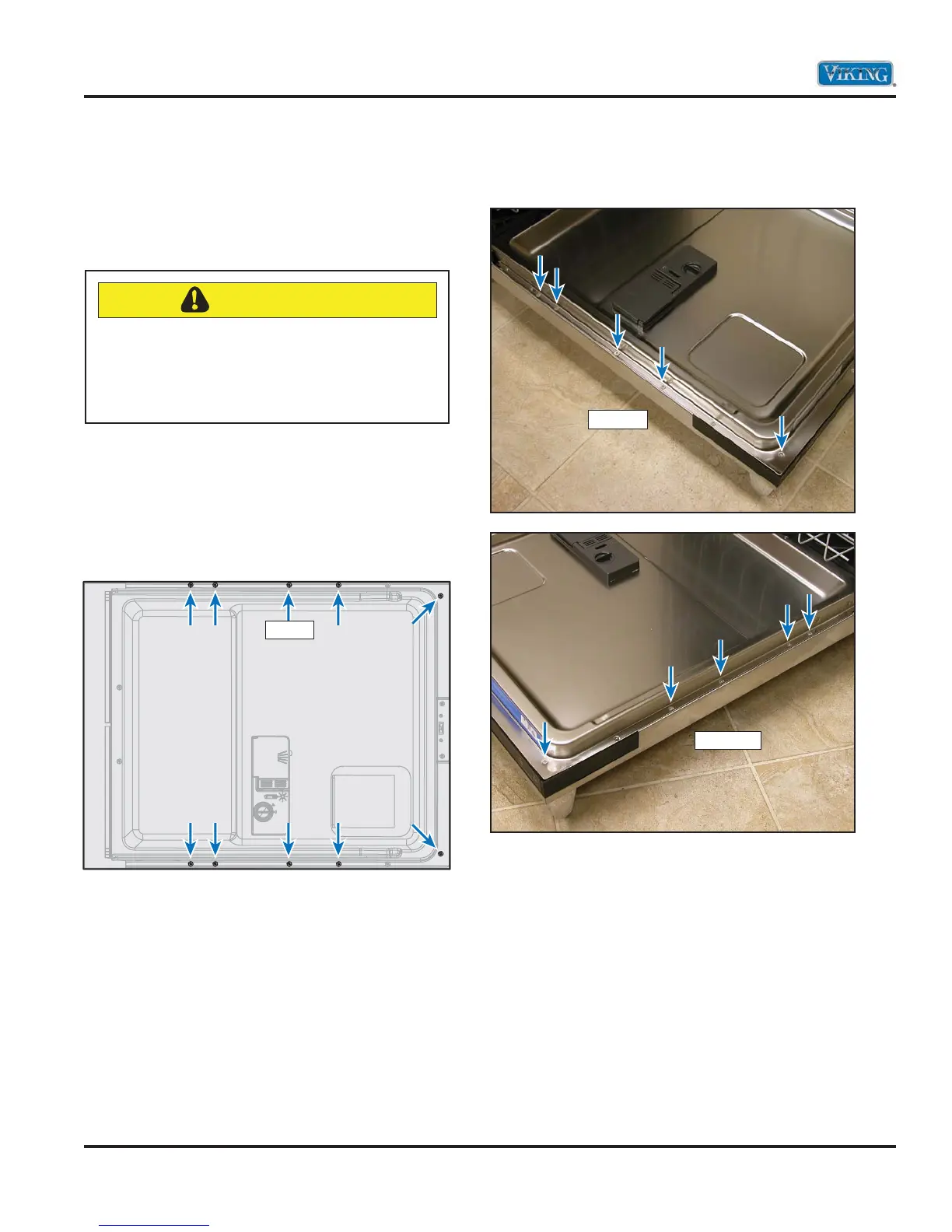

The following images show the actual location of
the screws.
Note: When the outer door has been removed,
make sure to store it in a secure area until
reassembled, so it does not become scratched or
damaged.
CAUTION
Make sure that the outer door is held in place
while removing the screw so that the door
does not fall and become dented or scratched.
The inner door assembly is sharp and could
result in minor personal injury.
Screws
Left Side
Right Side
