Service Diagnostics and Procedures
Door Hinge Disassembly

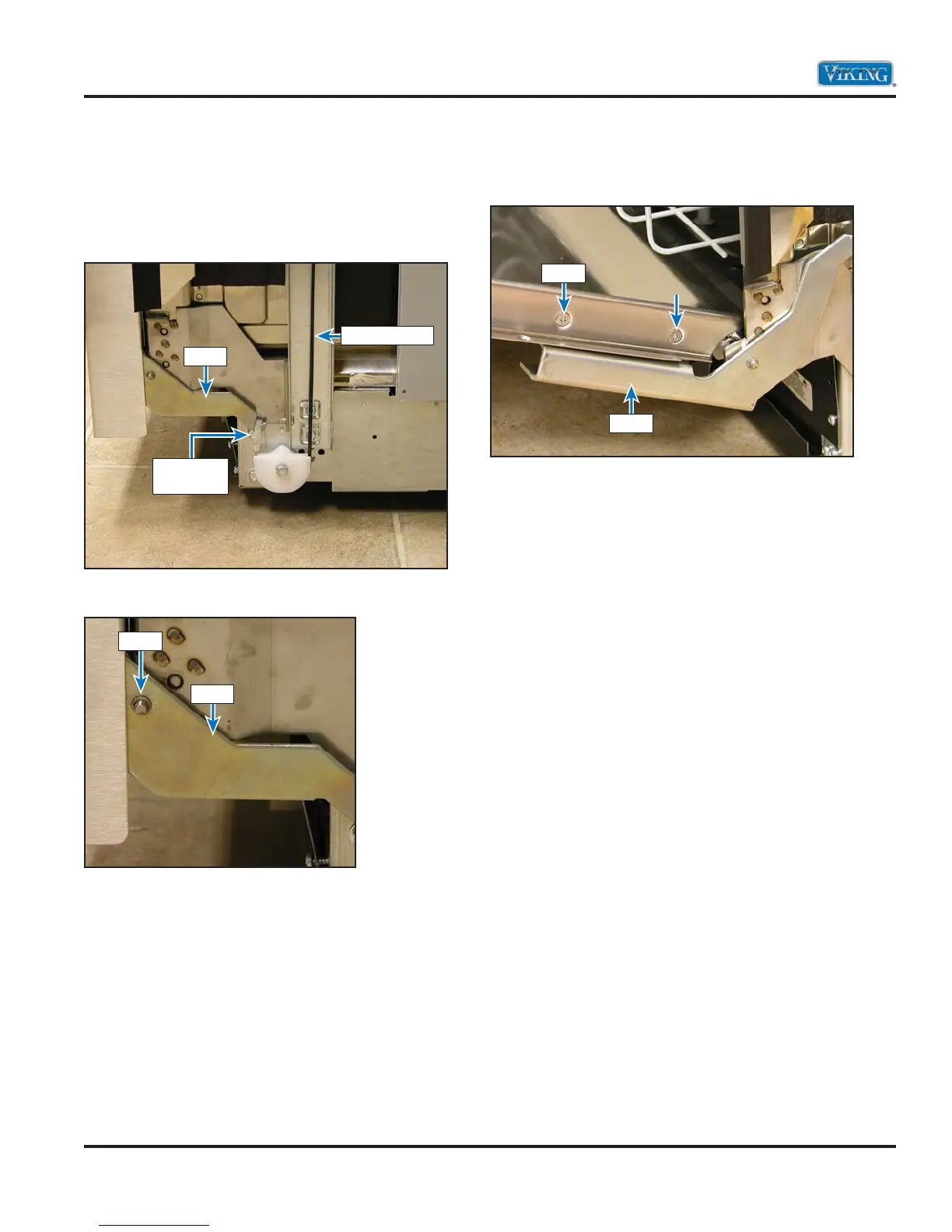

To access door hinge, slide unit out of the
installation. Next remove the outer door panel (see
Outer Door Removal section, page 21).
Disconnect tension cable from hinge.
Remove C-Clip securing hinge.
Note: Remove C-Clip slowly (clip has spring and
can dislodge).
Remove two screws that hold each hinge to the
inner door. Repair or replace the hinge as necessary.
Reverse the procedure to reinstall the hinge.
Hinge
Hinge
Connection
Tension Cable
Hinge
C-Clip
Hinge
Screw
