Viking DESO105 - Single Oven Installation Dimensions; In Wall Cabinet Cutout; Undercounter Cutout

3

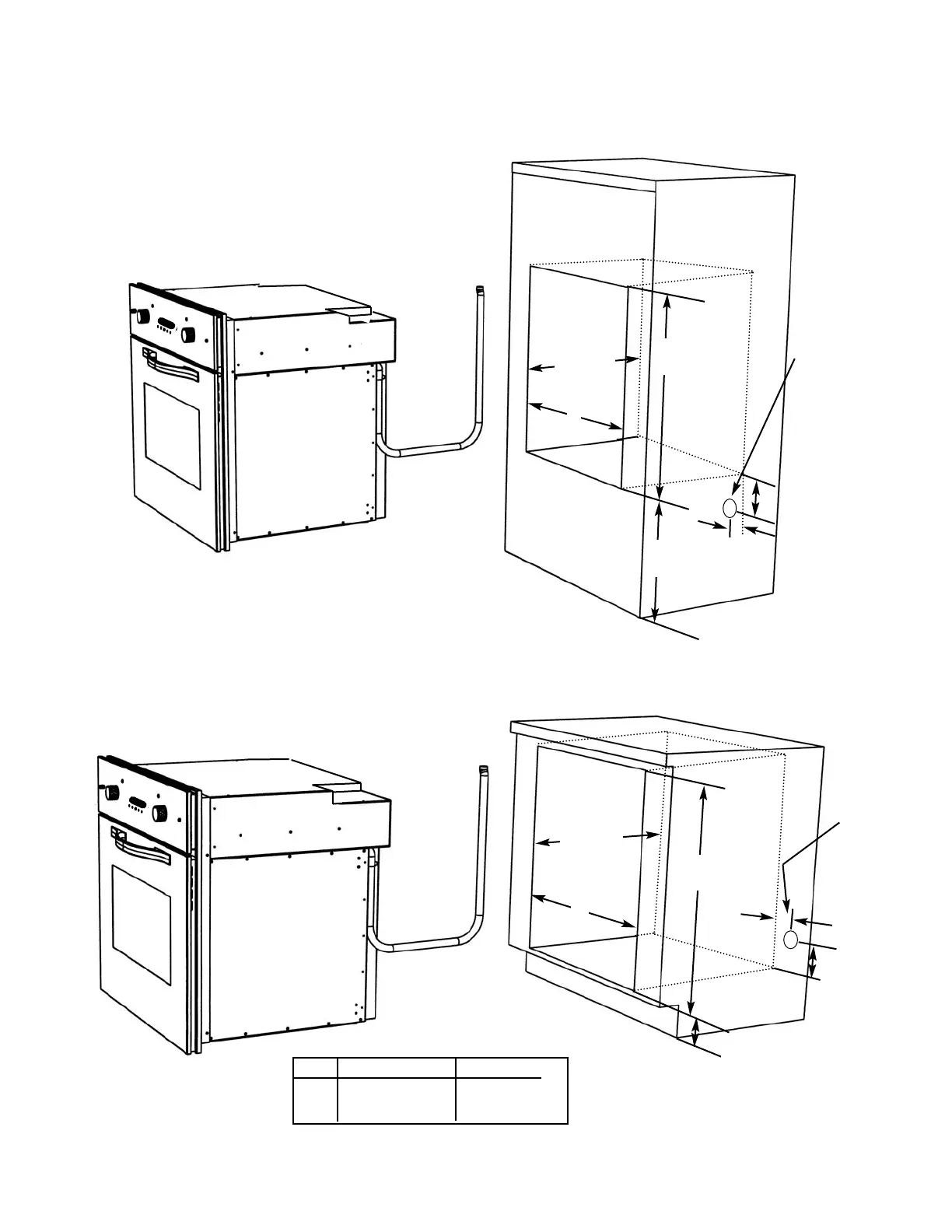

SINGLE OVEN CUTOUT DIMENSIONS
Undercounter Without Cooktop
DESO171/175 DESO101/105
A 25” 28”
(63.5 cm) (71.1 cm)
24”
(61.0 cm)
A
4”
(10.2 cm)
5” Min.
(12.7 cm)
17”
(43.2 cm)
28 3/8”
(72.1 cm)
Junction
Box
Location
24”
(61.0 cm)
A
28 3/8”
(72.1 cm)
4 3/4” Max.
(12.1 cm)
5” Min.
(12.7 cm)
4”
(10.2 cm)
Junction
Box
Location
NOTE: Cabinet bottom must be perpendicular to the front face of the cabinet.
In Wall Cabinet
