VIKING TECHNICAL SUPPORT 1.800.908.0884
29

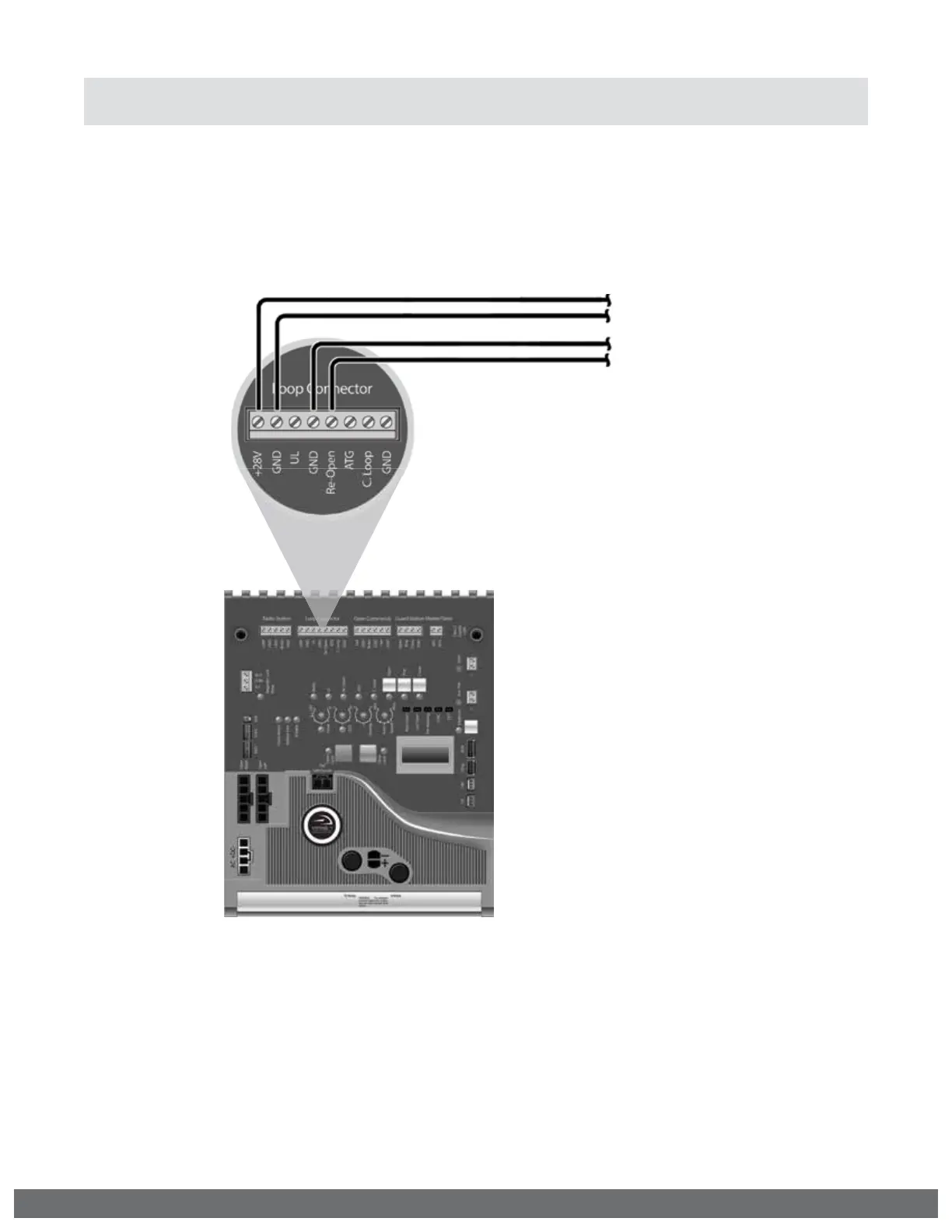

Re-Open (Monitored Input Terminal)
The “Re-Open” input terminal protects against entrapment in the closing direction
ONLY. Input will reverse the gate all the way to the Open Limit when a connected
device it triggered. see pages 10-11.
ACCESSORY CONNECTIONS
! TECHNICAL TIP: For more information
regarding accessory connections
to the control board and individual
input terminal functions, refer to
“Appendix (A)” pages 42-43.
! Cable use in Class 2 circuit to an external device shall be type CL2, CL2P, CL2R, CL2X or
other cable with equivalent or better electrical, mechanical, and fl ammability ratings.
Check for proper operation:
•
When a connected device is
triggered, the “Re-Open” LED
will illuminate to indicate an
input. The “Stop” LED will also
illuminate if there is more than
one Monitored device connected.
•
It is important to note that
if more than one Monitored
device is connected to this
terminal, the “Re-Open” LED
will be illuminated. This alone is
inconsequential.
•
The “Stop” LED will flash if there
is a failure with at least one
Monitored entrapment sensor
and the gate operator will be
rendered inoperable.
To Next Page
