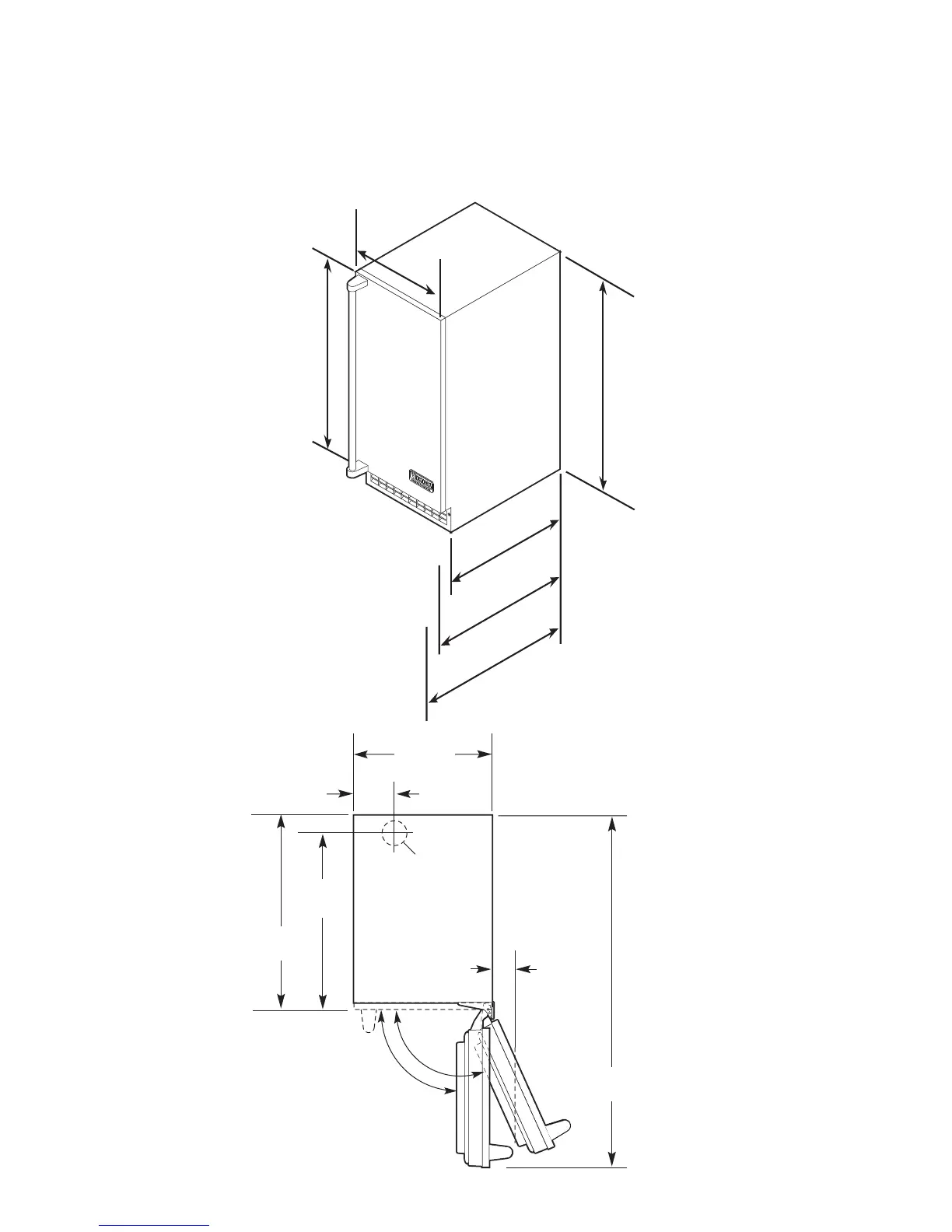

DIMENSIONS (PROFESSIONAL)
14-3/4”
(37.5 cm)
3-7/8”
(9.8 cm)
Floor drain
access hole
90.0°
115.0°
37-3/4”
(95.9 cm)
2-1/2”
(6.4 cm)
22-3/4”
(57.8 cm)
20-3/8”
(51.6 cm)
Dimensions
FGIM/FPIM
w/ Professional
door panel
Door Swing
19-1/4”
(48.9 cm)
22-3/4”
(57.8 cm)
25-1/4”
(64.1 cm)
33-7/8”
(86.0 cm)
min.
to
34-7/8”
(88.6 cm)
max.
14-7/8”
(37.8 cm)
14-7/8”
(37.8 cm)
14-7/8”
(37.8 cm)
30-5/16”
(77.0 cm)
