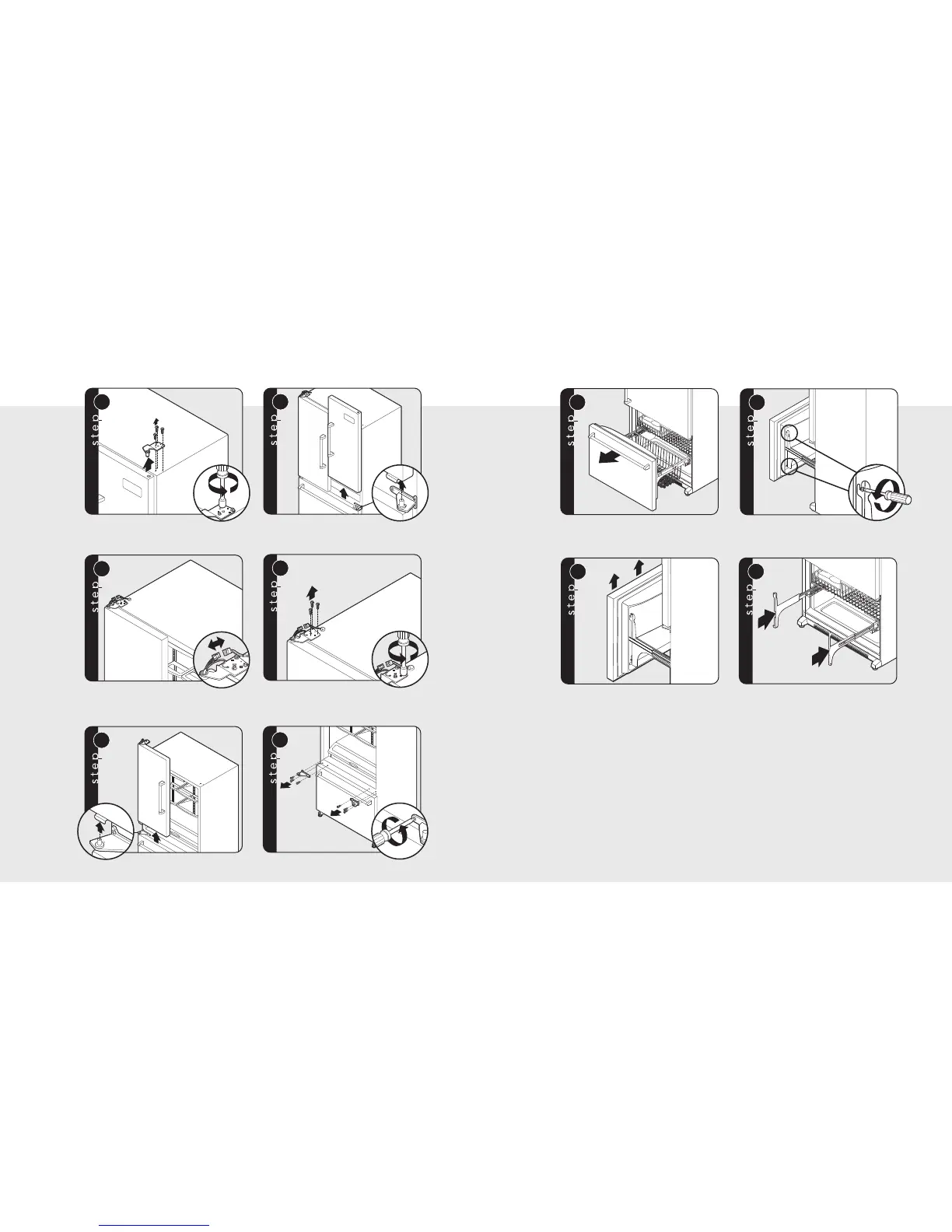

Pull drawer open to full extension.
Loosen the four screws attaching the drawer glides to
the drawer front on both sides.
NOTE: Loosen screws three to four turns. Keep the
screws in the drawer front.
Lift drawer front upward and off the screws.
Push both rails back in.
Freezer Drawer Removal (Bottom-Mount)
18
Unscrew 5/16” hex head screws from left top hinge.
Retain all screws for later use.
Lift left side refrigerator door, along with top hinge,
from center hinge pin.
Remove screws to remove right and left hinges.
Retain all screws for later use.
Lift right side refrigerator door from center hinge pin.
Remove door closure from center hinge pin on the
right side. Retain for later use.
Disconnect wire harness on top of left side refrigerator door
top hinge. Release two-pin connector by pressing junction
point with a flat blade screwdriver or fingernail. Green ground
wire remains attached to the hinge.
Unscrew 5/16” hex head screws from right top hinge
and remove hinge. Retain all screws for later use.
To Next Page
