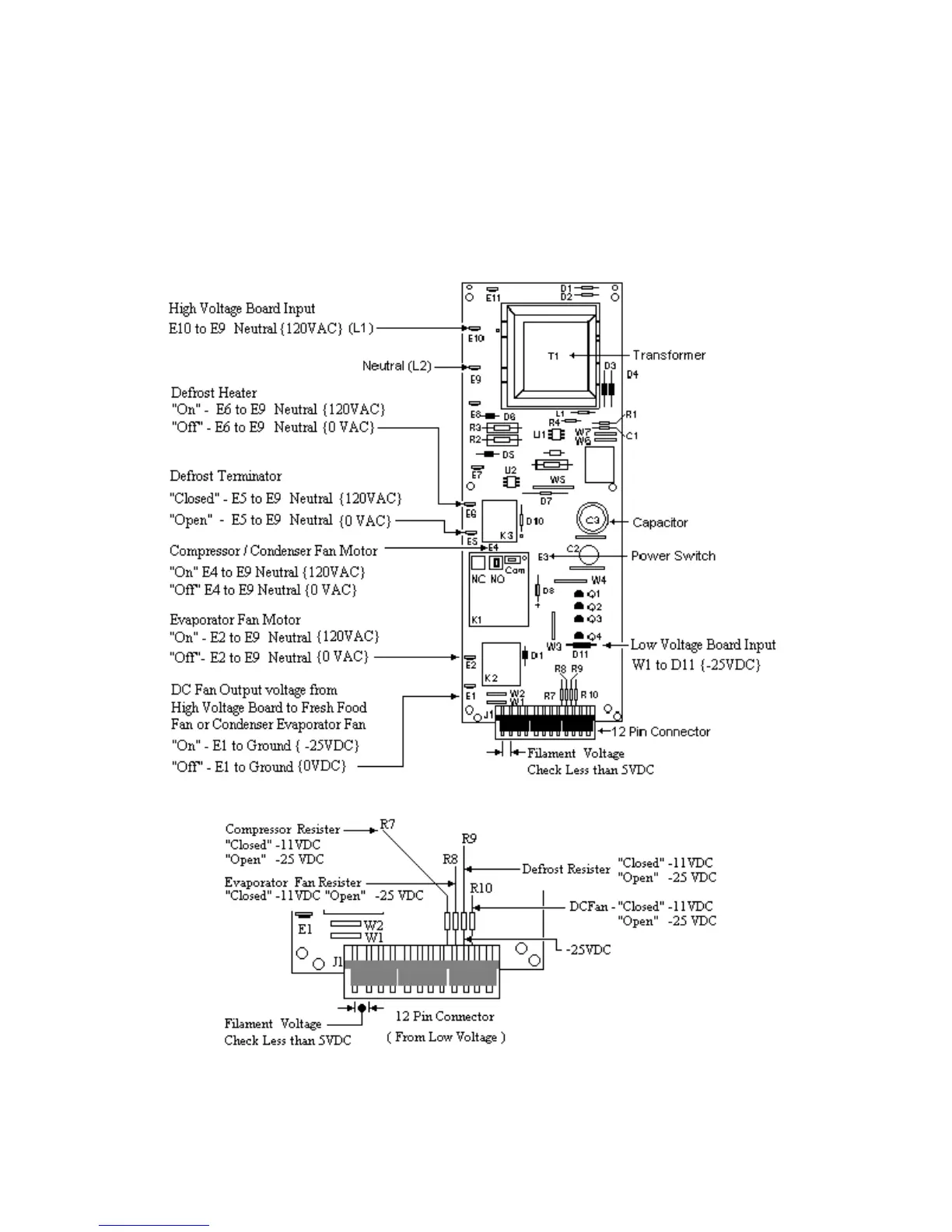

Viking VCSB481 - Electronic Functional Description: Control Components; High Voltage Board Input and Defrost Heater Control; Motor Control and Fan Operation; DC Fan Output and Resistor Functions

16
Electronic Functional Description
WARNING: TO AVOID ELECTRICAL SHOCK WHICH CAN CAUSE SEVERE INJURY OF DEATH,
DISCONNECT POWER TO REFRIGERATOR USING POWER SWIDTCH BEFORE SERVICING.
WIRES REMOVED DURING DISASSEMBLY MUST BE REPLACED ON PROPER TERMINALS TO
INSURE EARTHING AND POLARIZATION. AFTER SERVICING, RECONNECT POWER USING
POWER SWITCH.
