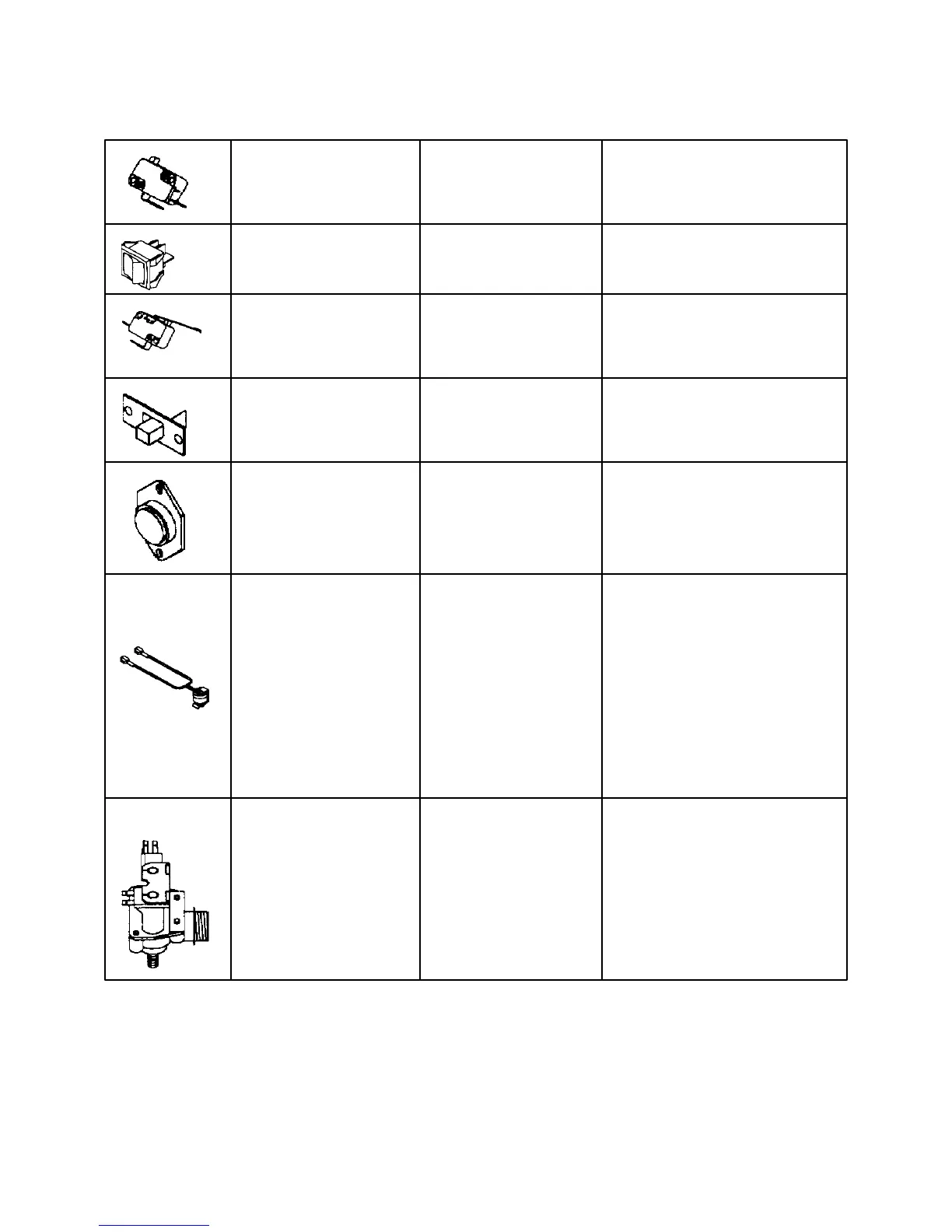

Component Specifications
Switch, refrigerator light Type SPST, NC
(Right opening door hinge) Volt 125 / 250 VAC
Current 3 Amps
Switch, power Type DPST
Volt 125 / 250 VAC
Current 15 Amps
Switch, freezer light, sealed Type SPST, NC
Volt 125 / 250 VAC
Current 5.0 Amps.
Switch, showroom Type SPDT
Volt 125VAC
Current 6 Amps
Thermister Check resistance across
Terminals. Bell curve
Resistance (see page 13)
@77°F 30,000 ohms ± 1% ohms
@45°F 68,000 ohms ± 2% ohms
Thermostat Volt 120VAC
Watt 1000 Watts
Current 10 Amps
Resistance across
terminals
Above 55°F ± 6°F Open
Below 20°F ± 8°F Closed
Between 55°F ± 6°F
And 20°F ± 8°F Will stay in current state (either
Open or closed) until either 55°F
± 6°F and 20°F ± 8°F is reached.
Valve, water Volt 120VAC, 60Hz.
Watt 20 Watts
Water pressure (inlet)
Max 120psi
Min 20psi
Fill rate 140 ± 10 CC’s at 7.5 seconds.
