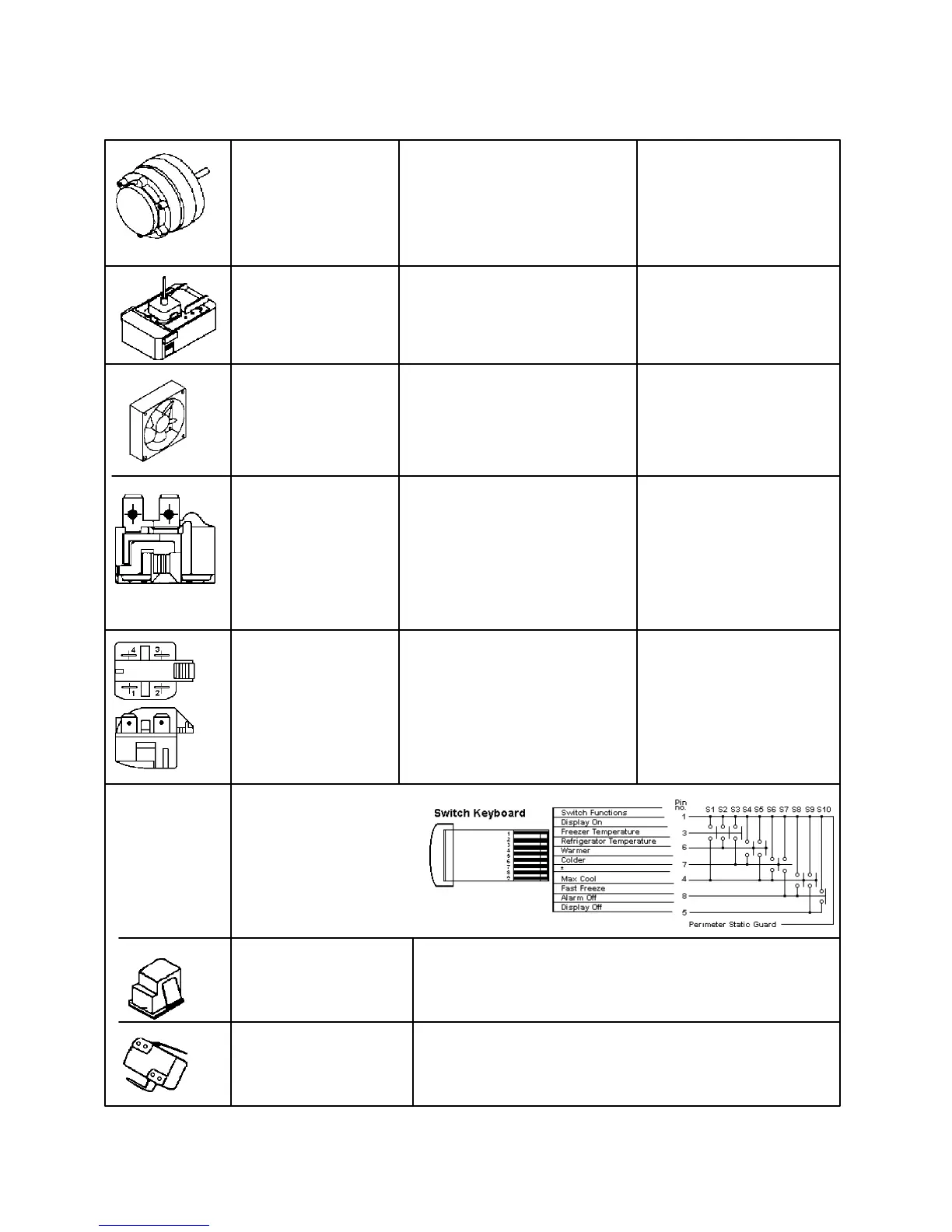

Component Specifications
Motor, condenser PSC Volt 120 VAC
Rotation (facing end opposite shaft) Clockwise
RPM 1300 RPM
Watt 6.4 Watts
Current 0.05 Amp
Resistance 480 Ω
Motor, ECM evaporator Volt 120VAC
fan. Rotation (facing shaft) Counterclockwise
RPM 2150 RPM
Watt 1.4 Watts
Motor and blade, Volt 120VAC
Refrigerator, condenser, Rotation (facing shaft) Counterclockwise
evaporator fan. RPM 3300 RPM
Watt 1.4 Watts
Overload Volt 120VAC
Ult. Trip amps @158°F (70°C) 3.51 Amps
Close temperature 142°F (61°C) ± 9°
Open temperature 257°F (125°C) ± 5°
Short time trip (seconds) 10 seconds
Short time trip (amps @ 77°F
(925°C) 14 amps.
Relay Resistance with power off check
across terminals 2 & 3. 3 – 12 Ω
Shorted 0 Ω
Open very high or infinite ohms.
Switch, auger Type DPST, NO
Volts 250 / 125 VAC
Current 10 / 5 Amp.
Switch, refrigerator light Type SPST, NC
(left opening door hinge) Volt 125 / 25 VAC
Current 3 Amps.
