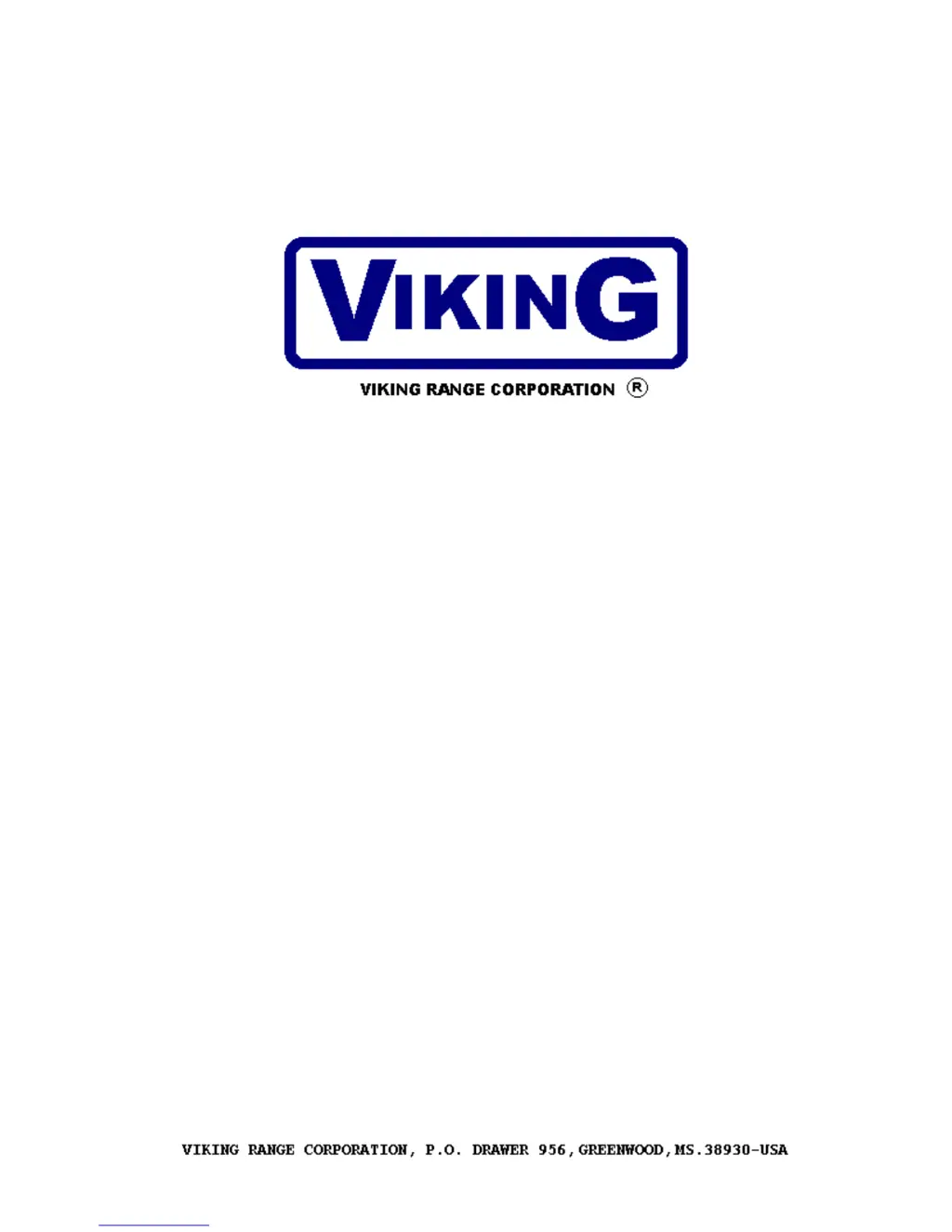

SERVICE MANUAL
FREE STANDING GAS RANGE

Table of Contents

Questions and Answers

  • J
    johnsonryanAug 8, 2025
    Why does my Viking VGR48-6G Ranges burner make a roaring noise like a blowtorch?
    • D
      danielashleyAug 8, 2025
      The roaring noise, like a blowtorch, indicates a flashback, where the air/gas mixture ignites inside the burner. This could be due to several reasons. The burner might be underrated, in which case you should check the orifice size and increase it if necessary, or increase gas pressure. You may need to adjust the air shutter to reduce primary air. If the flashback occurs when the burner valve is in the off position, the valve is likely leaking and needs to be changed. If these corrections don't work, the burner may need to be replaced.
  • M
    Misty RuizAug 18, 2025
    What to do if my Viking VGR48-6G burner makes a popping sound when I turn it off?
    • M
      Michael JimenezAug 18, 2025
      If your Viking Ranges burner makes a popping sound when you turn it off, it's likely an extinction pop, which is a small explosion of gas in the burner head. This is similar to a flashback. You can try to reduce the primary air supplied to the burner, but be careful not to allow yellow tipping during burner operation. Also, check the orifice size and gas pressure.
  • E
    Elizabeth NewtonAug 28, 2025
    How to fix Viking VGR48-6G Ranges flashback?
    • C
      Cathy BurnsAug 28, 2025
      To fix a flashback in your Viking Ranges, where the air/gas mixture ignites inside the burner creating a roaring noise, start by checking the orifice size. Increase it if necessary, or increase the gas pressure. Adjust the air shutter to reduce primary air. If the flashback occurs even when the burner valve is off, the valve is probably leaking and needs replacement. As a last resort, replace the burner if the previous steps fail.

Summary

Viking Product Warranty Information

Cooking Product Warranties

Side Cabinet Installation Requirements

Gas Connections and Requirements

Pressure Regulator

Range Leveling Procedure

Natural Gas to LP;Propane Conversion

Regulator Conversion

Details how to convert the appliance's pressure regulator from Natural gas to LP/Propane.

Burner Orifice Adjustment

Explains how to adjust burner orifice hoods and burner position for LP/Propane conversion.

Infrared Broiler Orifice Spud

Specifies the need to physically change the orifice spud for infrared broilers during conversion.

Infrared Broiler Orifice Spud Change

Orifice Spud Replacement Procedure

Surface Burner Adjustments

Accessing Surface Burners

Flame Height and Air Shutter Adjustment

Details how to adjust orifice hood and air shutter for proper flame characteristics.

Low Flame Adjustment

Oven Tubular Gas Burner Adjustments

Accessing Oven Burners

Flame and Air Shutter Settings

Guides on adjusting orifice hood and air shutter for optimal oven burner flame.

Grill and Griddle Burner Adjustment

Grill Burner Adjustments

Griddle Burner Adjustments

Oven Temperature Calibration

Pre-Calibration Checks

Calibration Procedure

Details setting the oven, monitoring cycles, and acceptable temperature ranges for calibration.

Uneven Oven Temperatures

Oven Thermostat Function and Calibration

Thermostat Operation

Thermostat Calibration Steps

Details removing the knob, adjusting the screw, and using the calibration chart.

Ignition System Components

Bake and Broil Igniters

Gas Valve Operation

Oven Door Removal and Replacement

Door Removal Steps

Provides step-by-step instructions on how to detach the oven door from the hinges.

Oven Door and Hinge Service

Oven Door Assembly and Disassembly

Details removing panels, baffles, trim, and glass from the oven door.

Door Handle, Logo, and Hinge Removal

Control Panel and Landing Ledge Removal

Control Panel Removal Steps

Outlines the process for removing the control panel, including knobs and screws.

Landing Ledge Removal Steps

Top Burner and Ignition System Removal

Top Burner Assembly Removal

Provides steps to remove the entire top burner assembly from the burner box.

Top Burner Ignitor Removal

Spark Module Replacement

Various Component Removal Procedures

Indicator Light, Thermostat, and Ignitor Removal

Guides on removing indicator lights, bake/broil thermostats, and oven ignitors.

Gas Valve Removal (Broil & Oven)

Details the removal of both broil and oven gas valves.

Burner System and Gas Control Service

Top Burner Valve and Regulator Service

Explains top burner valve replacement and pressure regulator removal.

Convection Fan and Oven Burner Removal

Broil, Oven Light, and Gasket Service

Broil Burner and Ignitor Removal

Guides on removing the broil burner and its associated ignitor.

Oven Light Switch and Gasket Removal

Convection Fan Removal

Grill, Griddle, and Oven Light Service

Grill and Griddle Component Removal

Details removing grill burners, griddle ignitors, and griddle thermostat.

Oven Light Removal and Replacement

Troubleshooting Guide - Bake;Broil Issues

No Bake;Broil Operation

Addresses issues with no bake or broil operation, ignitor not glowing, and gas flow problems.

Flame Issues

Covers problems like intermittent flame, low average temperature, and gas pressure.

Troubleshooting Guide - Other Issues

Fan Motor and Oven Light Problems

Spark and Ignition Issues

Covers no spark at top burners, delayed ignition, and electrode/module issues.

Troubleshooting Guide - Flame Characteristics

Flame Appearance Issues

Addresses yellow tipping, lifting flames, fluctuating flames, and floating flames.

Flame Behavior Problems

Covers issues like flashback, extinction pop, and causes of soot.

Troubleshooting Guide - Advanced Flame Issues

Flashback and Extinction Pop

Details causes and corrections for flashback and extinction pop issues on burners.

Rangetop Wiring Diagram

Rangetop Electrical Connections

Convection Range Wiring Diagram

Convection Range Electrical Connections
