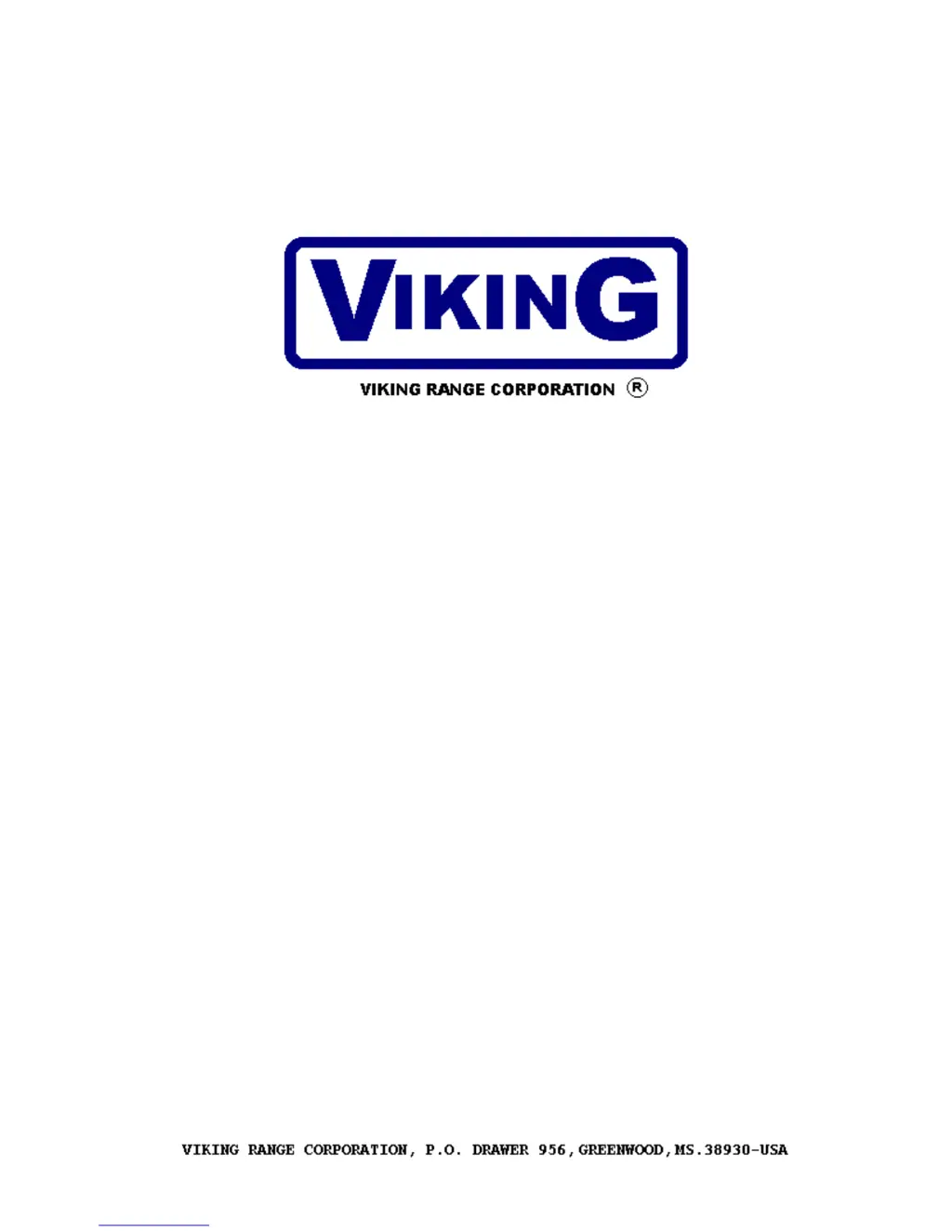

SERVICE MANUAL

FREE STANDING GAS RANGE

Table of Contents

Other manuals for Viking VGRC605

Use And Care Manual50 pages

Questions and Answers:

D
Douglas SkinnerAug 17, 2025
Why does my Viking Ranges burner make a roaring noise like a blowtorch?
- R
  Rebekah WrightAug 17, 2025
  The roaring noise, like a blowtorch, indicates a flashback, where the air/gas mixture ignites inside the burner. This could be due to several reasons. The burner might be underrated, in which case you should check the orifice size and increase it if necessary, or increase gas pressure. You may need to adjust the air shutter to reduce primary air. If the flashback occurs when the burner valve is in the off position, the valve is likely leaking and needs to be changed. If these corrections don't work, the burner may need to be replaced.
D
dhughesAug 20, 2025
What to do if my Viking Ranges burner makes a popping sound when I turn it off?
- P
  Patricia CarlsonAug 20, 2025
  If your Viking Ranges burner makes a popping sound when you turn it off, it's likely an extinction pop, which is a small explosion of gas in the burner head. This is similar to a flashback. You can try to reduce the primary air supplied to the burner, but be careful not to allow yellow tipping during burner operation. Also, check the orifice size and gas pressure.
B
Brian JordanAug 23, 2025
How to fix Viking VGRC605 Ranges flashback?
- J
  John KellyAug 23, 2025
  To fix a flashback in your Viking Ranges, where the air/gas mixture ignites inside the burner creating a roaring noise, start by checking the orifice size. Increase it if necessary, or increase the gas pressure. Adjust the air shutter to reduce primary air. If the flashback occurs even when the burner valve is off, the valve is probably leaking and needs replacement. As a last resort, replace the burner if the previous steps fail.
D
Daniel TurnerAug 26, 2025
Why is the Maxi-Broil and top heat not working on my Viking VGRC605 Ranges?
- B
  barkerkevinAug 26, 2025
  If your Viking Ranges Maxi-Broil function and top heat during baking aren't working, and the cycle light is on, it could be due to several reasons: * A problem with the selector switch contacts. * Open inside and outside broil elements. * Burned wiring or terminal connections. To resolve this, you may need to replace the selector switch, broil elements, or burned wiring and/or terminal connectors.
J
John BuckAug 28, 2025
How to fix convection bake not working on Viking Ranges?
- B
  Barbara SweeneyAug 28, 2025
  If the convection bake isn't working on your Viking Ranges, but the bake and broil functions are normal, and the cycle light is on, it could be due to: * An open selector switch contact. * An open convection motor winding. * Burned wiring or terminal connections. To fix this, you might need to replace the selector switch, convection motor, or any burned wiring or terminal connectors.
C
Charles EdwardsAug 31, 2025
Why is Maxi-Broil not working on my Viking VGRC605 Ranges, but Mini-Broil is?
- F
  Frank MooreAug 31, 2025
  If your Viking Ranges Maxi-Broil function is not working, and the bake functions normally, and the cycle light is on, but Mini-Broil functions normally, it could be due to: * An open selector switch contact. * Open outside broil element. To resolve this, you may need to replace the selector switch or the outside broil element.
S
Sherry HicksSep 2, 2025
Viking Ranges self-clean not working, door won't lock, but power is present. What's wrong?
- P
  Paul RaySep 3, 2025
  If your Viking Ranges is not self-cleaning, the bake and broil functions are normal, the door won’t lock, but 120 VAC is present to the door lock module/timer, there's no motor movement, and the clean light is on, it could be due to: * Open relay contacts on the door lock module/timer. * Open contacts on the auto reset thermostat. * Open windings in the lock motor. To fix this, you might need to replace the door lock module/timer, the auto reset thermostat, or the lock motor assembly.
J
John GaySep 5, 2025
Why is there no air circulation during convection cook on my Viking Ranges?
- K
  Karen MorrisSep 5, 2025
  If the convection cook function heats in your Viking Ranges, but there's no air circulation, it could be due to: * An open winding in the convection fan motor. * A frozen motor shaft. * An open selector switch contact. To resolve this, you might need to replace the fan motor or the selector switch.
L
Leslie SkinnerSep 8, 2025
What causes the door lock motor to keep running on my Viking VGRC605?
- H
  Hannah WalkerSep 8, 2025
  If the door lock motor continues to run on your Viking Ranges, there's no signal to the sensor, and the clean light is on, it could be because the SW2 switch on the door lock mechanism is not closing. To fix this, you may need to adjust the SW2 switch position or replace the faulty switch.
J
Julie MurraySep 12, 2025
Why is there no heat when the door lock motor is engaged on my Viking Ranges?
- J
  Jason MendezSep 12, 2025
  If the door lock motor is engaged on your Viking Ranges, there's a signal to the sensor, but there's no heat and the clean light is on, it could be that the door lock module/timer relay is not closing. To resolve this, you may need to replace the PC board.

Viking VGRC605 Specifications

General

Brand	Viking
Model	VGRC605
Category	Ranges
Language	English

Summary

PROXIMITY TO SIDE CABINET INSTALLATION

GAS CONNECTIONS

Manual Shut-off Valve

Safety valve installation for gas supply.

Pressure Regulator

Ensures safe and efficient gas operation.

Flexible Connections

RANGETOP CUTOUT and SPECIFICATIONS

Gas Line Requirements

Electrical Requirements

RANGE LEVELING

NATURAL GAS TO LP/PROPANE CONVERSION INSTRUCTIONS

SURFACE BURNER ADJUSTMENTS

OVEN TUBULAR GAS BURNER ADJUSTMENTS

GRILL / GRIDDLE BURNER ADJUSTMENT

OVEN TEMPERATURE CALIBRATION

OVEN THERMOSTAT

SILICON CARBIDE (GLO-COIL) IGNITION

TROUBLE SHOOTING GUIDE

No bake operation in bake or broil

Diagnosing issues with bake/broil operation.

No bake operation. Broil operates normally

Troubleshooting bake ignitor not glowing.

No broil operation. Bake operates normally

Troubleshooting broil ignitor not glowing.

No gas flow to the burner ignitor glows red

Addressing lack of gas flow or ignition.

TROUBLE SHOOTING GUIDE (Continued)

Gas flows to bake/broil burner but does not light

Troubleshooting ignition failures.

Yellow tipping - produces soot and blocks flueways

Correcting flame issues causing soot.

Flashback - roaring noise

Troubleshooting flashback and torch-like noises.

Fan motor does not operate

Diagnosing fan motor issues.

Lifting flames - noisy flame

Addressing flames that lift off burner ports.

Extinction pop - explosion of gas

Addressing gas explosions when shutting off.

Oven light does not operate

Troubleshooting oven light problems.

Floating flame - lazy looking

Diagnosing and fixing lazy flames and odors.
