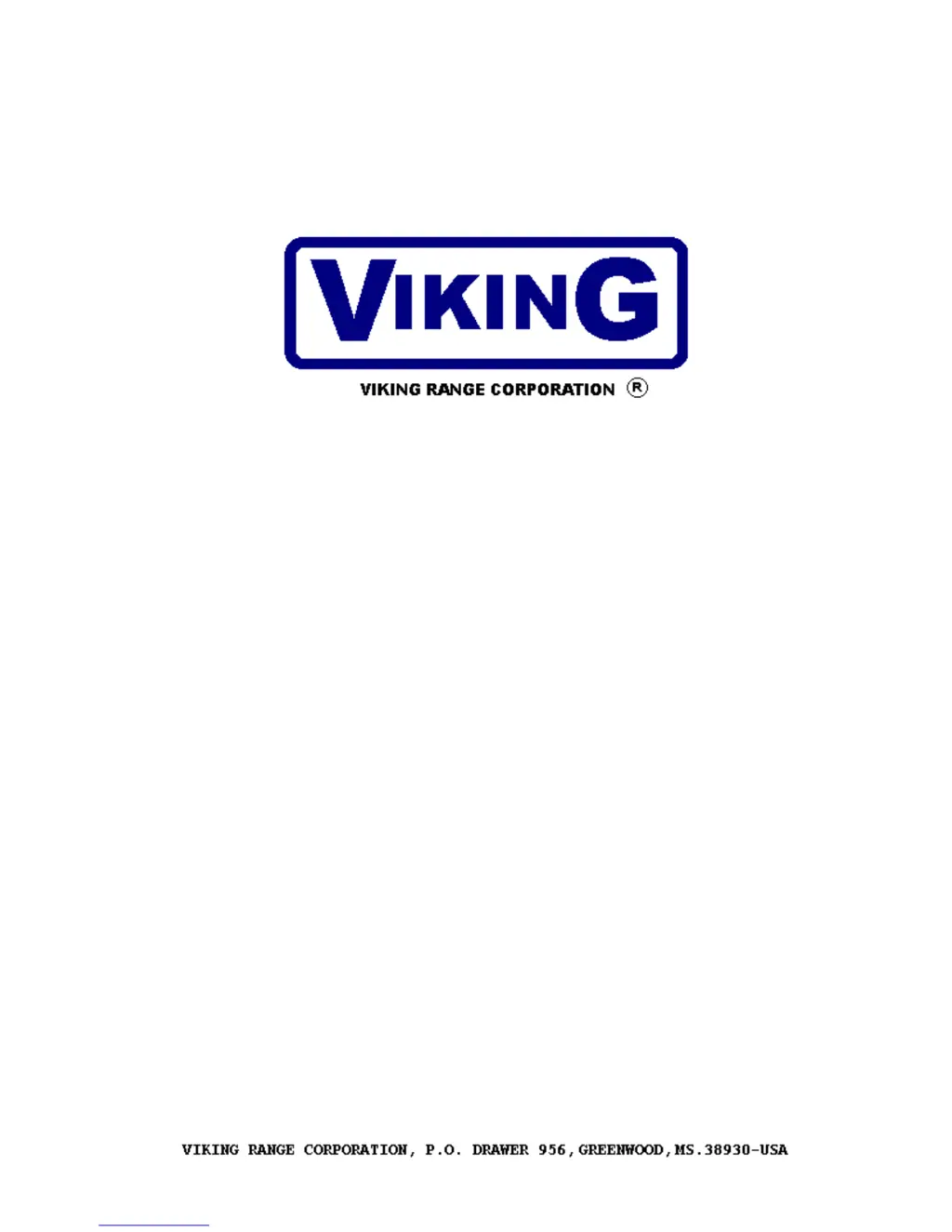

SERVICE MANUAL
FREE STANDING GAS RANGE

Table of Contents

Other manuals for Viking VGRC485

Preview: Use And Care Manual
Use And Care Manual50 pages

Questions and Answers

  • B
    Brett JenkinsAug 17, 2025
    Why does my Viking Ranges burner make a roaring noise like a blowtorch?
    • J
      jcoffeyAug 17, 2025
      The roaring noise, like a blowtorch, indicates a flashback, where the air/gas mixture ignites inside the burner. This could be due to several reasons. The burner might be underrated, in which case you should check the orifice size and increase it if necessary, or increase gas pressure. You may need to adjust the air shutter to reduce primary air. If the flashback occurs when the burner valve is in the off position, the valve is likely leaking and needs to be changed. If these corrections don't work, the burner may need to be replaced.
  • A
    atkinsonmichaelAug 20, 2025
    What to do if my Viking VGRC485 burner makes a popping sound when I turn it off?
    • G
      Gary BenderAug 20, 2025
      If your Viking Ranges burner makes a popping sound when you turn it off, it's likely an extinction pop, which is a small explosion of gas in the burner head. This is similar to a flashback. You can try to reduce the primary air supplied to the burner, but be careful not to allow yellow tipping during burner operation. Also, check the orifice size and gas pressure.
  • C
    Claudia KingAug 22, 2025
    How to fix Viking VGRC485 Ranges flashback?
    • J
      Jaime BrockAug 22, 2025
      To fix a flashback in your Viking Ranges, where the air/gas mixture ignites inside the burner creating a roaring noise, start by checking the orifice size. Increase it if necessary, or increase the gas pressure. Adjust the air shutter to reduce primary air. If the flashback occurs even when the burner valve is off, the valve is probably leaking and needs replacement. As a last resort, replace the burner if the previous steps fail.
  • C
    Charles JamesAug 26, 2025
    Why is the Maxi-Broil and top heat not working on my Viking Ranges?
    • S
      Sydney AndersonAug 26, 2025
      If your Viking Ranges Maxi-Broil function and top heat during baking aren't working, and the cycle light is on, it could be due to several reasons: * A problem with the selector switch contacts. * Open inside and outside broil elements. * Burned wiring or terminal connections. To resolve this, you may need to replace the selector switch, broil elements, or burned wiring and/or terminal connectors.
  • T
    Tara ParkerAug 28, 2025
    How to fix convection bake not working on Viking Ranges?
    • L
      Lynn HinesAug 28, 2025
      If the convection bake isn't working on your Viking Ranges, but the bake and broil functions are normal, and the cycle light is on, it could be due to: * An open selector switch contact. * An open convection motor winding. * Burned wiring or terminal connections. To fix this, you might need to replace the selector switch, convection motor, or any burned wiring or terminal connectors.
  • K
    Kristine MosleyAug 31, 2025
    Why is Maxi-Broil not working on my Viking VGRC485 Ranges, but Mini-Broil is?
    • A
      Alex GuerraAug 31, 2025
      If your Viking Ranges Maxi-Broil function is not working, and the bake functions normally, and the cycle light is on, but Mini-Broil functions normally, it could be due to: * An open selector switch contact. * Open outside broil element. To resolve this, you may need to replace the selector switch or the outside broil element.
  • V
    valenciakatieSep 2, 2025
    Viking Ranges self-clean not working, door won't lock, but power is present. What's wrong?
    • T
      Theresa DavisSep 2, 2025
      If your Viking Ranges is not self-cleaning, the bake and broil functions are normal, the door won’t lock, but 120 VAC is present to the door lock module/timer, there's no motor movement, and the clean light is on, it could be due to: * Open relay contacts on the door lock module/timer. * Open contacts on the auto reset thermostat. * Open windings in the lock motor. To fix this, you might need to replace the door lock module/timer, the auto reset thermostat, or the lock motor assembly.
  • J
    Julie WongSep 5, 2025
    Why is there no air circulation during convection cook on my Viking VGRC485?
    • A
      Alexander FrancisSep 6, 2025
      If the convection cook function heats in your Viking Ranges, but there's no air circulation, it could be due to: * An open winding in the convection fan motor. * A frozen motor shaft. * An open selector switch contact. To resolve this, you might need to replace the fan motor or the selector switch.
  • H
    Hannah DavisSep 8, 2025
    What causes the door lock motor to keep running on my Viking VGRC485?
    • J
      Joshua HansenSep 8, 2025
      If the door lock motor continues to run on your Viking Ranges, there's no signal to the sensor, and the clean light is on, it could be because the SW2 switch on the door lock mechanism is not closing. To fix this, you may need to adjust the SW2 switch position or replace the faulty switch.
  • K
    Kayla RushSep 12, 2025
    Why is there no heat when the door lock motor is engaged on my Viking VGRC485?
    • D
      Donald RobinsonSep 12, 2025
      If the door lock motor is engaged on your Viking Ranges, there's a signal to the sensor, but there's no heat and the clean light is on, it could be that the door lock module/timer relay is not closing. To resolve this, you may need to replace the PC board.

Summary

Natural Gas to LP;Propane Conversion

Pressure Regulator Conversion

Burner Orifice Hood Adjustment

Infrared Broiler Orifice Spud Change

Details the replacement of the orifice spud for infrared broilers.

Surface Burner Adjustments

Accessing Burner Adjustments

Air Shutter Adjustment

Adjusting the air shutter to achieve a blue flame without yellow tipping.

Orifice Hood Adjustment

Adjusting the orifice hood to control flame size for proper gas flow.

Low Flame Adjustment

Oven Tubular Gas Burner Adjustments

Accessing Oven Burner Adjustments

Orifice Hood Adjustment for Flame Quality

Adjusting the orifice hood to achieve a sharp blue inner cone flame.

Air Shutter Adjustment for Flame Quality

Adjusting the air shutter for a blue flame without yellow tipping or lifting.

Grill and Griddle Burner Adjustments

Grill Burner Adjustment Procedure

Steps for adjusting the grill burner air shutter and flame.

Griddle Burner Adjustment Procedure

Steps for adjusting the griddle burner air shutter and flame.

Oven Temperature Calibration

Thermal Valve Voltage and Gas Pressure Check

Oven Temperature and Cycle Testing

Convection Test and Pan Placement

Addressing Uneven Temperatures

Oven Thermostat Operation

Thermostat Continuity Testing

Thermostat Calibration Procedure

Instructions for calibrating oven temperature using the adjusting screw.

Silicon Carbide (Glo-Coil) Ignition System

Bake and Broil Igniter Operation

Igniter Continuity and Current Testing

Methods for testing igniter continuity and measuring current draw.

Gas Valve Operation and Testing

Describes gas valve function and procedures for testing its components.

Oven Door Removal and Replacement

Standard Door Removal Steps

Step-by-step instructions for safely removing the oven door.

Resolving Door Stop Issues

Door Reinstallation Procedure

Instructions for correctly reinstalling the oven door.

Oven Door Assembly and Components

Door Panel and Inner Components

Handle and Logo Removal

Procedure for removing the oven door handle and logo.

Door Hinge Removal Procedure

Instructions for safely removing the oven door hinges.

Control Panel and Landing Ledge Removal

Control Panel Removal Steps

Steps for removing the control panel, including knobs and screws.

Landing Ledge Removal Steps

Procedure for removing the landing ledge after other components are detached.

Top Burner System Components

Top Burner Assembly Removal

Instructions for removing the top burner assemblies and ignitor wires.

Top Burner Ignitor Removal

Procedure for removing the ignitor from the top burner support.

Spark Module Removal and Wiring

Details on removing the spark module and disconnecting wiring.

Component Removal Procedures

Indicator Light and Thermostat Removal

Oven Ignitor and Gas Valve Removal

Procedures for removing oven ignitors and bake/broil gas valves.

Burner and Valve System Maintenance

Top Burner Valve and Regulator Replacement

Instructions for replacing top burner valves and the pressure regulator.

Convection Fan and Oven Burner Removal

Broil Burner and Related Components

Broil Burner and Ignitor Removal

Oven Light Switch and Gasket Removal

Convection Fan Removal Procedure

Troubleshooting Common Range Problems

Ignition and Burner Operation Issues

Fan Motor and Oven Light Issues

Viking VGRC485 Specifications
