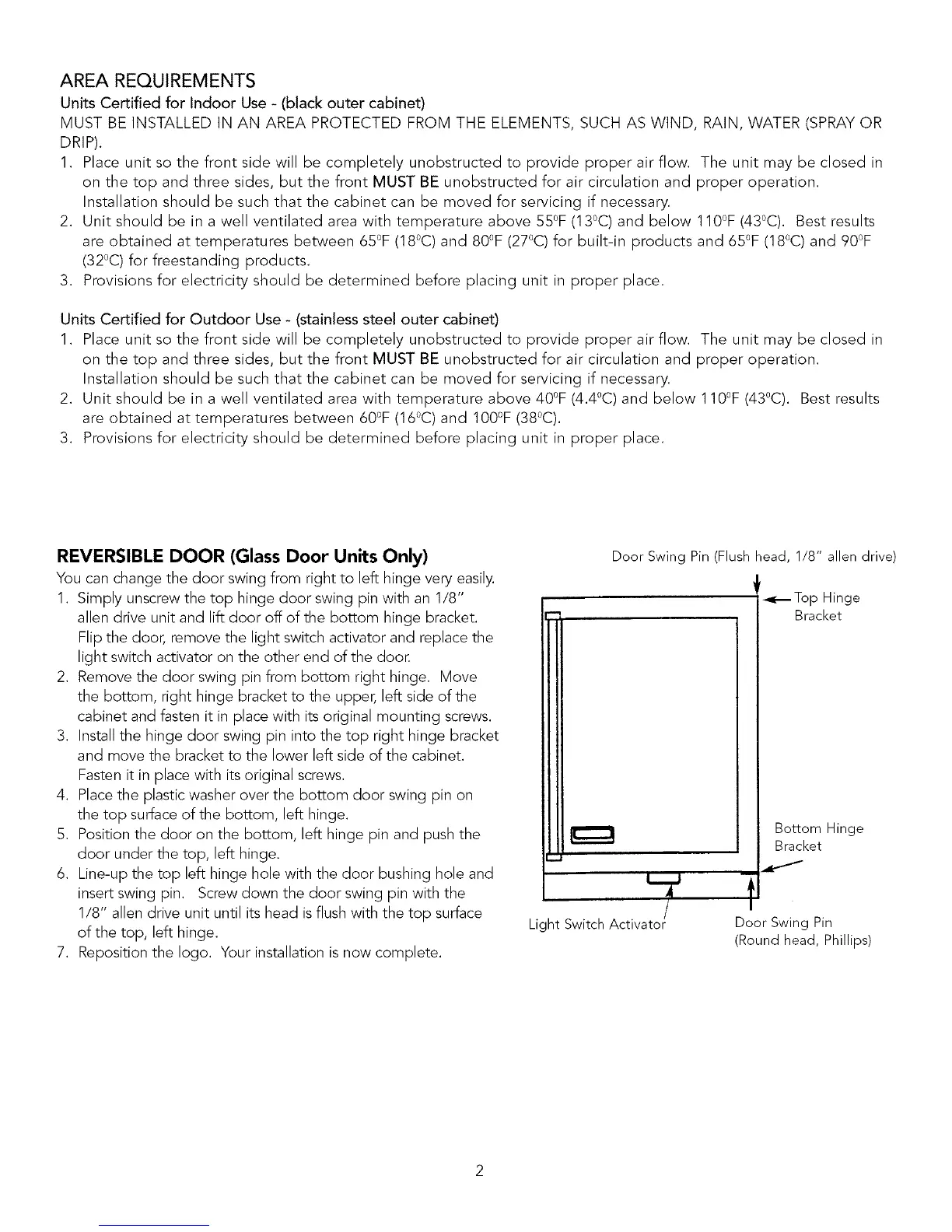

AREA REQUIREMENTS
Units Certified for Indoor Use - (black outer cabinet)
MUST BE INSTALLED IN AN AREA PROTECTED FROM THE ELEMENTS, SUCH AS WIND, RAIN, WATER (SPRAYOR
DRIP).
1. Place unit so the front side will be completely unobstructed to provide proper air flow. The unit may be closed in
on the top and three sides, but the front MUST BE unobstructed for air circulation and proper operation.
Installation should be such that the cabinet can be moved for servicing if necessary.
2. Unit should be in a well ventilated area with temperature above 55°F (13°C) and below 110°F (43°C). Best results
are obtained at temperatures between 65°F (18°C) and 80°F (27°C) for built-in products and 65°F (18°C) and 90°F
(32°C) for freestanding products.
3. Provisions for electricity should be determined before placing unit in proper place.
Units Certified for Outdoor Use - (stainless steel outer cabinet)
1. Place unit so the front side will be completely unobstructed to provide proper air flow. The unit may be closed in
on the top and three sides, but the front MUST BE unobstructed for air circulation and proper operation.
Installation should be such that the cabinet can be moved for servicing if necessary.
2. Unit should be in a well ventilated area with temperature above 40°F (4.4°C) and below 110°F (43°C). Best results
are obtained at temperatures between 60°F (16°C) and 100°F (38°C).
3. Provisions for electricity should be determined before placing unit in proper place.
REVERSIBLE DOOR (Glass Door Units Only)
You can change the door swing from right to left hinge very easily.
1. Simply unscrew the top hinge door swing pin with an 1/8"
allen drive unit and lift door off of the bottom hinge bracket.
Flip the door, remove the light switch activator and replace the
light switch activator on the other end of the door.
2. Remove the door swing pin from bottom right hinge. Move
the bottom, right hinge bracket to the upper, left side of the
cabinet and fasten it in place with its original mounting screws.
3. Install the hinge door swing pin into the top right hinge bracket
and move the bracket to the lower left side of the cabinet.
Fasten it in place with its original screws.
4. Placethe plastic washer over the bottom door swing pin on
the top surface of the bottom, left hinge.
5. Position the door on the bottom, left hinge pin and push the
door under the top, left hinge.
6. Line-up the top left hinge hole with the door bushing hole and
insert swing pin. Screw clown the door swing pin with the
1/8" allen drive unit until its head is flush with the top surface
of the top, left hinge.
7. Reposition the logo. Your installation is now complete.
I._
Light Switch Activato/
Door Swing Pin (Flushhead, 1/8" allen drive)
r_,_.---Top Hinge
Bracket
I
i
Bottom Hinge
Bracket
Door Swing Pin
(Round head, Phillips)
