Installation
Important: The device should be installed at a height of approximately 160 cm off the floor, taking care not
to expose it to direct sources of light so as to avoid annoying glare on the surface of the LCD screen.

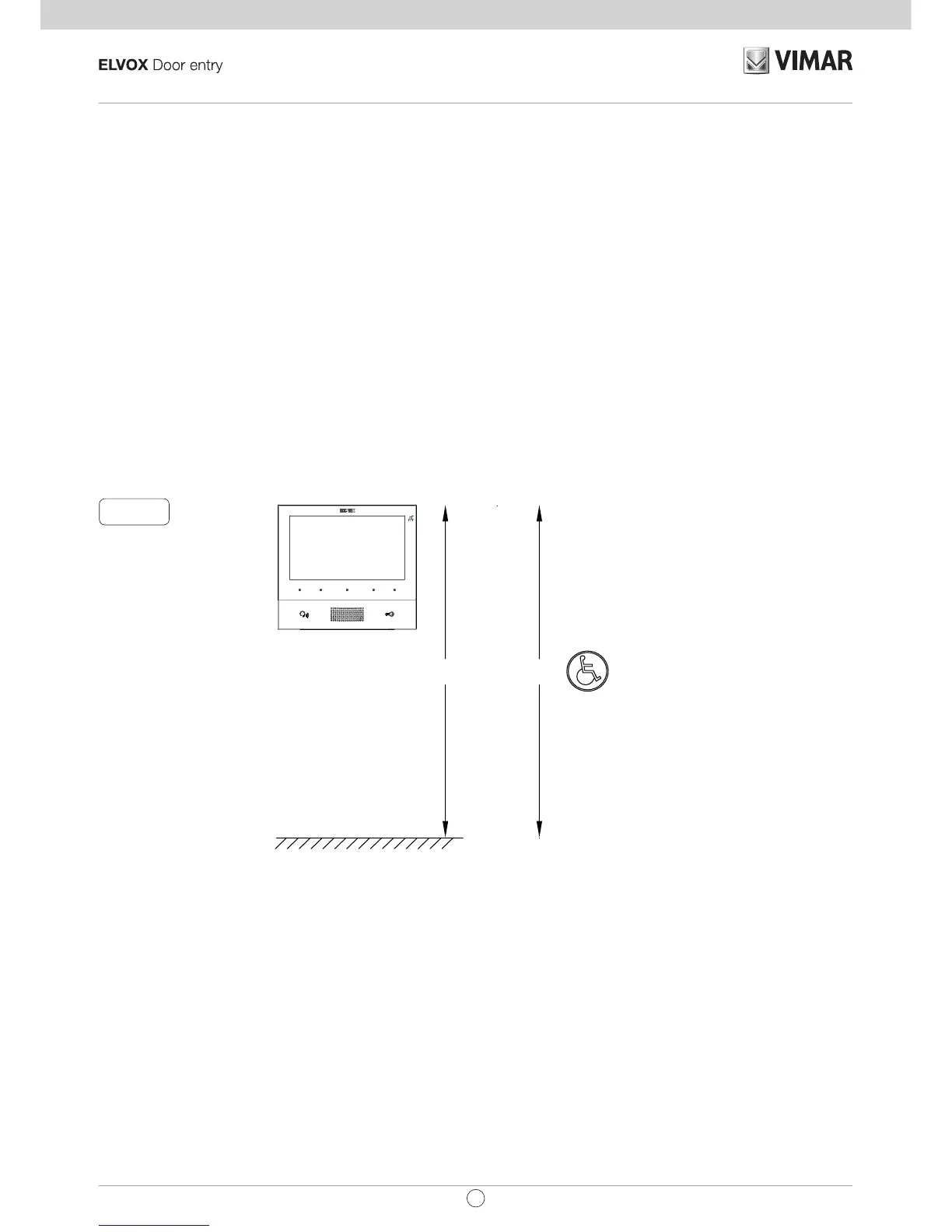

Note: Fig. 1 shows the recommended installation distances, unless otherwise specified by current regula-
tions.
1. Secure the plate to the wall, with metal bracket, in box: circular 2M (Vimar V71701), 3M (Vimar V71303,
V71703) horizontal and vertical, 4+4M (Vimar V71318, V71718) and square, British standard.
2. Wire the terminal block (Fig. 5).
3. Terminate the video signal (Fig. 6)
4. Install the video entryphone as follows: position the video entryphone on the plate keeping it slightly
raised. While keeping the front panel pressed, apply a light downward pressure until it clicks into place.
5. Should you need to remove the monitor you need to apply a light pressure on the lever (Fig. 3) and raise
it (from the bottom upwards) so as to release the monitor from the chassis.
