Vimar ELVOX 40505 User Manual

7
TAB: 40505
EN

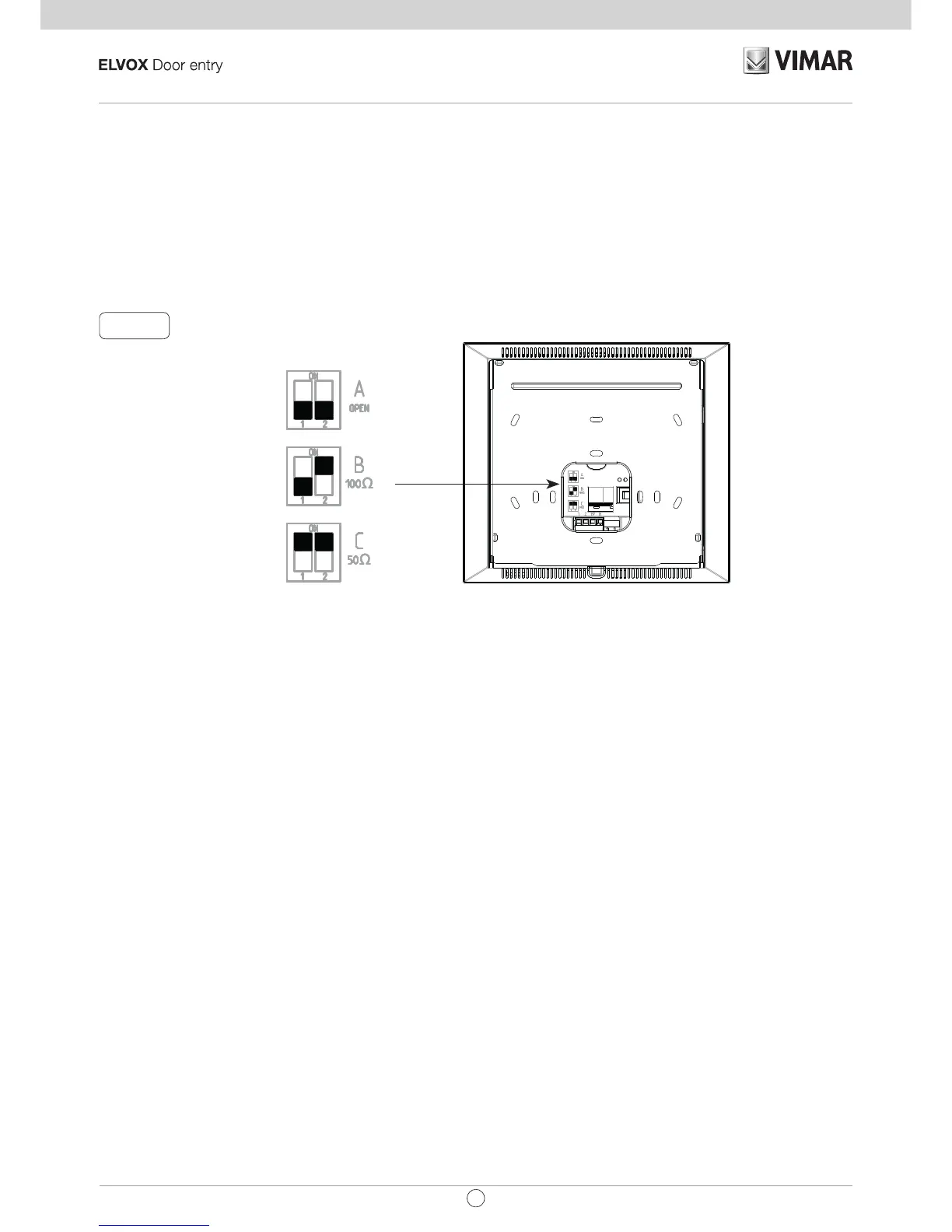

Video Termination
Select DIP switch to terminate the video signal
A) if the BUS cable enters terminals 1, 2 and continues to another internal unit.
B) when a BUS cable with a characteristic impedance of 100 Ohms (Elvox 732I or 732H cable) enters ter-
minals 1, 2 and the riser stops in the internal unit
C) when a BUS cable with characteristic impedance of 50 Ohms (Cat. 5 or Cat. 6 twisted pair cable) enters
terminals 1, 2 and the riser stops in the internal unit.
Fig. 6

Vimar ELVOX 40505 Specifications

General

Brand	Vimar
Model	ELVOX 40505
Category	Intercom System
Language	English
