Vimar ELVOX Gates SL24.D User Manual

10
SL24.D
EN

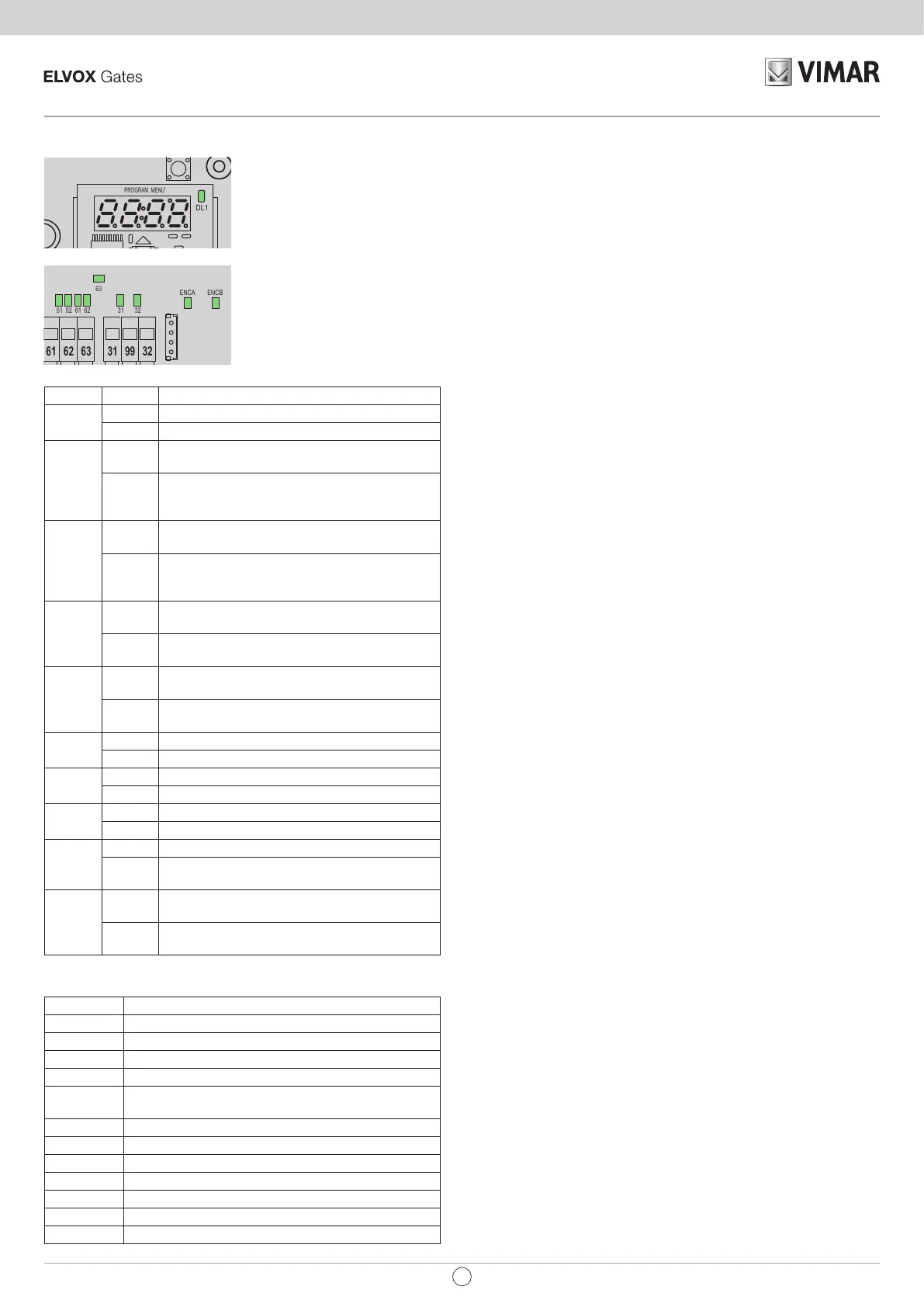

6 - LED functions
41
-E
+E
BAT
C
N9
1
5
A
F1 (ATO)
S
E
C
T1
T2
51
F2 (5X20)
F3.15 A
U1
99
52
63
51
99
61
62
31
_
ANT
SL24.D
21
22
12
14
1
0
10
11
1
31
99
32
32
51
52
61
62
63
ENCA
ENCB
E
S
C
O
K
DL1
P
R
O
G
R
A
M
.
M
E
N
U
'
41
-E
+E
BAT
C
N9
1
5
A
F1 (ATO)
S
E
C
T1
T2
51
F2 (5X20)
F3.15 A
U1
99
52
63
51
99
61
62
31
_
ANT
SL24.D
21
22
12
14
1
0
10
11
1
31
99
32
32
51
52
61
62
63
ENCA
ENCB
E
S
C
O
K
DL1
P
R
O
G
R
A
M
.
M
E
N
U
'
LED Status Description
DL1
OFF Power supply not present
ON Power supply present
ENCA
OFF
When the motor is running: encoder rst channel
signal absent (encoder not working)
ON
When the motor is running: encoder rst channel
signal present (it appears as a very rapid ashing
according to the rotation speed of the motor)
ENCB
OFF
When the motor is running: encoder second chan-
nel signal absent (encoder not working)
ON
When the motor is running: encoder second chan-
nel signal present (it appears as a very rapid ash-
ing according to the rotation speed of the motor)
31
OFF
Limit switch 1 (DX bracket - right hand) open (limit
switch engaged)
ON
Limit switch 1 (DX bracket - right hand) closed
(limit switch not engaged)
32
OFF
Limit switch 2 (SX bracket - left hand) open (limit
switch engaged)
ON
Limit switch 2 (SX bracket - left hand) closed (limit
switch not engaged)
51
OFF Step-by-step input (terminal 51) not engaged
ON Step-by-step input (terminal 51) engaged
52
OFF Pedestrian input (terminal 52) not engaged
ON Pedestrian input (terminal 52) engaged
61
OFF Stop contact (terminal 61) open (engaged)
ON Stop contact (terminal 61) closed (not engaged)
62
OFF Photocell on closing engaged (terminal 62 open)
ON
Photocell on closing not engaged (terminal 62
closed)
63
OFF
Photocell or safety edge engaged (terminal 63
open)
ON
Photocell or safety edge not engaged (terminal 63
closed)
7 - List of alarms
Alarm Description
F01 Motor power supply error
F02 Obstruction on opening
F03 Obstruction on closing
F04 Contact on terminal 62 open
F05
A condition leading to the stopping of the motor has oc-
curred
F06 Contact on terminal 63 open
F07 Faulty EEPROM memory
F08 Encoder error
F09 Time-out exceeded error
F10 Fuse blown or not present
F11 Excessive absorption on the motor power output
F13 Incorrect motor wiring, reverse the motor power cables
REACH (EU) Regulation no. 1907/2006 – Art.33.
The product may contain traces of lead.
