6
SL24.T
EN
ENCB
OFF When the motor is operating: second encoder channel signal absent (encoder not working)
ON
When the motor is operating: second encoder channel present (it ashes very fast, depending on the motor rotation
speed)
31
OFF Limit switch 1 contact (RH magnet-holder bracket) open (limit switch engaged)
ON Limit switch 1 contact (RH magnet-holder bracket) closed (limit switch engaged)
32
OFF Limit switch 2 contact (LH magnet-holder bracket) open (limit switch engaged)
ON Limit switch 2 contact (LH magnet-holder bracket) closed (limit switch not engaged)
51
OFF Step-by-step input (term. 51) not engaged
ON Step-by-step input (term. 51) engaged
52
OFF Pedestrian input (term. 52) not engaged
ON Pedestrian input (term. 52) engaged
61
OFF Stop contact (term. 61) open (engaged)
ON Stop contact (term. 61) closed (not engaged)
62
OFF Closing photocell (term. 62) engaged
ON Closing photocell (term. 62) not engaged
63
OFF Photocell or safety edge (term. 63) open (engaged)
ON Photocell or safety edge (term. 63) closed (not engaged)
Gate travel calibration
NOTE: To perform this procedure, the gate must be stationary.
CAUTION! THE SAFETY DEVICES ARE DISABLED DURING GATE TRAVEL CALIBRATION.

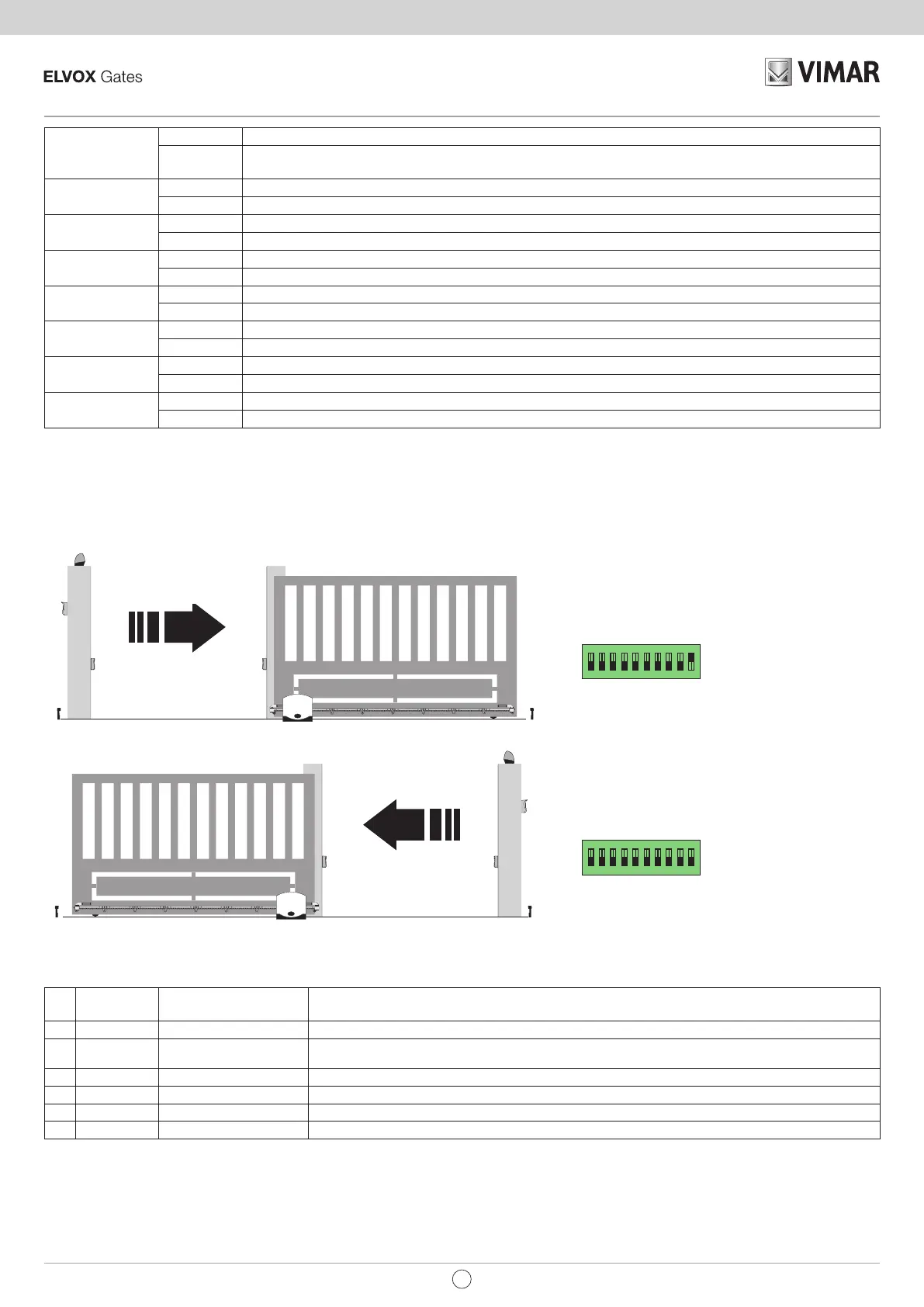

Before performing calibration, check the direction of the motor (DIP 10 = OFF, opening to the left, DIP 10 = ON opening to the right).
APERTURA
APERTURA
Quick calibration
(slow-down at 50 cm during opening and 75 cm during closing, pedestrian opening at 1 metre)
No.
Press
push-button
Step Description
1 - Preparation Move the gate to approximately 1 metre from closing
2 PROG Procedure activation
Press the programming pushbutton PROG for at least 3 seconds, until the PRG LED starts ashing
slowly, and then release it
3 51 Gate closing Press pushbutton 51: the motor closes at reduced speed up to the closing limit switch
4 - Gate opening The motor opens at reduced speed up to the opening limit switch
5 - Gate closing The motor closes at normal speed up to the closing limit switch
6 - End of procedure The PRG LED turns o. End of procedure
OPENING
OPENING
