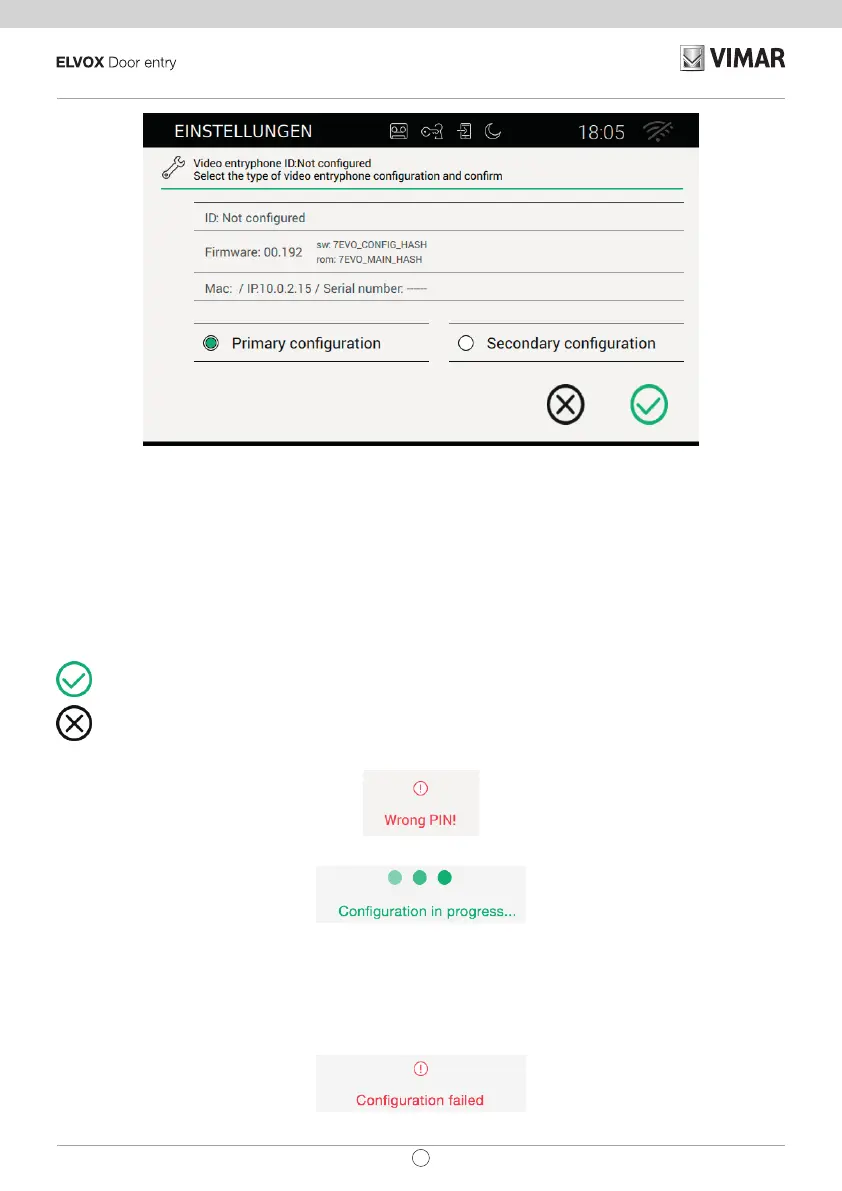

The information displayed on the screen are as follows:
ID: unique number identifying the device. Prior to conguration the screen shows Not congured
Firmware: Version of the device's rmware
Mac: Media Access Control, this is the physical address used in a network to control access
Serial Number: The serial number of the device, assigned in the factory
Remember that the primary and secondary Conguration operations are subject to access control for security reasons. The
user must therefore enter the PIN before starting the procedure. Obviously the procedure will start only if the PIN entered
matches that set in step 2.
To assist the installer during the conguration operation and to enable communication with anyone at the external unit, audio
and video are activated on the TAB 7S display.
Controls
starts conguration. On completion of the procedure, returns you to the settings screen;
quit without saving the changes made and returns you to the settings screen.
If the PIN entered is incorrect, the procedure is terminated with the error message shown below.
While conguration is in progress, the installer is informed of the status via a message (see gure below).
If the panel is equipped with a camera, the monitor will present both the audio and video channels. Otherwise only the audio
channel will be activated.
Assign the ID to the master panel to complete the conguration procedure.
If a problem occurs during conguration and the procedure is interrupted, the installer will be notied by a message similar
to that in the gure below.
