Gasifying boilers VIGAS
5. VIGAS BOILER IN CONFIGURATION WITH GASES
THERMOMETER
(without discharge fan and lambda sensor)
The advantage of the gases thermometer is elimination of the maximal gases temperature, if it will
be reached, it will effect the speed drop of fan. As consequence will be increased efficiency
followed by low fuel consumption. In configuration with storage tank, its used for boiler to
shotdown when burn-out all fuel, water boiler temperature in tank has no influence to shotdown.

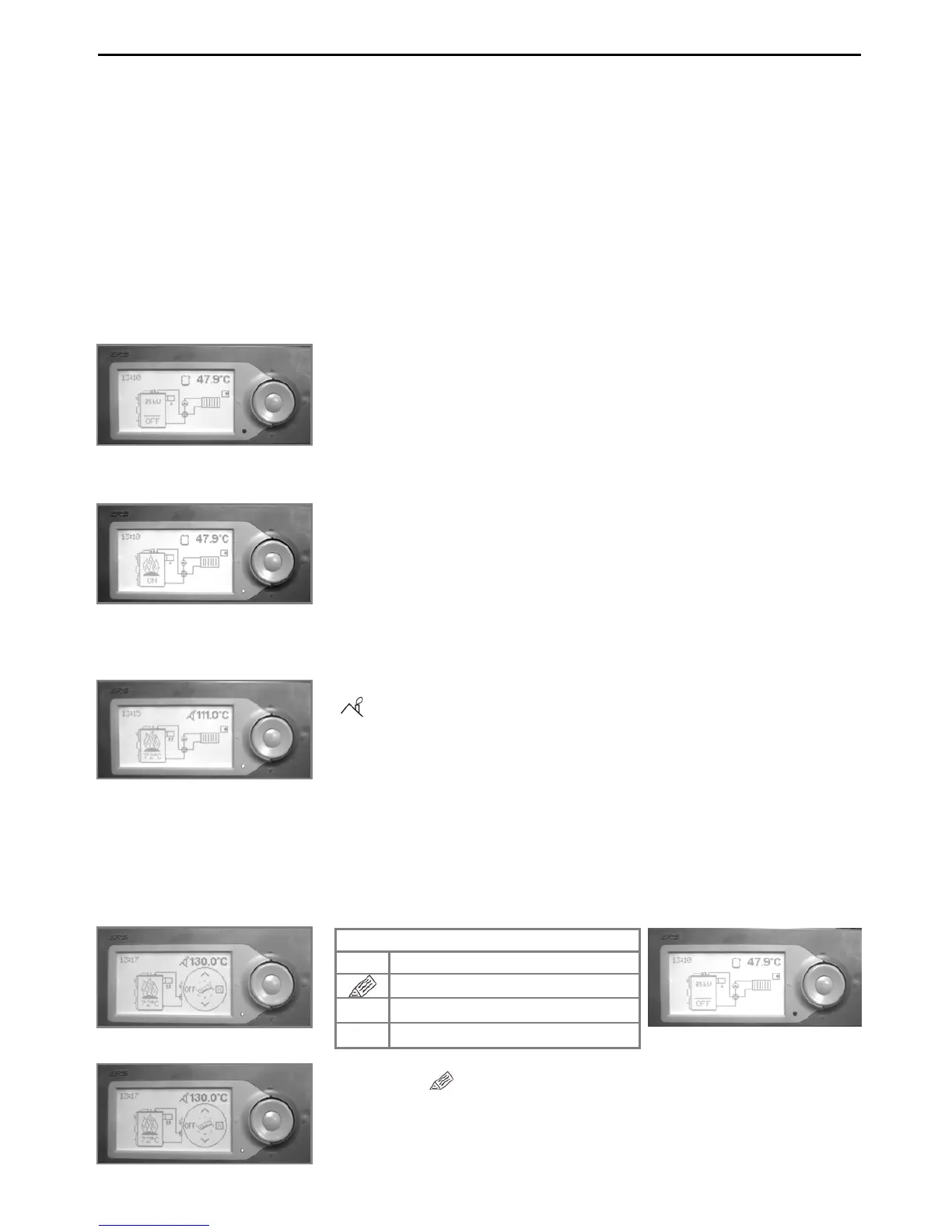

5.1 VIGAS BOILER CONTROL
5.1.1 Boiler activation
5.1.2 Boiler activated – heating mode
5.1.3 Boiler activated – burning mode
5.1.4 Adding fuel, Disconnection the boiler (manually)
Using graphical control. To call the graphical control, press central button ENTER. Graphical
control offers option to switch off, adding fuel or cancel the graphical control.
Boiler is set to heating mode, if outgoing gases temperature is
lower, then set minimal gases temperature. Minimal gases
temperature, as well as, maximal gases temperature can be set in
boiler settings. Minimal gases temperature is set on 90°C, maximal
gases temperature is on 200°C, which are standard settings.
Pump is pulse working in dependence on temperature of the boile
water!
If boiler is in unactive status with symbol „OFF“, as displayed on
the picture, by pressing the central button ENTER the boiler start
the operation.
The burning mode is active after the gases temeprature is highe
thermostat, when indoor thermostat is switched off boiler slowly
decreasing its output.
Choose one option
OFF Switch off
Add fuel
⌧
Cancell the control
bc
Change the indicated value
By pressing „ “ fan will be switched off. By using the rod open
the chimney flap, consequently open the upper door. You can add
fuel, if necessary. Close the upper door and chimney flap.
