Vingtor Stentofon TCIS-3 User Manual

20
A100K11194
Turbine Station Conguration Guide

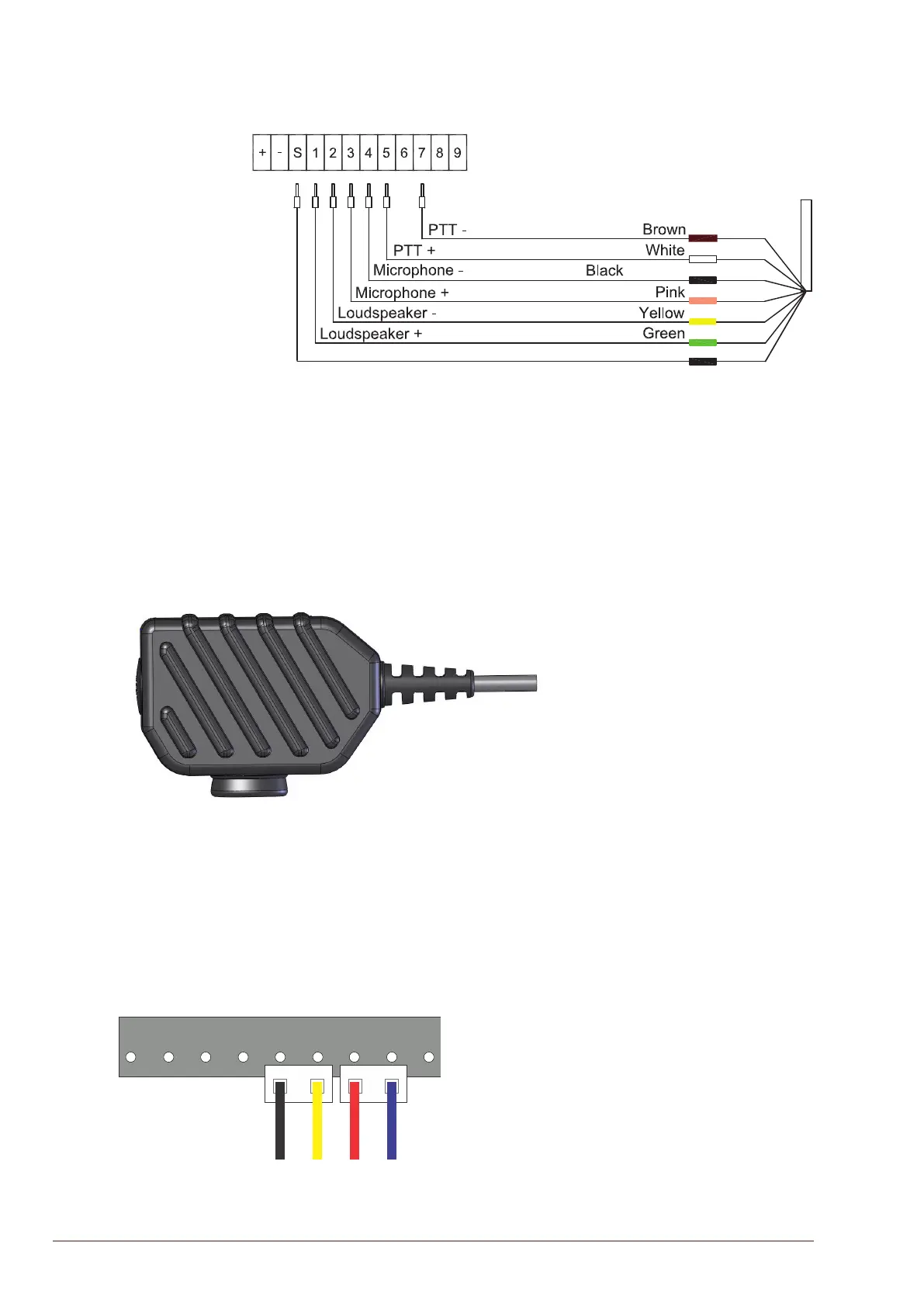

3.3.2 Connecting TAX-2b Plugbox to TFIX-x Ex Intercoms
Connect the wire ferrules on the Plugbox cable to the terminal block according to the pin
conguration below. Note that the black (shield) wire is labeled MIC- and the black (main shield) wire
is labeled GND.
3.4 EMMAI-2H/EMMAX-1H Handheld Compact Microphone for Turbine
Extended
The Compact Microphone comes with a Push-To-Talk (PTT) button and 3-meter long cable.
● EMMAI-2H: used with Turbine Industrial intercoms
● EMMAX-1H: used with Turbine Ex intercoms
3.4.1 Connecting EMMAI-2H Microphone to TFIE-x Industrial Intercoms
Plug the IDC connectors on the Compact Microphone cable into the J8 terminal block according to
the pin conguration below.
1
6
5
4
3
2
9
8
7
Yellow Red Blue
EMMAI-2H Microphone Connection
on 9-Pin Terminal J8
Black
PTT-
PTT+
Mic+
Mic-
(shield)
Black (main shield)Chassis Ground
MIC -
GND
