16 Adjust an earlier clamp as follows (Fig 4.4):
16.1 Replace the clamp knob (20) and rotate to position 2.
16.2 Using a 2.5 mm hexagonal wrench, remove the locking grubscrew (20.8) from the shaft (20.3).
16.3 Using a 2.5 mm hexagonal wrench, slacken the adjusting grubscrew (20.7) until the leg is free to
move under its own weight.
16.4 With the knob still in Position 2, slide the leg in and out and gradually tighten the adjusting
grubscrew (20.7) until the clamp begins to grip.

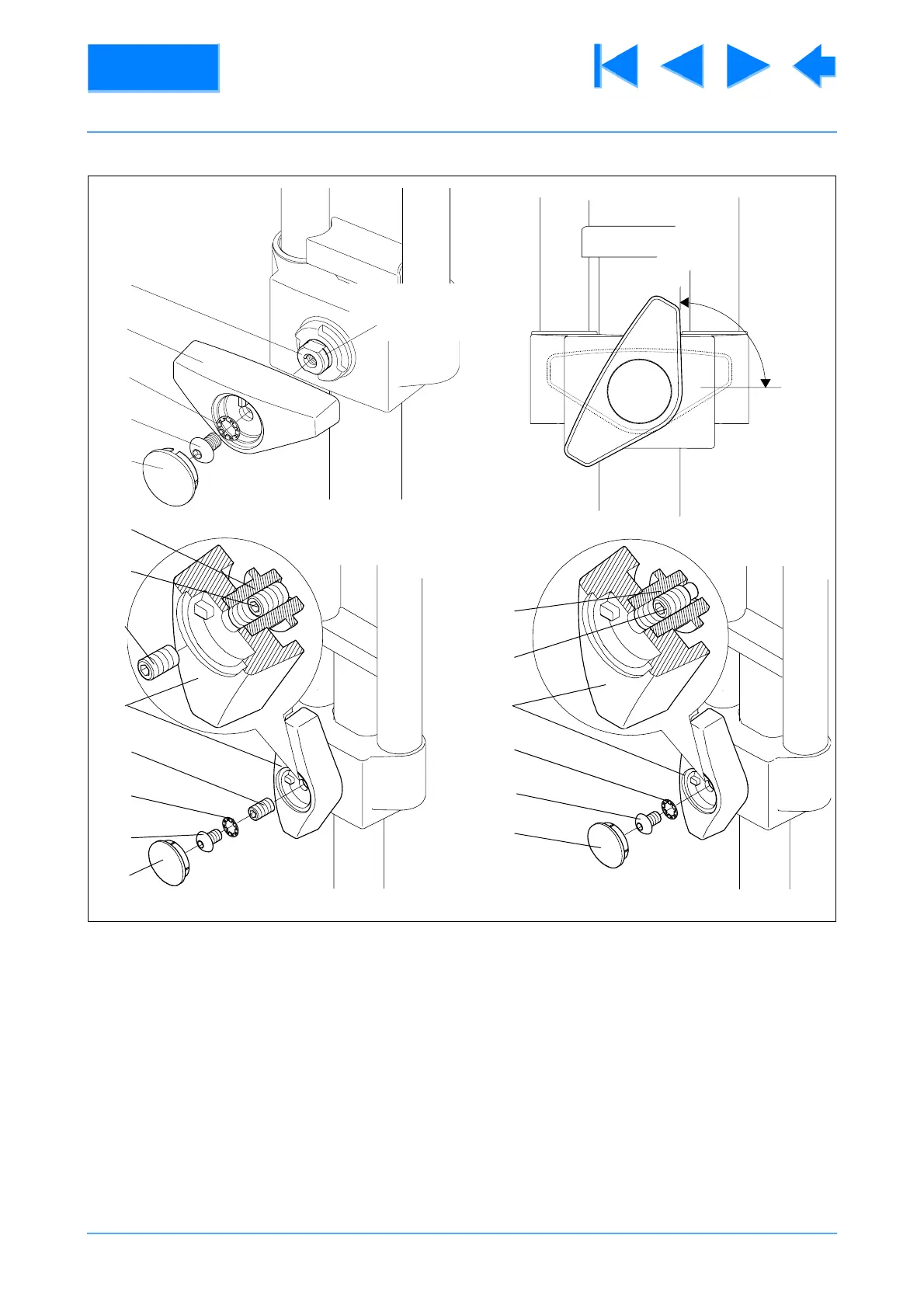

Fig 4.4 ‘Pozi-Loc’ tripod leg - bottom clamp adjustment
(20.8)
(20.7)
(20.8)
(20.4)
(20.5)
(20.6)
(20.3)
(20)
P
O
S
I
T
I
O
N
2
POSITION 1
90°
(20.9)
(20.4)
(20.5)
(20.6)
(20.3)
(20)
Earlier clamp - two grubscrews Later clamp - One grubscrew
(20.5)
(20.4)
(20)
(20.6)
(20.3)
IDENTIFICATION
GROOVE
