Final adjustment
Tilt brake
32 The tilt brake is adjusted by inserting a 2 mm hexagon wrench through the hole in the bottom of the tilt
unit cover (33) and turning the pushrod/spring assembly grub screw (19). Adjust the tilt brake as follows
(Fig 6.9):
32.1 Turn the tilt drag knob fully counterclockwise.
32.2 Operate the tilt brake lever from the OFF to the ON position.
32.3 Brake pressure should be felt after approximately one-third of the lever travel. Turn the grub
screw (19) clockwise to decrease the amount of lever travel, counter-clockwise to increase.
32.4 Operate the tilt brake lever to the OFF position and ensure that the platform is free to move.
Pan brake
33 The pan brake is adjusted by turning the locating pin (14), accessible from under the right-hand side of
the base. Adjust the pan brake as follows (Fig 6.5):

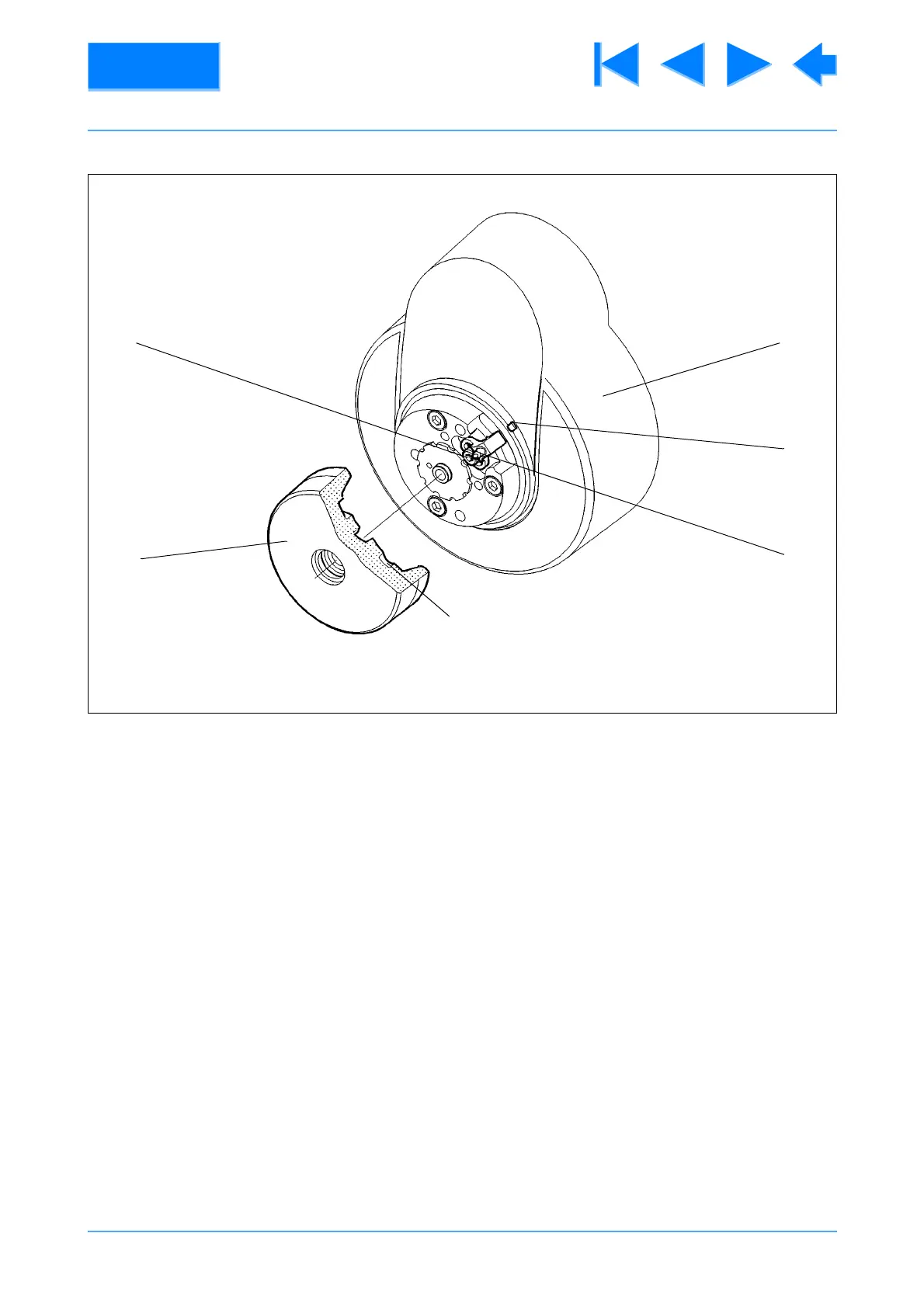

Fig 5.3 Tilt Drag Knob Adjustment
2525.3
TILT_ADJ
25.2
44.1
44
25.1
