Operators guide
21
Refit the battery cover plate [39], ensuring the battery locates in the coverplate. Secure
with three screws [36].
To test, press the button [7] and ensure the lamp is lit for approximately 15 seconds.
Adjustments
After considerable use the platform slide clamp may require adjustment (see ‘Platform slide
clamp adjustment’).
To enable the payload to be correctly balanced, the wedge adaptor may require repositioning
(see ‘Repositioning the wedge adaptor’).
The pan and tilt brakes may require adjustment after prolonged use.
The balance and slide plate calibration may have to be repeated, e.g. after a battery change.

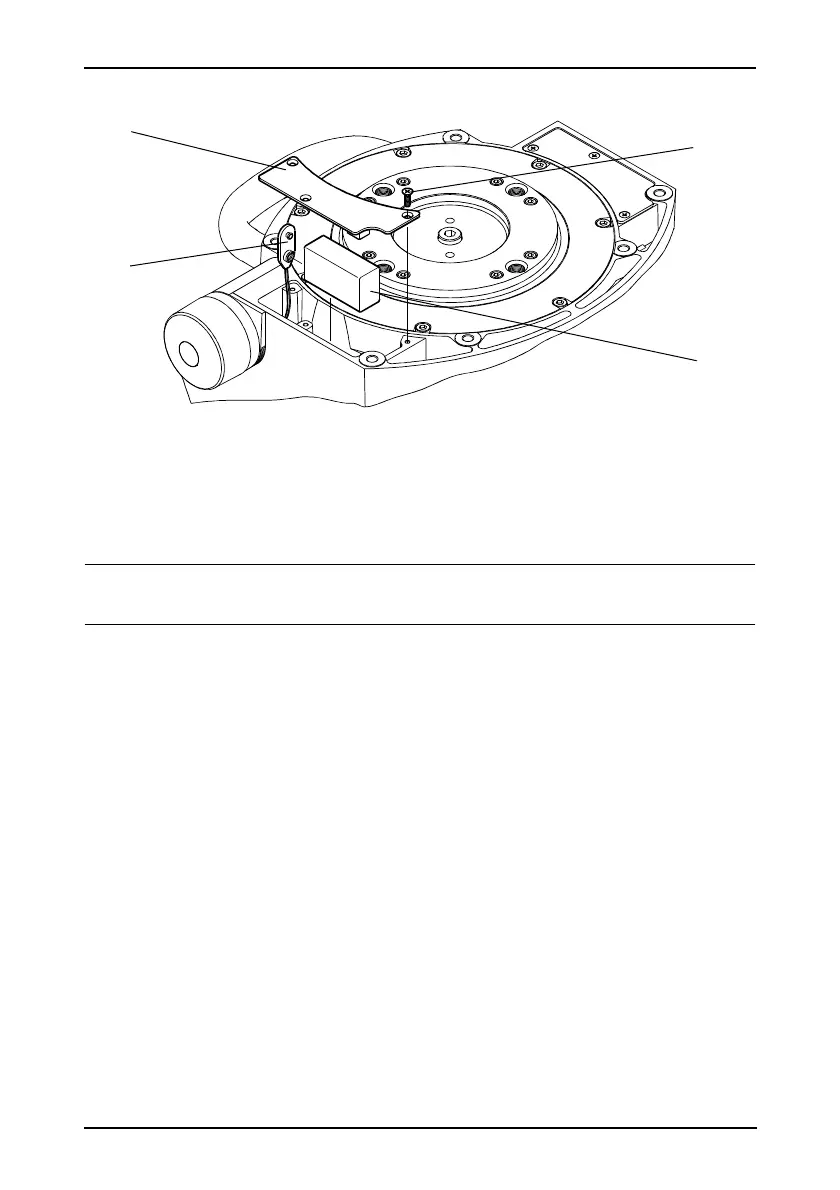

Fig. 9 Installing the battery (bottom view)
NOTE: After a battery change, both the balance and the slide plate sensor will need
calibrating (see page 24 for instructions).
