4 – 11
Press the (ENTER) key to display the MARK mode settings.
Press the or key to select “OFF,” “2 POINT,” “3 POINT,” or “4 POINT,” and then press the
(ENTER) key to confirm.
Press the (PAUSE) key to cancel PAUSE mode.
This sets the distance between the registration marks and changes the initial registration-mark scanning
position. Avoiding reading areas that obviously do not include registration marks increases the registration-
mark reading speed and minimizes the possibility of incorrect reading due to other marks on the medium.
Press the (PAUSE) key to switch to PAUSE mode.
Press the (NEXT) or (PREV.) key until the following menu is displayed.
Press the (ENTER) key to display the Auto Reg. Mark submenu, and then press the (NEXT) or
(PREV.) key until the following menu is displayed.
Step
4
Step
5
Step
6

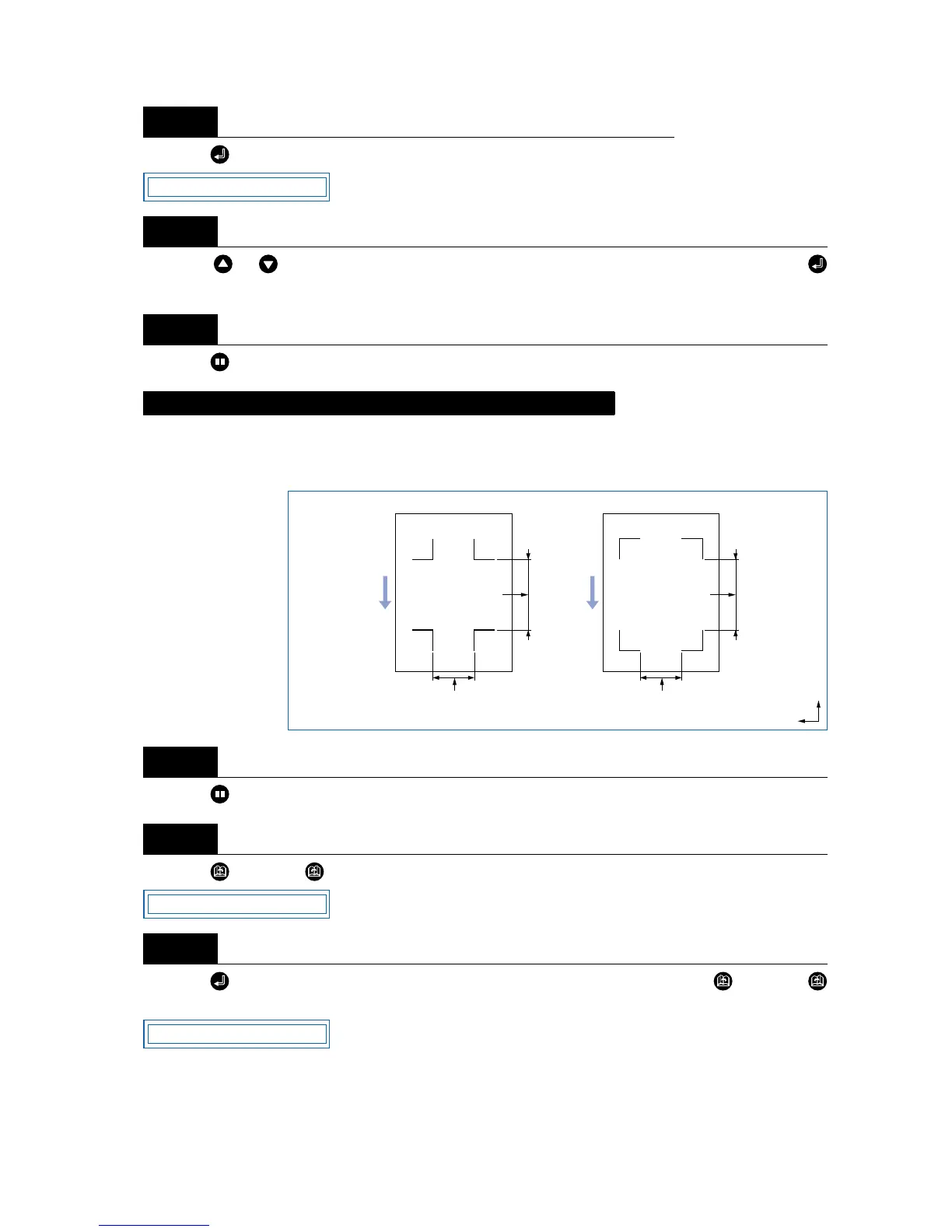

Setting the Registration-mark detection movement distance
Step
1
Step
2
Step
3
MARK MODE OFF
Registration-mark pattern 1
Medium feed direction
Registration-mark pattern 2
Set the registration-
mark detection
movement distance X
based on this distance.
Set the registration-mark
detection movement distance
Y based on this distance.
Set the registration-
mark detection
movement distance X
based on this distance.
Set the registration-mark
detection movement distance
Y based on this distance.
X
Y
AUTO REG. MARK
MARK POSITION
To Next Page
