-9-
INSTALLATION
AV EQUIPMENT

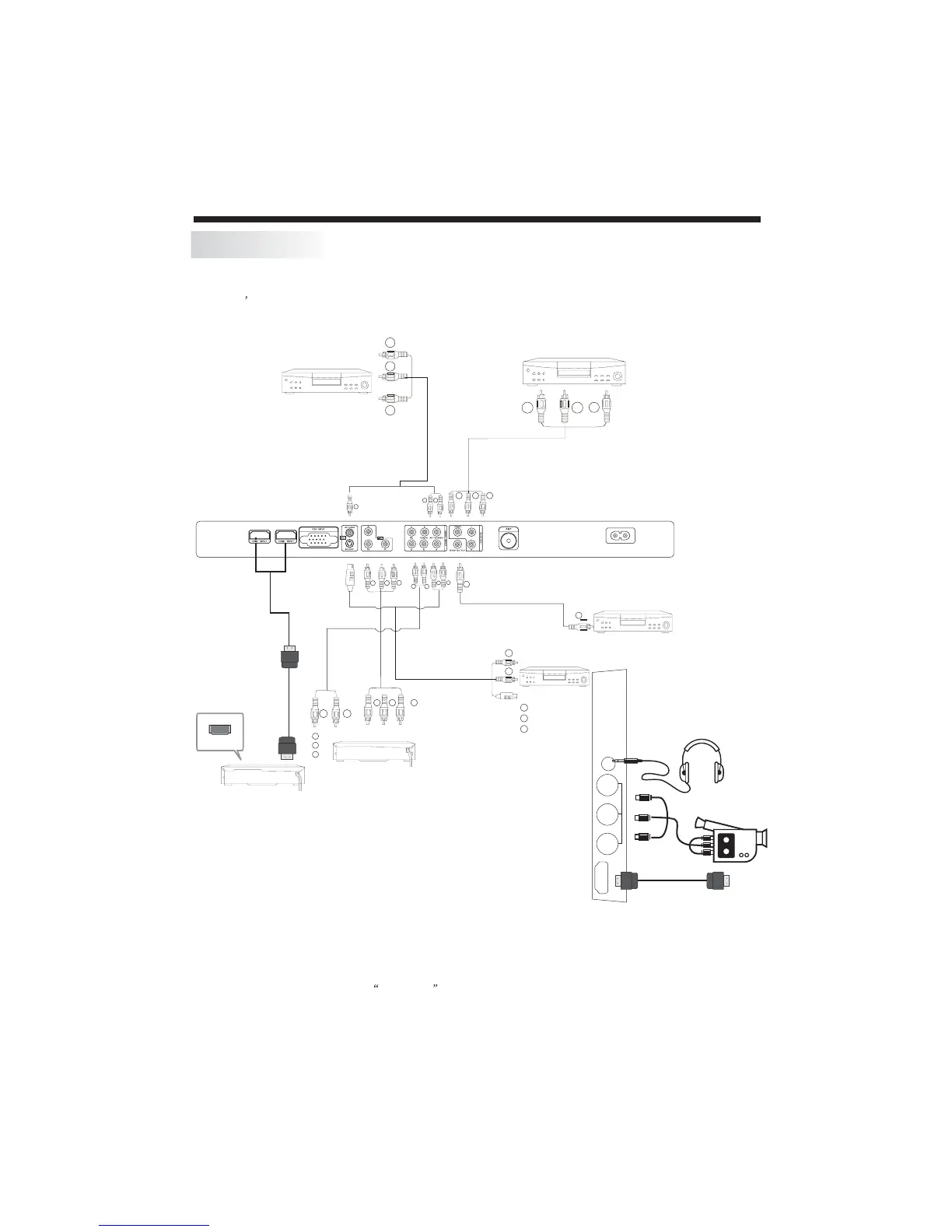

This TV provides two groups of AV ,one S-Video,one group of YPbPr for convenient connection
to VCR,DVD or other video equipment,three group of HDMI for HD signal input Please refer to
the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo
system, etc.....
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i,1080p.
NOTE:
When HDMI3 port get DVI signal, the AV2 Audio channel will change to receive the audio from HDMI3 port.
To audio
outputs
VIDEO EQUIPMENT
VIDEO EQUIPMENT with YPbPr
To audio Input
with S-video
Terminal
With VIDEO Input Terminal
TO
VIDE
O
Input
Black (s-video)
White(audol L)
Red(audio R)
Y/C
W
R
Y
W
R
R
W
W R
output
To s-video
G
B
R
G
B
R
Pr
Y
Pb
R
G
B
HDMI
Y
From Coaxial SPDIF
output
VIDEO RECORDER
Y
To audio
Output
With VIDEO
terminal
VIDEO EQUIPMENT
R
W
Y
output
To video
W R
W
R
W
R
Y
W
R
with SPDIF Input
terminal
Y
1
2
AC INPUT
100-240V~50/60Hz
HEADPHONE
Video
L
R
HDMI 3INPUT
AV2
