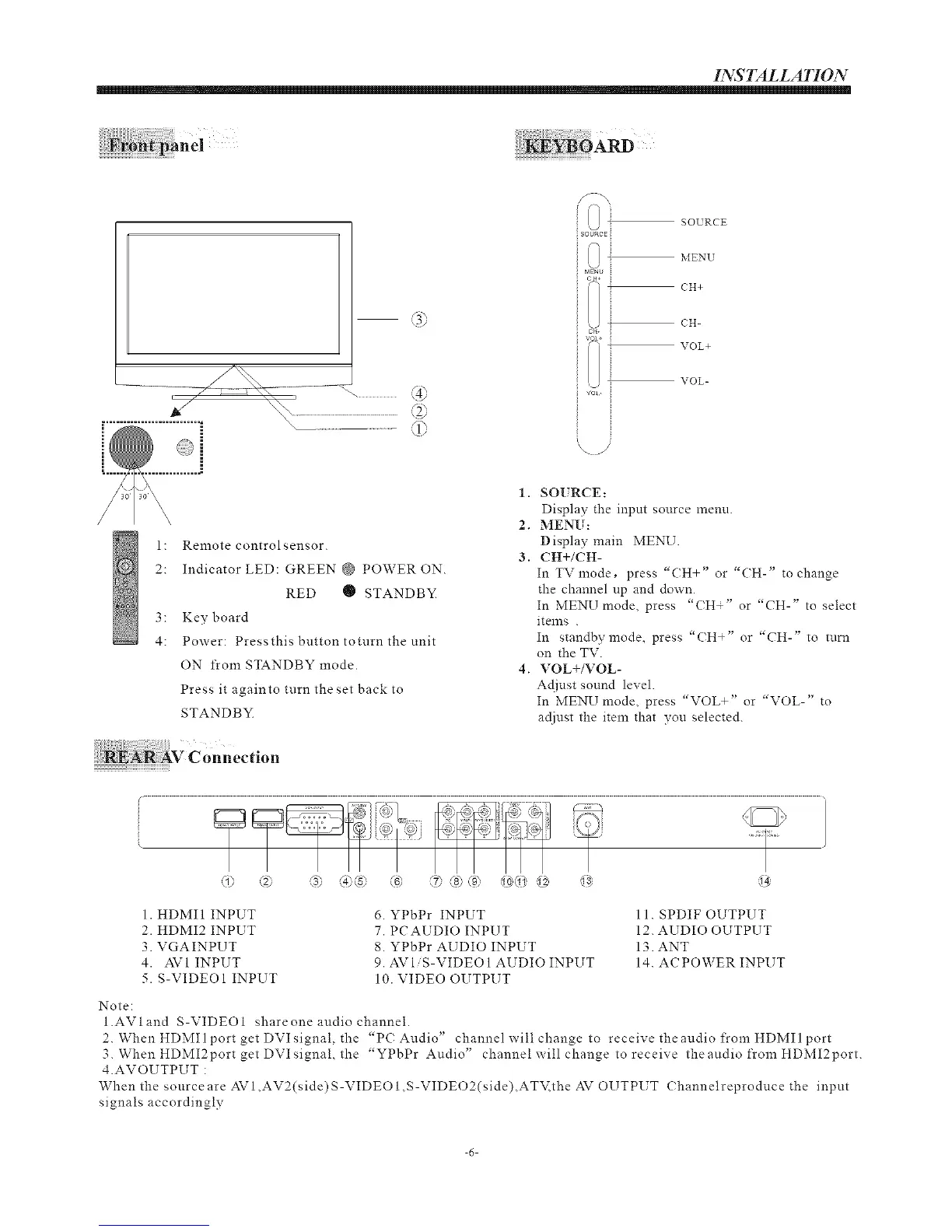

INSTALLATION
. ,9
1: Remote control sensor.
2: Indicator LED: GREEN @ POWER ON.
RED O STANDBY
3: Key board
4: Power: Pressthis button toturn the unit
ON from STANDBY mode.
Press it againto turn theset back to
STANDBY
i i'l souRcE
iso_oEi
;_l MENU
CH+
CH-
1. SOl RCE:
Display the input source menu.
2. MENU:
Display main MENU.
3. CH+/CH-
In TVmode, press "CH+" or "CH-" to change
the channel up and down.
In MENU mode, press "CH+" or "CH-" to select
items .
In standby mode, press "CH+" or "CH-" to turn
on the TV.
4. VOL+/VOL-
At[just sound level.
In MENU mode, press "VOL+" or "VOL-" to
at[just the item that you selected.
1. HDMII INPUT 6. YPbPr INPUT 11. SPDIF OUTPUT
2. HDMI2 INPUT 7. PCAUDIO INPUT 12. AUDIO OUTPUT
3. VGAINPUT 8. YPbPr AUDIO INPUT 13. ANT
4. AV1 INPUT 9. AV1 S-VIDEO1 AUDIO INPUT 14. ACPOWER INPUT
5. S-VIDEO1 INPUT 10. VIDEO OUTPUT
Note:
1.AVland S-VIDEO1 shareone audio channel.
2. When HDMI 1port get DVI signal, the "PC Audio" channel will change to receive the audio from HDMI 1port
3. WhenHDMI2portgetDVIsignal, the "YPbPr Audio" channel will change to receive theaudiofromHDMI2port.
4.AVOUTPUT :
When the source are AV 1,AV2(side)S-VIDEO 1,S-VIDEO2(side),ATMthe AV OUTPUT Channelreproduce the input
signals accordingly
-6-
