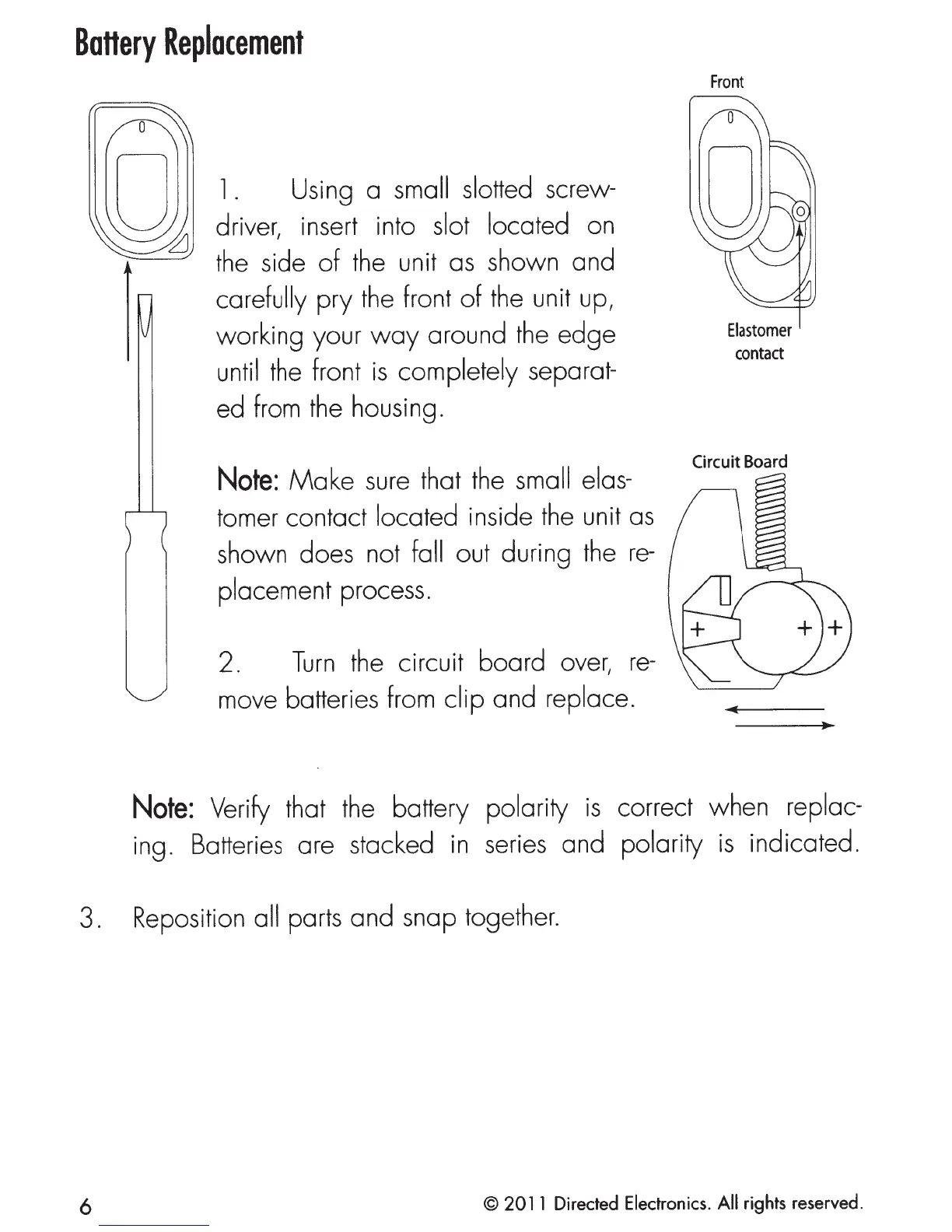

Viper Responder One - Battery Replacement

BaHery
Replacement
1 . Using a
small slotted
screw-
driver, insert into
slot located
on
the
side
of
the
unit as shown and
carefully
pry
the
front of
the
unit up,
working your
way
around
the
edge
until
the
front
is
completely
separat-
ed from the housing.
Note:
Make
sure
that the
small elas-
tomer contact located inside
the
unit
as
shown does not
fall
out during
the
re-
placement
process.
2.
Turn
the
circuit board
over,
re-
move batteries from
clip
and
replace.
Front
Elastomer
contact
Circuit Board
Note:
Verify that
the
battery polarity
is
correct when
replac-
ing. Batteries are stacked
in
series and
polarity
is
indicated.
3. Reposition
all
parts and snap together.
6
©
2011
Directed
Electronics. All
rights reserved.
