Viper TC-3 - AC SLIDE GATE CONTROLLER; Feature Selector DIP Switches

AC SLIDE GATE CONTROLLER

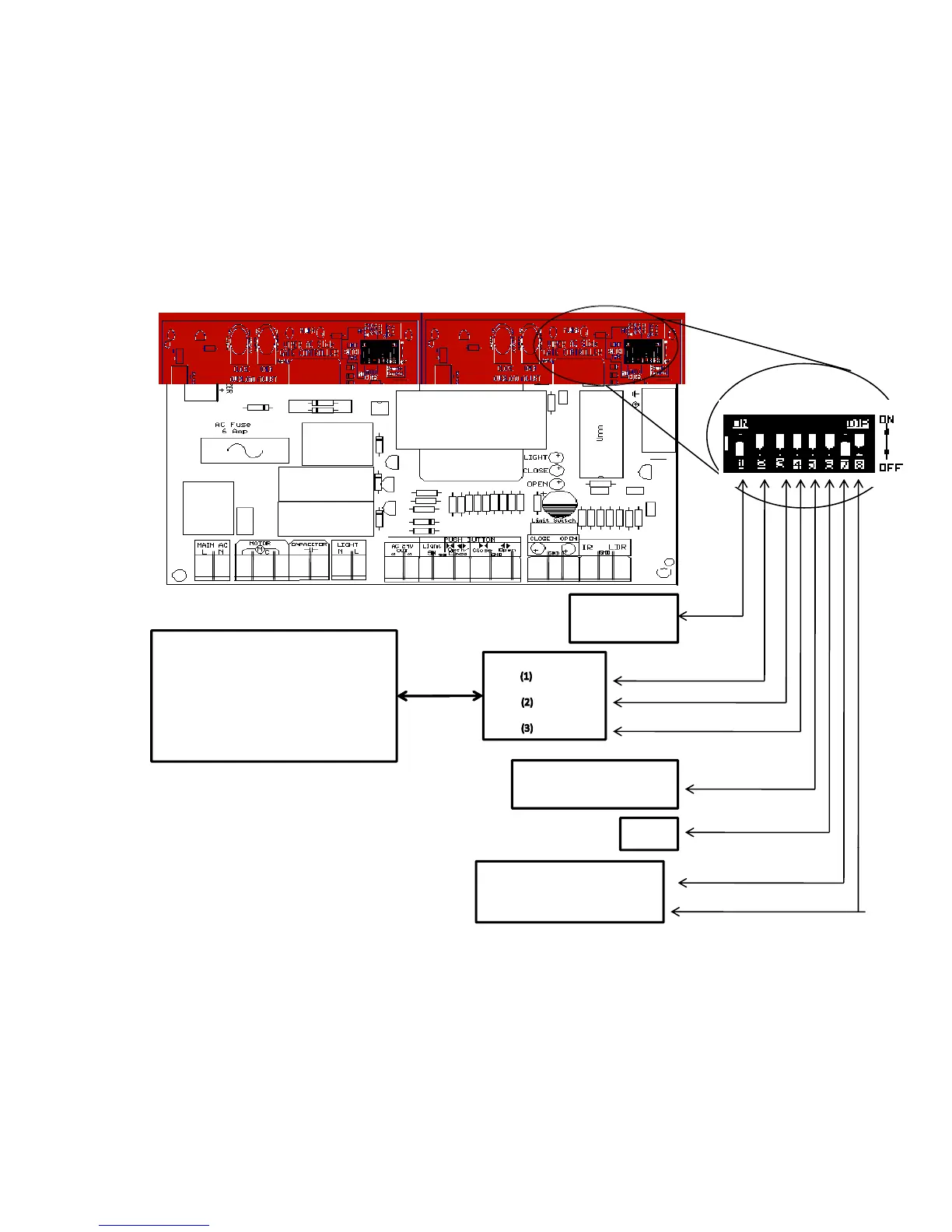

FEATURE SELECTOR
Auto Close Feature
Limit Switch Type
ON: Normally Close
OFF: Normally Open
When using auto close features
l di it h h ld b
DIP 1
10
Auto
Close
Feature
12.5 Seconds
25 Seconds
45 Seconds
on
l
y one
di
p sw
it
c
h
s
h
ou
ld
b
e
ON. The other two dip switch
should be in the OFF posion for
the auto close feature to work
correctly.
DI P 2
DI P 3
DI P 4
Direcon of Gate
ON: Gate Opening to the le
OFF: Gate Opening to the Right
NOT USED
DI P 5
DI P 6
Receiver
Channel One (not used at this me)
Channel Two (not used at this me)
DI P 7
DI P 8
