Viper TC-3 - Chain Brackets

SLIDING GATE OPERATOR
12

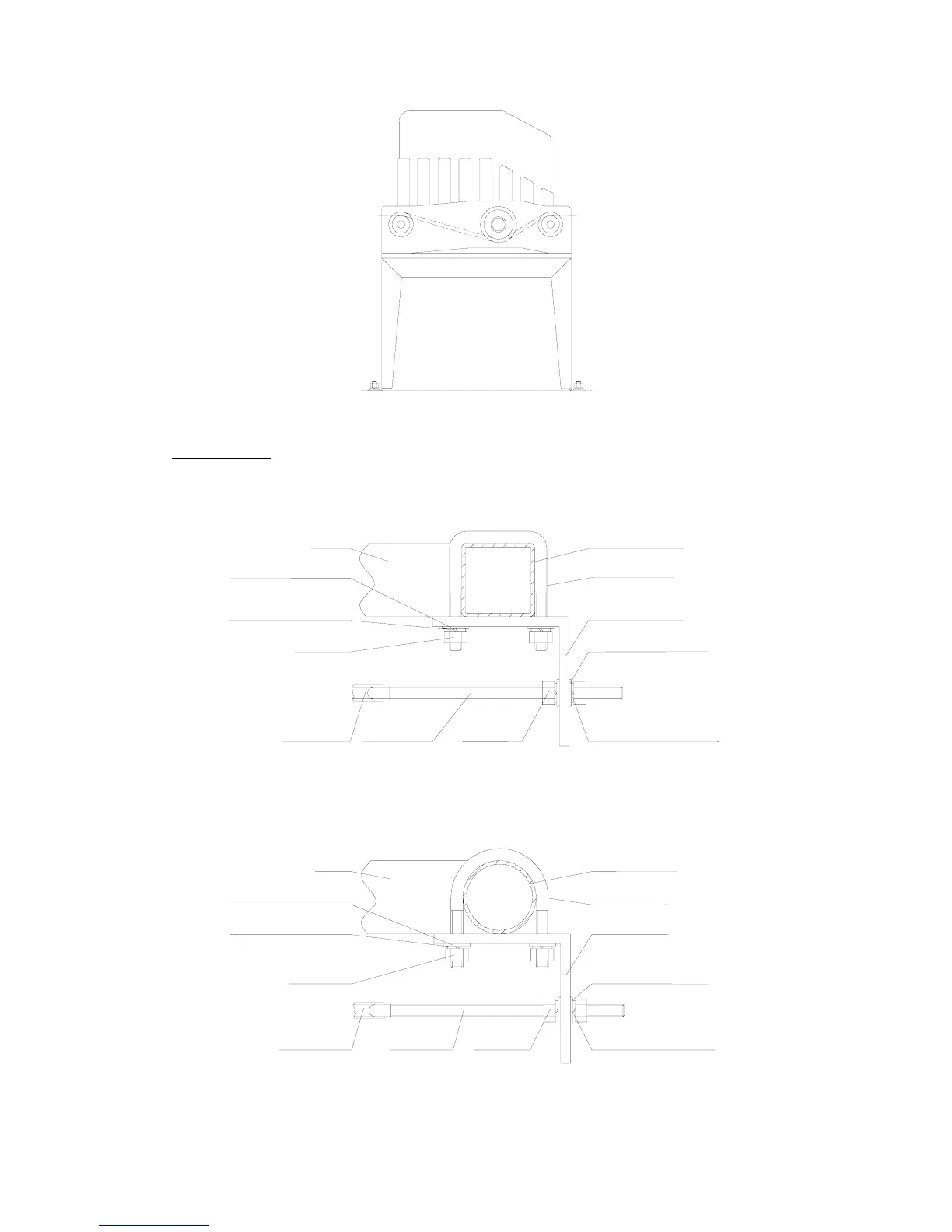

Fig.3
Chain Brackets
Use the appropriate bolts to attach the chain bracket to the frame of the gate. If the gate is of
square frame style, use the square bolts shown.
Spring washer (Φ 8)
Plain washer (
Φ 8)
"L" bracket
Square bolt
Nut (M8)
Chain bolt
Master link
Nut (M6)
Spring washer (
Φ 6)
Plain washer (
Φ 6)
Gate
Square frame
Fig.4
If the gate is of round frame style, use the round bolts shown.
Round bolt
"L" bracket
Plain washer (
Ф 8)
Spring washer (
Ф 8)
Nut (M8)
Chain bolt
Master link
Nut (M6)
Spring washer (
Ф 6)
Plain washer (
Ф 6)
Gate
Round frame
Fig.5
