TC-9 Viper ™ Gate System
Residential Sliding Gate Operator
14

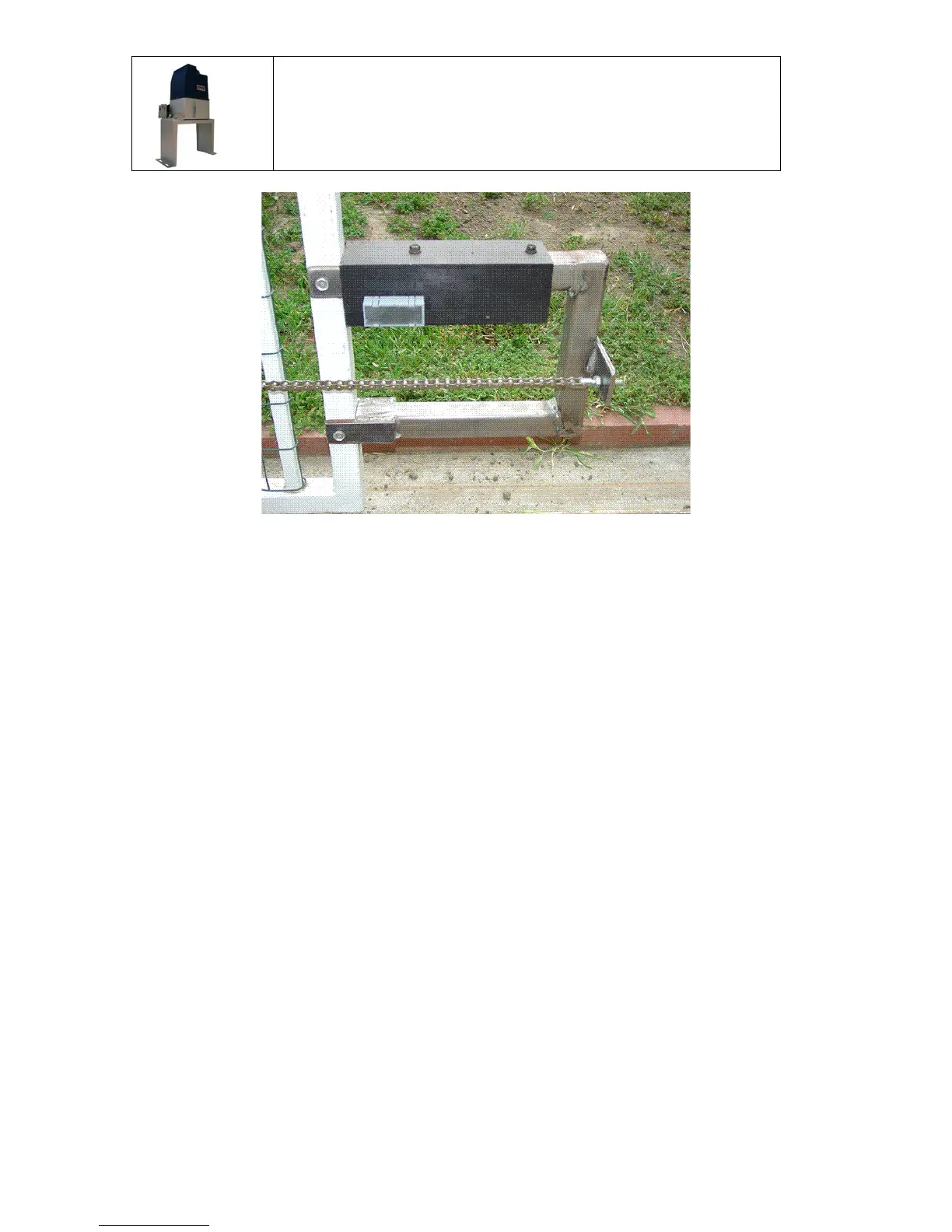

In this configuration, the tail extension was made from the same material as the gate, 1-
½” square tubing, and is 12” long and 10” high. At the right side, the chain bolt plate
was wielded on at the shop as were the two U clamps that attach the extension to the gate
(left). A piece of angle iron was used to support the closing magnet, and mounting holes
were drilled (4) ½ inches apart that allows for the magnet adjustment. Two bolts were
used to attach the angle iron to the extension.
