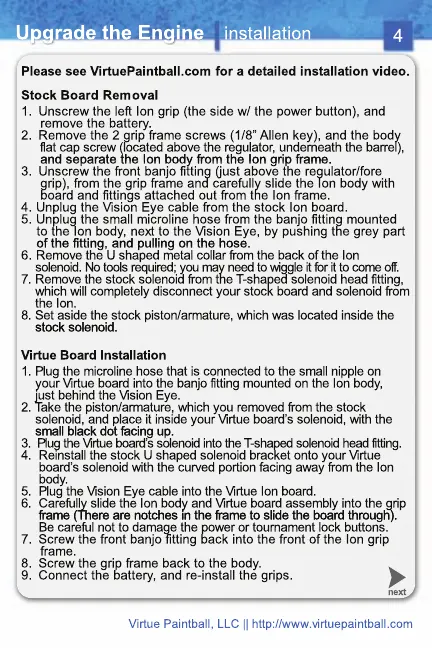

Upgrade the Engine

installation

Virtue Paintball, LLC || http://www.virtuepaintball.com

Please see VirtuePaintball.com for a detailed installation video.

Stock Board Removal

1. Unscrew the left Ion grip (the side w/ the power button), and

remove the battery.

2. Remove the 2 grip frame screws (1/8” Allen key), and the body

flat cap screw (located above the regulator, underneath the barrel),

and separate the Ion body from the Ion grip frame. and separate the Ion body from the Ion grip frame.

3. Unscrew the front banjo fitting (just above the regulator/fore

grip), from the grip frame and carefully slide the Ion body with

board and fittings attached out from the Ion frame.

4. Unplug the Vision Eye cable from the stock Ion board.

5. Unplug the small microline hose from the banjo fitting mounted

to the Ion body, next to the Vision Eye, by pushing the grey part

of the fitting, and pulling on the hose. of the fitting, and pulling on the hose.

6. Remove the U shaped metal collar from the back of the Ion

solenoid. No tools required; you may need to wiggle it for it to come off.

7. Remove the stock solenoid from the T-shaped solenoid head fitting,

which will completely disconnect your stock board and solenoid from

the Ion.

8. Set aside the stock piston/armature, which was located inside the

stock solenoid. stock solenoid.

Virtue Board Installation

1. Plug the microline hose that is connected to the small nipple on

your Virtue board into the banjo fitting mounted on the Ion body,

just behind the Vision Eye.

2. Take the piston/armature, which you removed from the stock

solenoid, and place it inside your Virtue board’s solenoid, with the

small black dot facing up. small black dot facing up.

3. Plug the Virtue board’s solenoid into the T-shaped solenoid head fitting.

4. Reinstall the stock U shaped solenoid bracket onto your Virtue

board’s solenoid with the curved portion facing away from the Ion

body.

5. Plug the Vision Eye cable into the Virtue Ion board.

6. Carefully slide the Ion body and Virtue board assembly into the grip

frame (There are notches in the frame to slide the board through). frame (There are notches in the frame to slide the board through).

Be careful not to damage the power or tournament lock buttons.

7. Screw the front banjo fitting back into the front of the Ion grip

frame.

8. Screw the grip frame back to the body.

9. Connect the battery, and re-install the grips.
