VIRTUFIT iConsole - STEP 2

5
Virtufit iConsole Total Fit Crosstrainer
EN

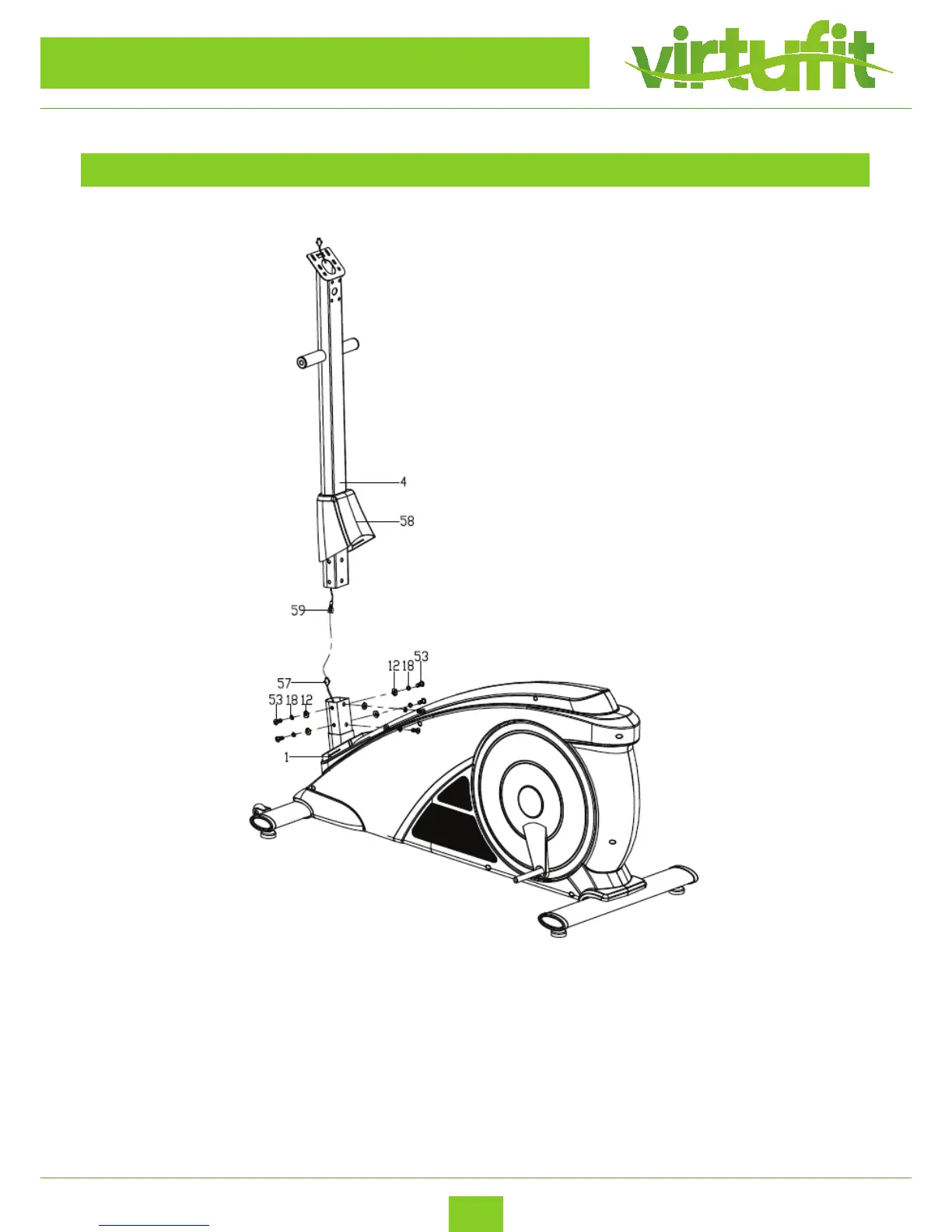

– Insert the Handlebar post (4) through the Protective guard (58);
–
– Connect the Extension sensor wire (59) with the Sensor wire (57) properly at rst, then lock the
Handlebar post (4) onto the Main frame (1) with the Allen bolts (53), Spring washers (18) and Flat
washers (12), and then put on the Protective guard (58) in place.
STEP 2
ASSEMBLY INSTRUCTIONS
