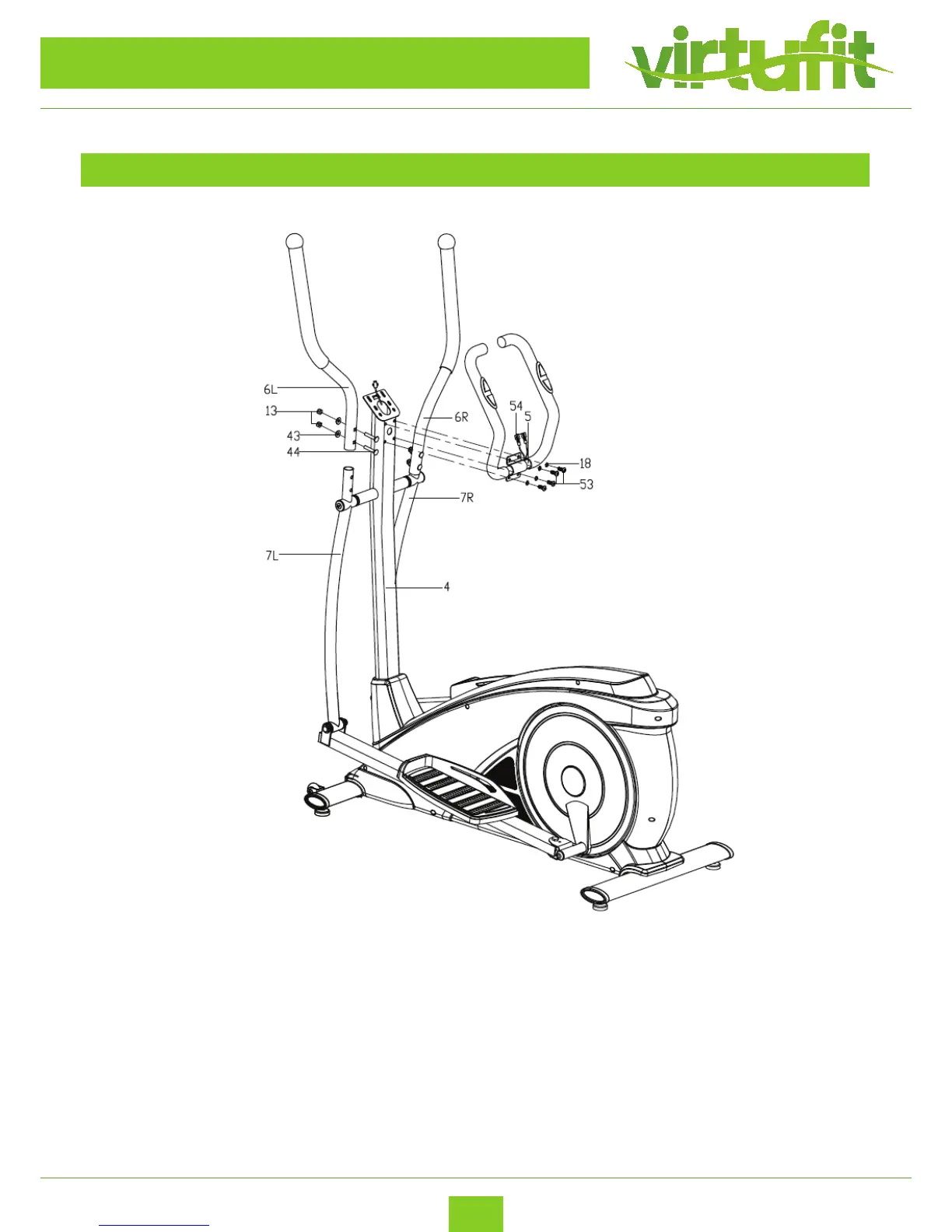

STEP 4
– Lock the Handlebar (6L/R) on the Swing tube (7L/R) tightly with the Carriage bolts (44), Arc
washers (43) and Nylon nuts (13);
–
– Thread the Hand pulse wires (54) into the hole of Handlebar post (4) and then take it out from the
computer bracket. Lock the Fixed handlebar (5) on the Handlebar post (4) tightly with the Allen
bolts (53) and Spring washers (18) as shown.
ASSEMBLY INSTRUCTIONS
