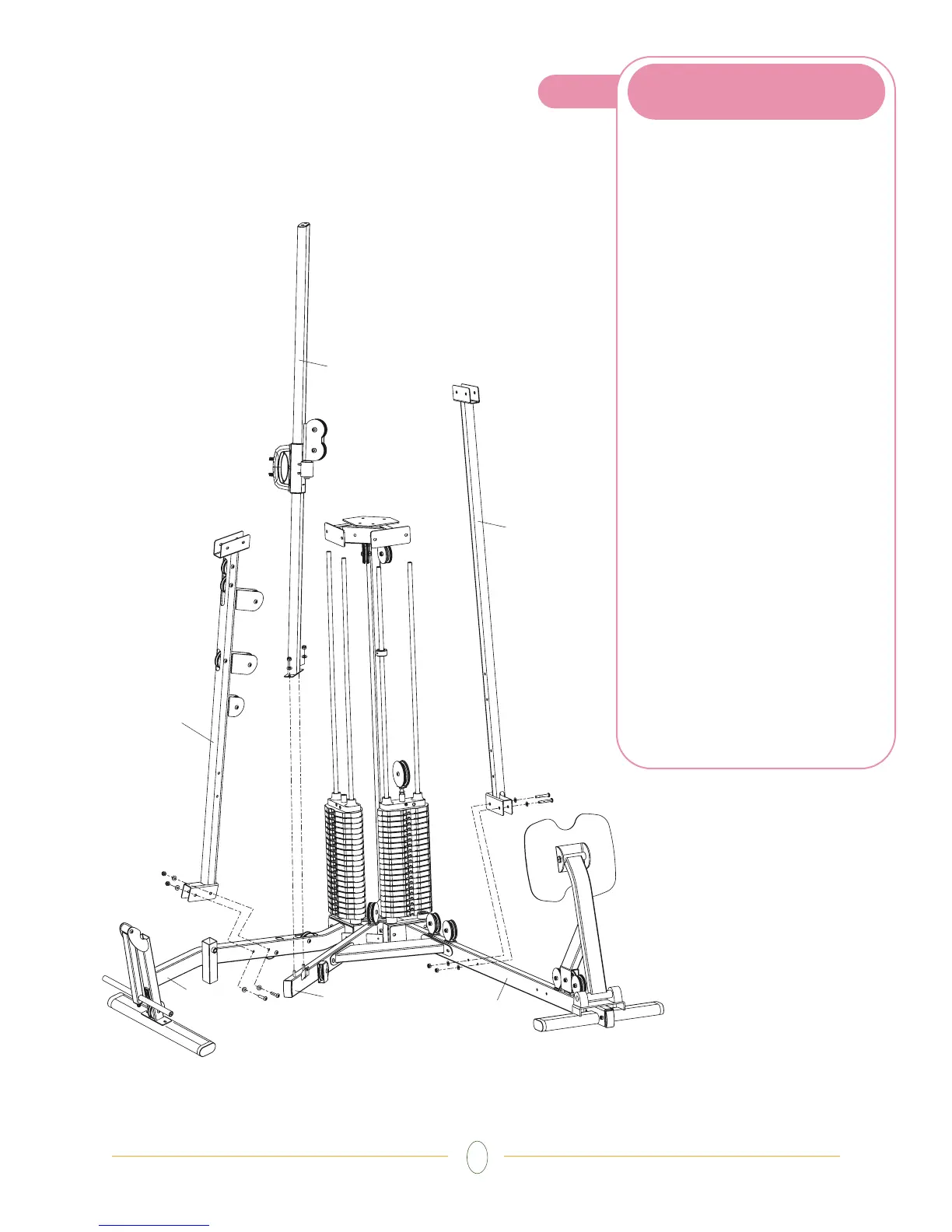

STEP
• With angled end down and pulley
brackets facing weight stack, place the
press arm upright (AB2) over the press arm
floor support (AC1), aligning the holes in
both components. Slide two bolts
(M10x62) with flat washers (10.2x22x2)
through holes and secure each of the bolts
with another flat washer and two nylon
nuts (M10).
• Take the adjustable handle assembly
and slide onto the functional arm upright
(AH3), making sure the handle is on the
side with the numbers. You will need to
squeeze the handle to slide over the
adjustment holes in the upright. Place the
functional arm upright (AH3), numbers
facing press arm upright (AB2), over the
exposed bolt ends on the functional arm
floor support (AC2). Secure the connection
with a flat washer (10.2x22x2) and a
nylon nut (M10) over each bolt end.
• With the hole for the cable on the bottom,
place the leg press upright (AB4) over the
leg press floor support (AC3). The upright
should angle upwards towards the weight
stacks. Align the holes in the upright with
the center holes in the floor support. Slide
two bolts (M10x62) with flat washers
(10.2x22x2) through the connection.
Secure each of the bolts with another flat
washer and a nylon nut (M10).
