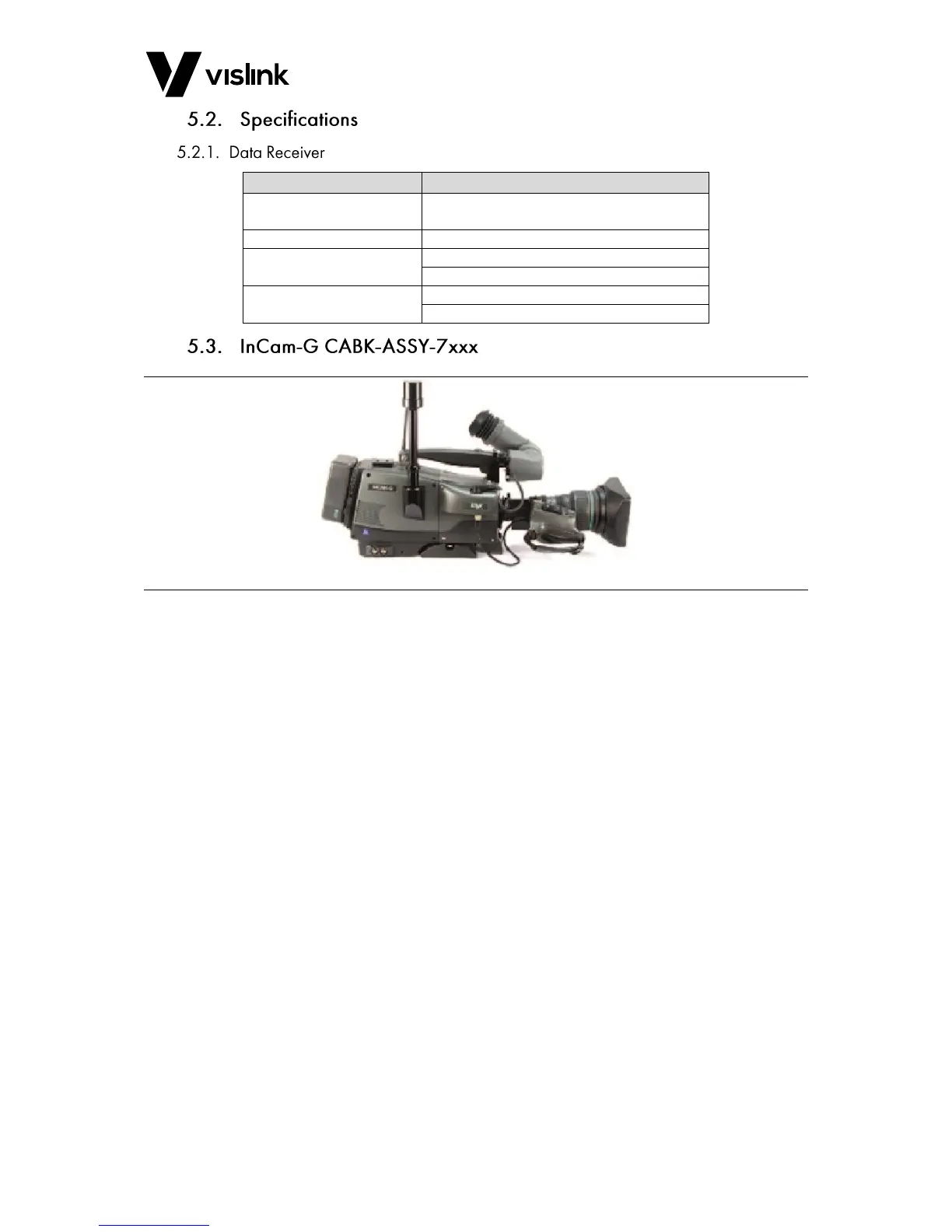

Figure 5-2 InCam-G Overview
The InCam-G unit is a fully integrated dockable Camera Back for the Grass Valley LDX
camera.
The unit has a built-in MVL Transmitter that sends video and audio generated by the LDX
camera to a Receive point.
The unit also has a built-in telemetry Data receiver.
The FocalPoint Camera Control system offers remote control operation/functionality to the
camera using one-way data from the Vislink OCP5 controller.
NOTE: Return data is available to the OCP5 if the user data out from the MVL Receiver is
connected directly to the OCP5 @ 115200 baud.
You can control the camera from a PC with Windows™ OS installed, using the Vislink
software IncamProgrammer.exe. User instructions are available from the user guide,
which is accessed from the GUI.
The configuration cable from the computer connects to the Config 4-Pin BINDER socket.
The LDX camera on/off switch is the master power for the camera and the InCam-G.
The InCam-G has an isolated power switch after the camera is powered:
Off - Camera operates with the InCam-G powered off.
Standby - InCam is configurable but not Transmitting or Receiving.
On - Camera and InCam are powered.
