Vislink DR07 - OCP5 Connector Pinouts: OCP I;F and Data In;Out

User Manual Focal Point
Operators Control Panel (OCP5) OCP5-ASSY-7XXX
Issue No: M Page: 45
Ref: FOCL-ASUM-8xxx Copyright © 2017 Vislink plc

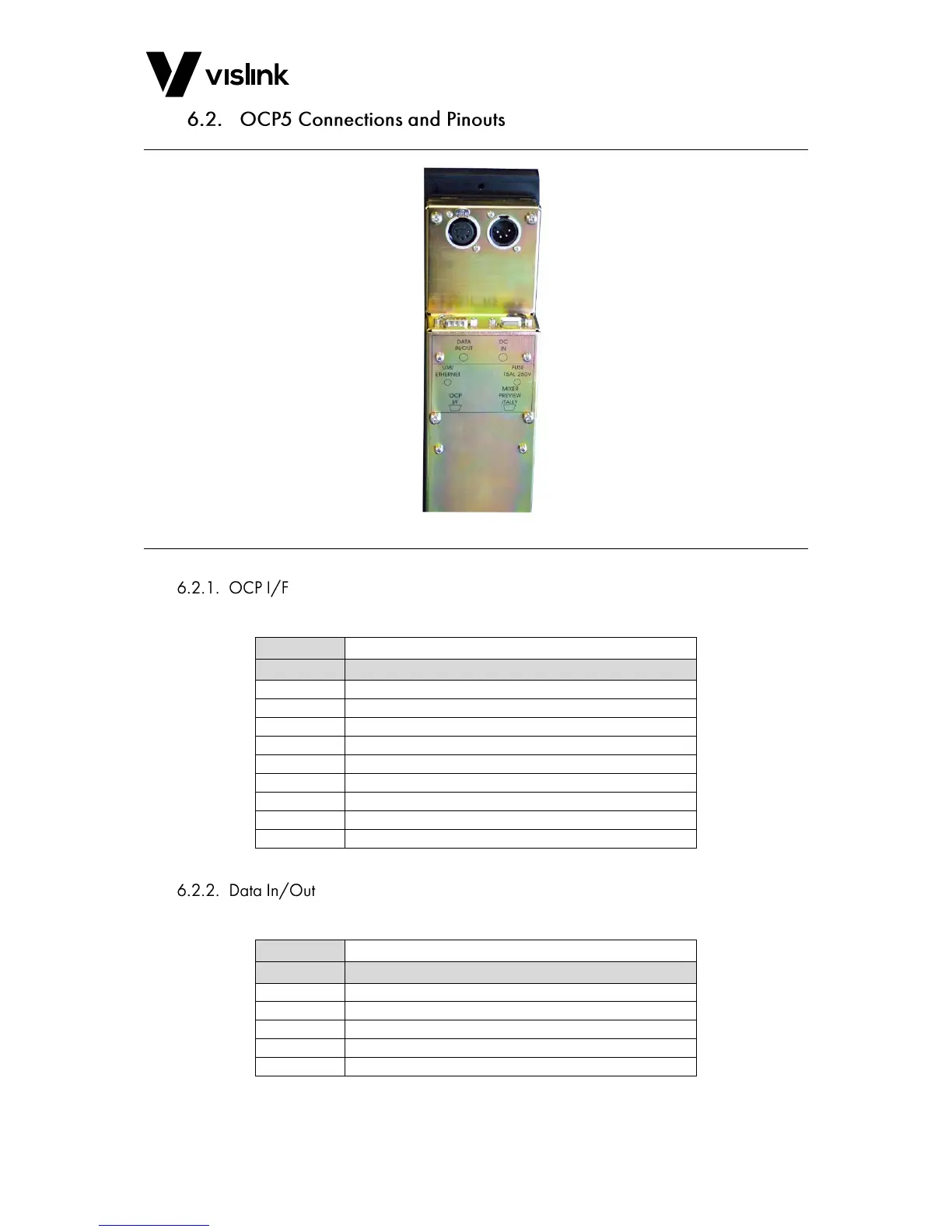

Figure 6-2 OCP5 Rear Connections Overview
This port is used to directly connect to the Camera Control Interface Unit.
Connector
D-Type 9-Pin
Pin
Signal
1
+VIN
2
+VIN
3
TALLY_DRY_A
4
TALLY_DRY_B
5
GND
6
GND
7
TXD-
8
TXD+
9
NC
This port is used for Return data from the User Data port of the MVL Receiver (if used).
Connector
XLR 5-Pin
Pin
Signal
1
GND
2
TXD-
3
TXD+
4
RXD-
5
RXD+
