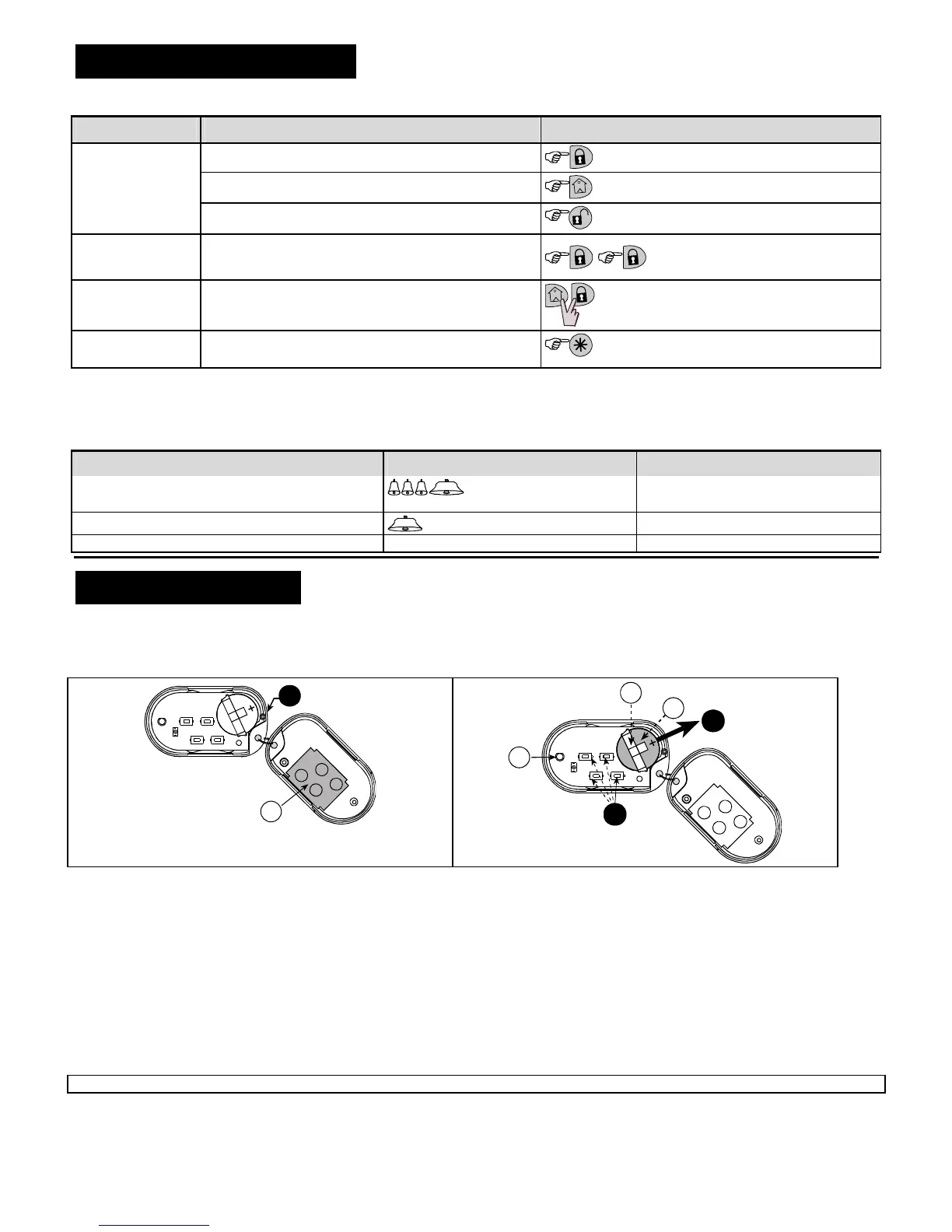

2 D-302416 KF-234 PG2 Installation Instructions
3. USING THE KEYFOB
3.1 Arming the system
Step Functions User Actions
1
Arm AWAY
Arm HOME
Disarm (OFF)
2
LATCHKEY
3
Panic alarm
( 2 sec.)
4
AUX
3.2 Panel Response to Keyfob Commands
When executing a command, the keyfob's LED blinks red once to indicate transmission of the command to the control panel. If the operation is
successfully completed, the green LED lights momentarily and a "happy tune" is heard. If the operation fails or cannot be completed, for
example, when the system is "not ready", the red LED lights steadily and a "sad tune" is heard.
Panel Response Buzzer Indication LED Indication
Success: Operation is successfully completed
Happy (success) beep
Momentary GREEN
Fail: Operation failed
Sad (failure) beep
Momentary RED
No communication: Control panel does not respond.
None None
4. MAINTENANCE
4.1 Replacing the Battery
A replacement 3V battery, CR-2032, is available from hardware and electrical supply stores. Replace the battery as shown in Figure 2.
Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer's instructions.
1
A
3
2
B
C
D
1. Remove backside screw and open the cover.
2. Using the screwdriver, push out the battery from its holder and
install new battery (polarity "+" as shown).
3. Test the unit by momentarily pressing one of the Transmit
buttons – the LED should light. Put back the cover and re-attach
it with the screw.
A. Button pad (make sure that it remains in its place).
B. LED indicator.
C. Battery holder.
D. Battery
Caution!
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to manufacturer's instructions.
Figure 2: Battery Replacement
4.2 Cleaning
The keyfob may get dirty if touched with greasy fingers. Clean it only with a soft cloth or sponge moistened lightly with a mixture of water and mild
detergent, and wipe it dry immediately.
The use of abrasives of any kind is strictly forbidden. Also never use solvents such as kerosene, acetone or thinner.
