FOOTREST LENGTH REGULATION
• The footrest has a five-stage (or seven stage) length adjustment.
• To change the length of the footrest, remove two footrest locks on both sides of the
footrest (Fig. 23.)
• Select required length on the footrest, by using the holes in footrest frame.
• Next insert the footrest locks into the holes.
• It is important that each side footrest locks were placed in holes at the same height.

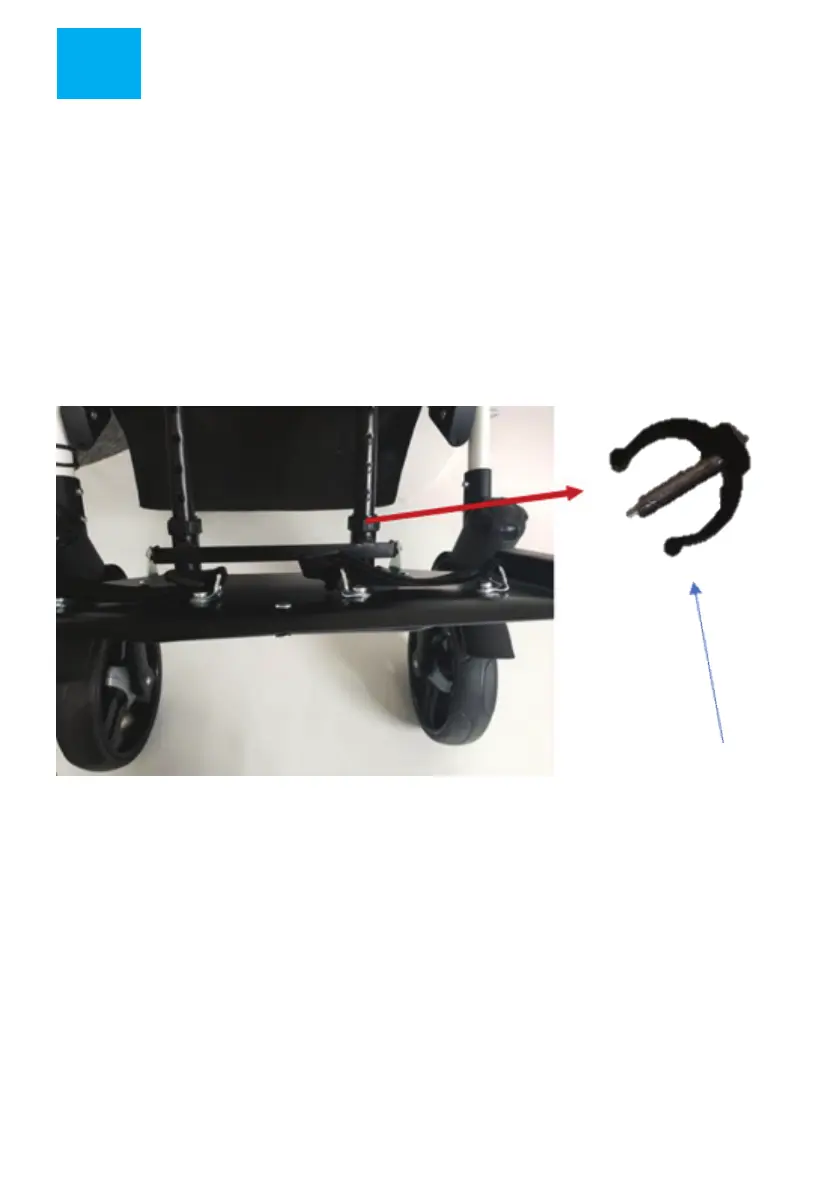

Fig 23. Footrest regulation scheme
Footrest locks closeup
• Select required length on the footrest, by using the holes in footrest frame.
• Next insert the footrest locks into the holes.
• It is important that each side footrest locks were placed in holes at the same height.
