M
ODE
L: JUNIOR
PLUS 2 & 3
LANGUAGE: ENGLISH VERSION: 2022-01
VITEACARE.COM 23

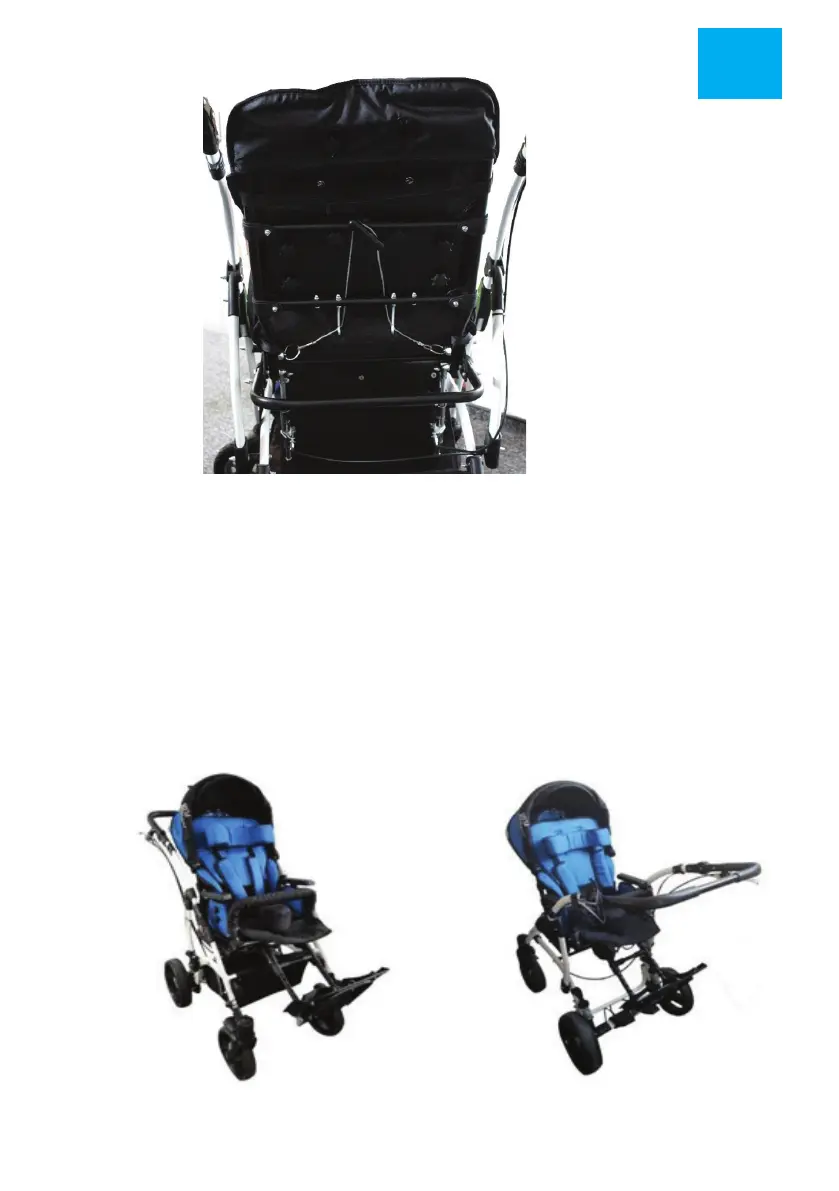

Fig 29B. Angle adjustment
DIRECTION OF TRAVEL ADJUSTMENTS
• Stroller offers the ability to change settings for the seat relative to the direction of travel.
• To make changes, open the seat lock on both sides of the stroller.
• Remove the seat from the body corpus. Turn the seat by 180 ° relative to the corpus.
• Place the seat on the corpus in such a way that the „rods” are placed in the seat sockets
(Fig 30). To make changes, open the seat lock on both sides of the stroller.
• Remove the seat from the body corpus.
• Turn the seat by 180 ° relative to the corpus.
• Place the seat on the corpus in such a way that the „rods” are placed in the seat sockets
(Fig 31.).
Fig 31. Rods installationFig 30. Rods installation
