ACTIONS WHILE RUNNING
• Throughout the entire test the actual compliance voltage is measured, and the test current reduced to
maintain a constant voltage if above the user set limit – in this situation the front panel C/V LIMITED
indicator is illuminated. NOTE – if this limiting occurs during the dwell period but the impedance
measurement is within limits then the test is failed with a WIRING FAULT condition.
• On any failure the step is immediately aborted, and optionally the entire test sequence may be aborted.

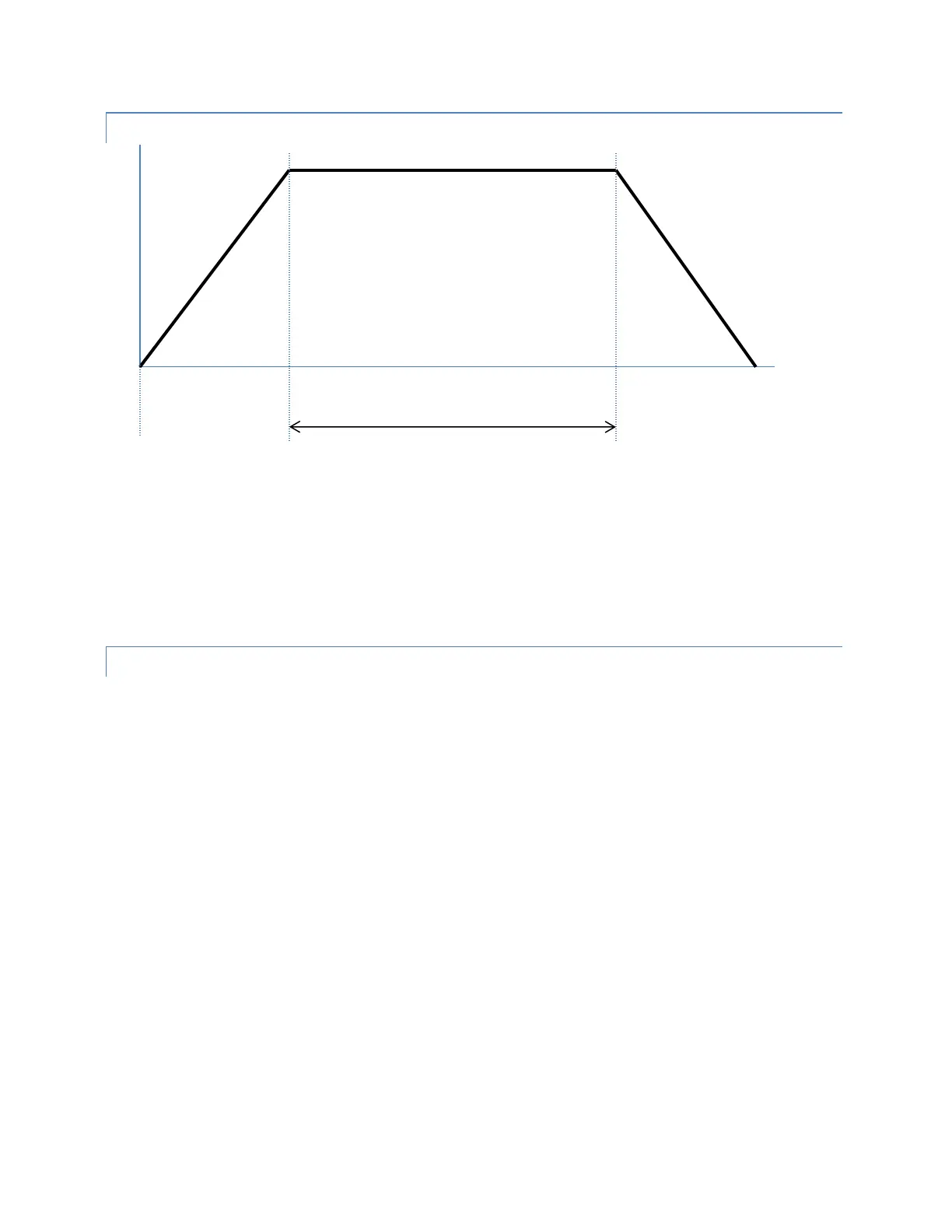

• For the GBez type, the ramp and discharge periods are of zero length.
• For the GB type the discharge period can optionally be skipped if the next step is also a GB type.
CONFIGURING
An example GBez type menu is as follows –
Seq 1 Step 1 GBez
LEVEL:25.000A 60.0Hz
DWELL: 30.0sec
Lim: 0.0u-100.0mΩ
ON FAIL: ABORT SEQ
An example GB type menu is as follows –
Seq 1 Step 1 GB
LEVEL:25.000A 60.0Hz
V CLAMP: 8.0V
RAMP: 1.00sec
DWELL: 30.0sec
Test: RMS
Lim: 0.0u-100.0mΩ
DISCHARGE: FAST
ON FAIL: ABORT SEQ
• LEVEL. Allows the test current level and frequency to be programmed.
• V CLAMP. Only available for the GB type. Allows the open circuit voltage limit to be programmed as a
maximum RMS voltage level.
o The open circuit voltage limit is automatically set to 8Vrms for the GBez type.
To Next Page
