Vivax ACP-12PT35AEF User Manual

ENG VIVAX
27

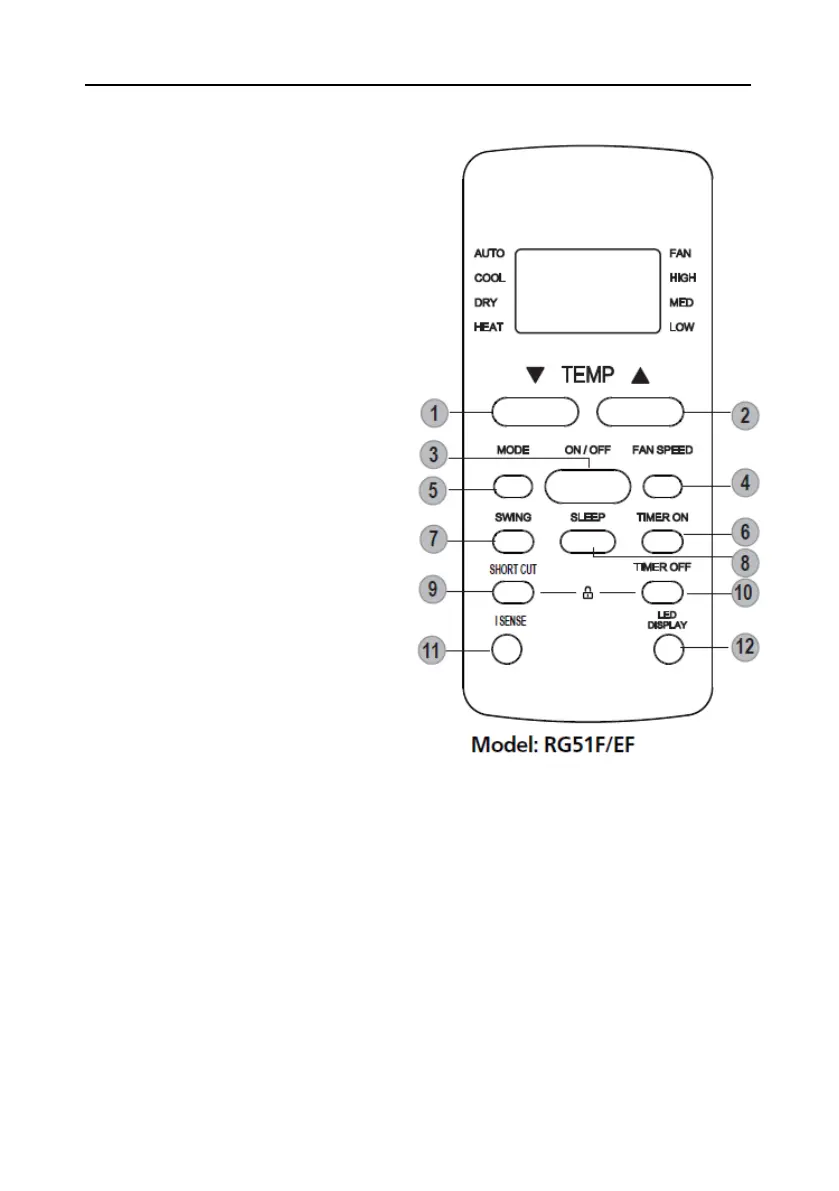

Function buttons
1. TEMP DOWN Button
Push this button to decrease
the indoor temperature setting
in 1°C increments to 17°C.
2. TEMP UP Button
Push this button to increase the
indoor temperature setting in
1°C increments to 30°C
3. ON / OFF Button
Operation starts when this
button is pressed and stops
when the button is pressed
again.
4. FAN SPEED Button
Used to select the fan speed
in four steps:
AUTO - LOW – MED - HIGH
Some models have no MED
FAN feature.
5. MODE Button
Each time the button is pressed, the operation mode is selected in the
sequence of the following:
AUTO - COOL - DRY – HEAT - FAN
NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type.
Heat mode is not supported by the cooling only appliance.
6. TIMER ON Button
Press this button to activate the Auto-on time setting. Each press will
increase the time setting in 30 minutes increments, up to 10 hours, then
at 1 hour increments up to 24 hours. To cancel the Auto-on time setting,
just press the button until the time setting is 0.0.
7. SWING: Starts and stops the horizontal louver movement. Hold down for
2 seconds to initiate vertical louver auto swing feature(some units).

Vivax ACP-12PT35AEF Specifications

General

Type	Monobloc mobile air conditioner
Noise level	65 dB
Refrigerating medium	R410A
Dehumidifier function	Yes
Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.2 l/h
Air conditioner functions	Cooling
Heating capacity in watts (max)	- W
Cooling capacity in watts (nominal)	3500 W
Heating capacity in watts (nominal)	0 W
Cooling energy efficiency (EER, W/W)	2.61
Heating energy efficiency (COP, W/W)	0
Energy efficiency scale	A+++ to D
Power consumption (cooling)	1350 W
Energy efficiency class (heating)	A
Hourly energy consumption (cooling)	1.4 kWh
Hourly energy consumption (heating)	- kWh
Product color	White

Weight and Dimensions

Depth	- mm
Weight	- g
