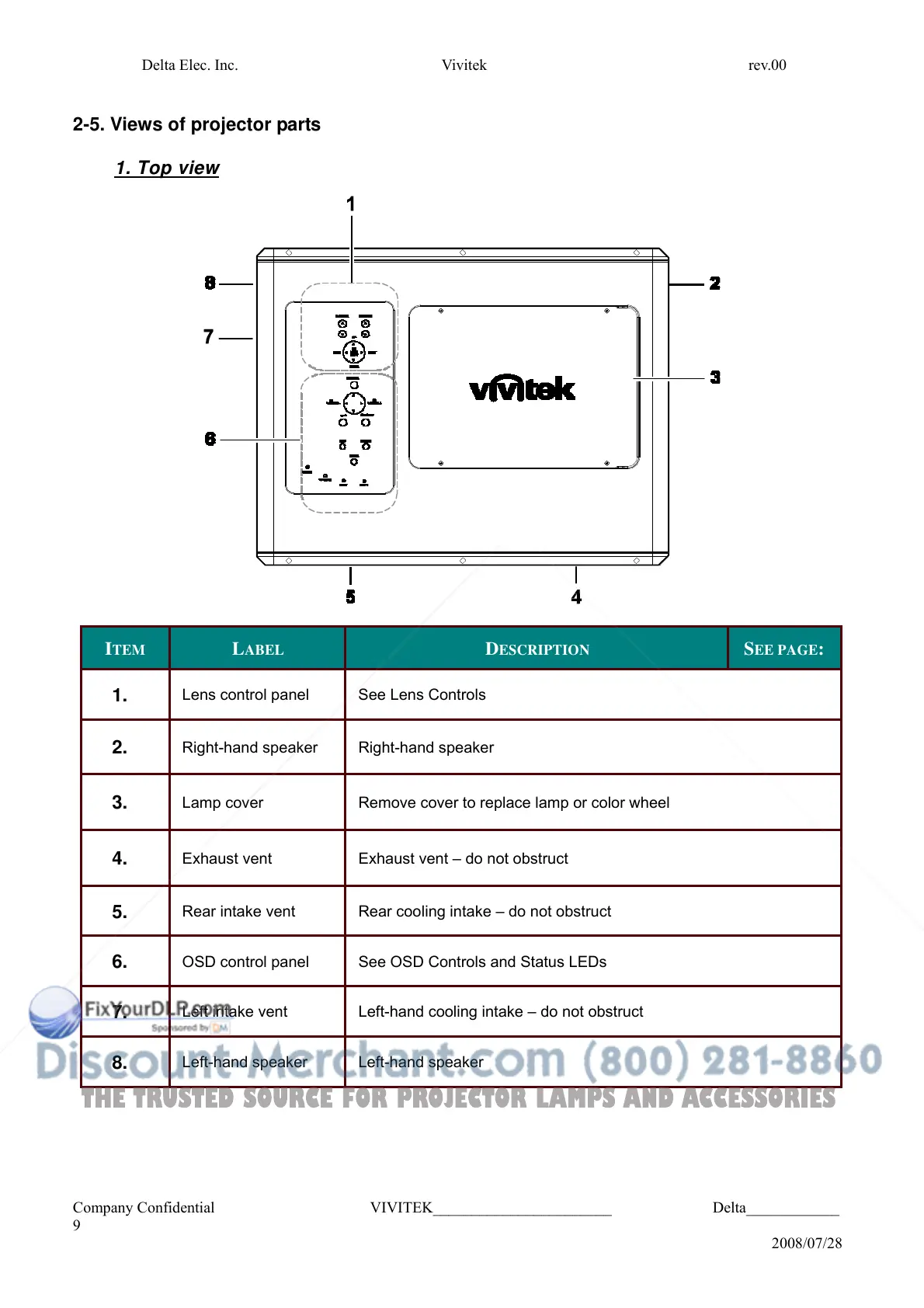

2-5. Views of projector parts
1. Top view
I TEM L ABEL D ESCRIPTION S EE PAGE :
1.
Lens control panel See Lens Controls
2.
Right-hand speaker Right-hand speaker
3.
Lamp cover Remove cover to replace lamp or color wheel
4.
Exhaust vent Exhaust vent – do not obstruct
5.
Rear intake vent Rear cooling intake – do not obstruct
6.
OSD control panel See OSD Controls and Status LEDs
7.
Left intake vent Left-hand cooling intake – do not obstruct
8.
Left-hand speaker Left-hand speaker
