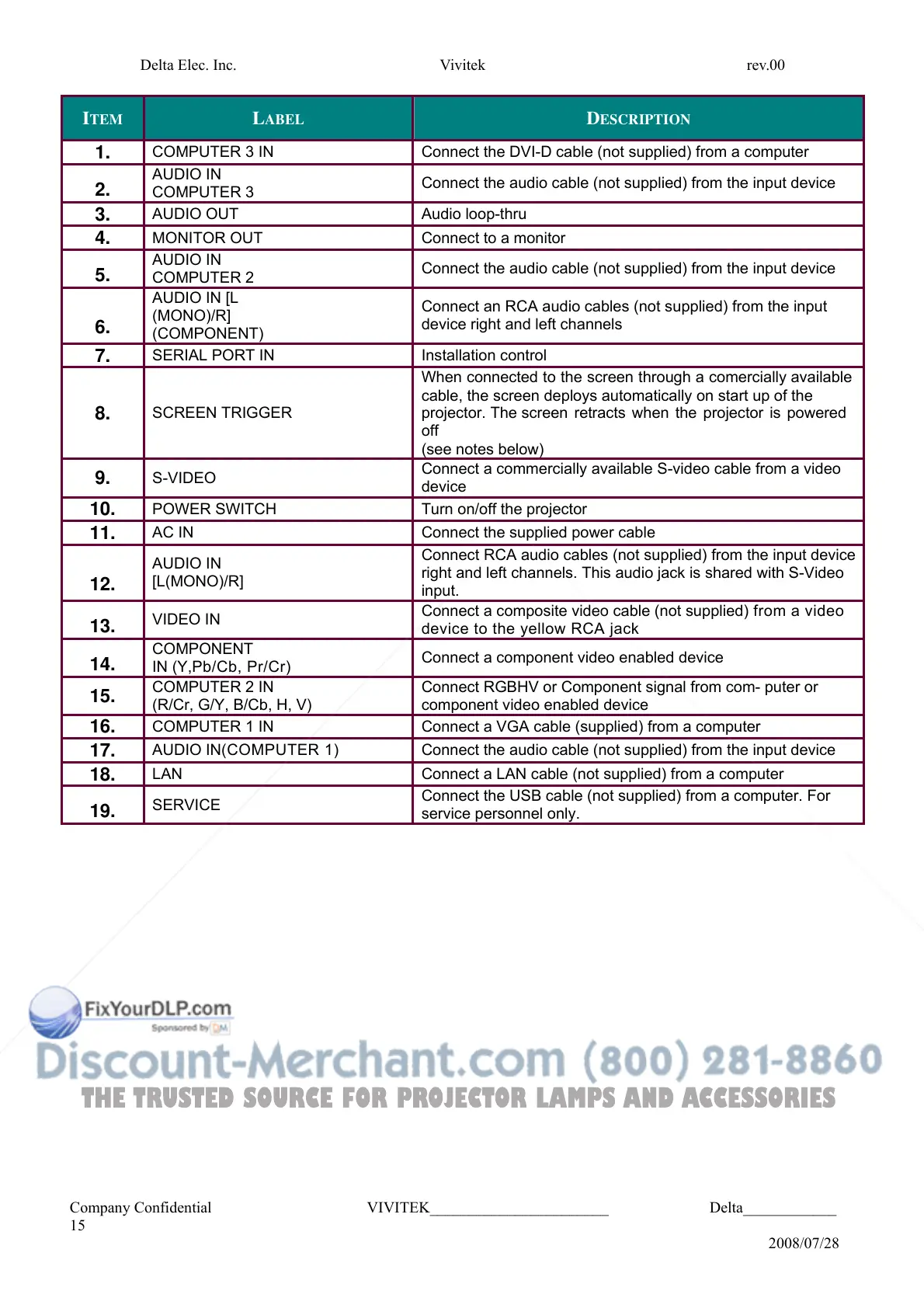

I
TEM
L
ABEL
D
ESCRIPTION
1.
COMPUTER 3 IN Connect the DVI-D cable (not supplied) from a computer
2.
AUDIO IN
COMPUTER 3
Connect the audio cable (not supplied) from the input device
3.
AUDIO OUT Audio loop-thru
4.
MONITOR OUT Connect to a monitor
5.
AUDIO IN
COMPUTER 2
Connect the audio cable (not supplied) from the input device
6.
AUDIO IN [L
(MONO)/R]
(COMPONENT)
Connect an RCA audio cables (not supplied) from the input
device right and left channels
7.
SERIAL PORT IN Installation control
8.
SCREEN TRIGGER
When connected to the screen through a comercially available
cable, the screen deploys automatically on start up of the
projector. The screen retracts when the projector is powered
off
(see notes below)
9.
S-VIDEO
Connect a commercially available S-video cable from a video
device
10.
POWER SWITCH Turn on/off the projector
11.
AC IN Connect the supplied power cable
12.
AUDIO IN
[L(MONO)/R]
Connect RCA audio cables (not supplied) from the input device
right and left channels. This audio jack is shared with S-Video
input.
13.
VIDEO IN
Connect a composite video cable (not supplied) from a video
device to the yellow RCA jack
14.
COMPONENT
IN (Y,Pb/Cb, Pr/Cr)
Connect a component video enabled device
15.
COMPUTER 2 IN
(R/Cr, G/Y, B/Cb, H, V)
Connect RGBHV or Component signal from com- puter or
component video enabled device
16.
COMPUTER 1 IN Connect a VGA cable (supplied) from a computer
17.
AUDIO IN(COMPUTER 1) Connect the audio cable (not supplied) from the input device
18.
LAN Connect a LAN cable (not supplied) from a computer
19.
SERVICE
Connect the USB cable (not supplied) from a computer. For
service personnel only.
